Name: Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,000.00 USD
Availability: InStock

Home > products > Condenser Welding Machine >

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine

Bending Condenser Production Line Machine

Welding Condenser Production Line Machine

Refrigerator Wire Tube Condenser Production Line

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

Model Number:

WL-SQ-150K*2

Request A Quote

Product Details

Product Name:

Refrigerator Wire Tube Condenser Production Line Machine, Welding And Bending Machine

Dimension(L*W*H):

According To Your Product

Weight:

According To Your Product

Core Components:

PLC, Engine, Motor

Warranty:

1 Year

Welding Power Source:

AC / MF DC

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package or PVC Film for FCL

Delivery Time

30 - 45 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding

Get Best Price

Video

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding

Get Best Price

1200mm Water Cooling Condenser Welding Machine with 0.2-0.4MPa Water Pressure

Get Best Price

Video

1.12KW Touch Screen Button Condensation Joining Machine for Metal Tubes

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine is special design production line for condenser. The condenser is made of wires and serpentine bundy tube. The whole line machine includes the following machines:

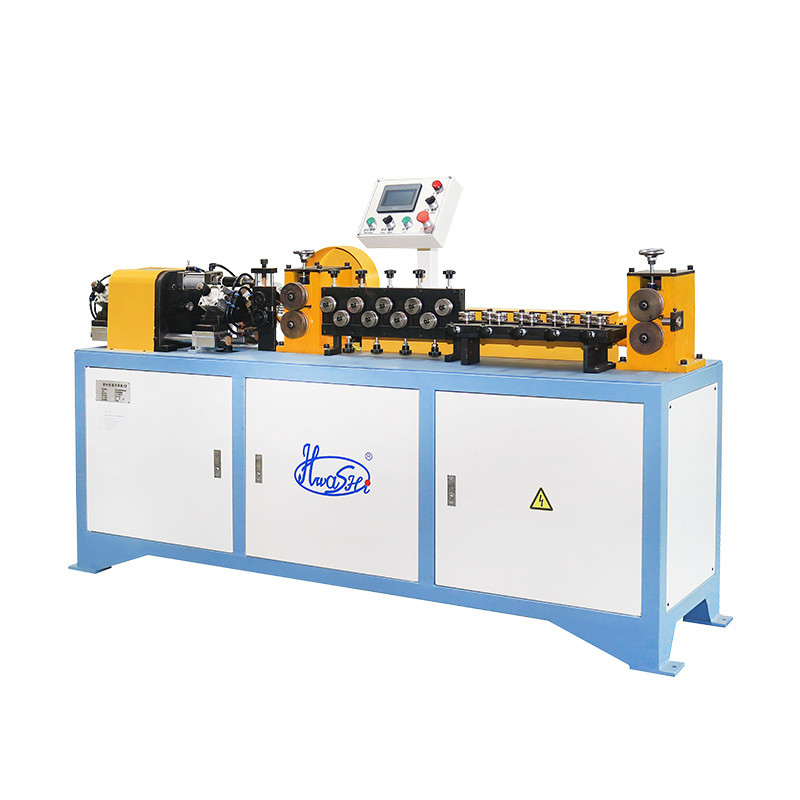

1. High speed wire straightening and cutting machine 2. Tube straightening and cutting machine 3. Tube bending machine 4. Automatic condenser welding machine 5. Other related equipments: tube end expanding/shrinking machine, condenser folding machine, etc.

We can design the complete line according to your product drawings and efficiency requirement. Only you need to send us the product drawings, and output rate requirement, our engineer will come out with the most suitable proposal for you.

Wire Tube Condenser Production Line

Production Process

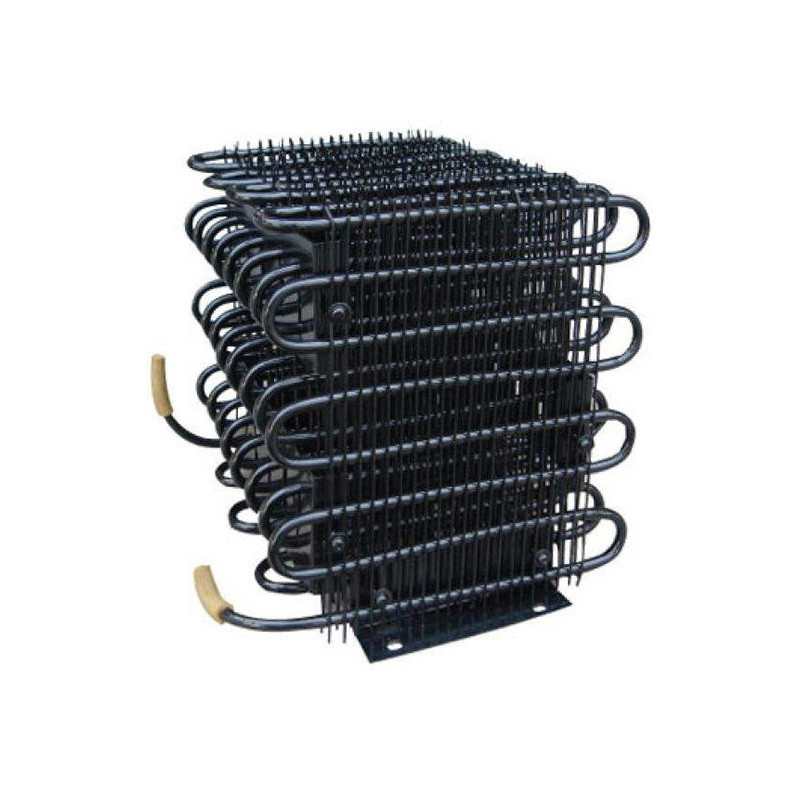

Condenser Sample Information
Wire diameter	1.1-1.5mm
Bundy Tube Diameter	4.76/6.35/8mm
Bundy Tube Radius:	R15/R50/R100
Width range	420-600mm (customized)
Length range	450-1200mm (customized)

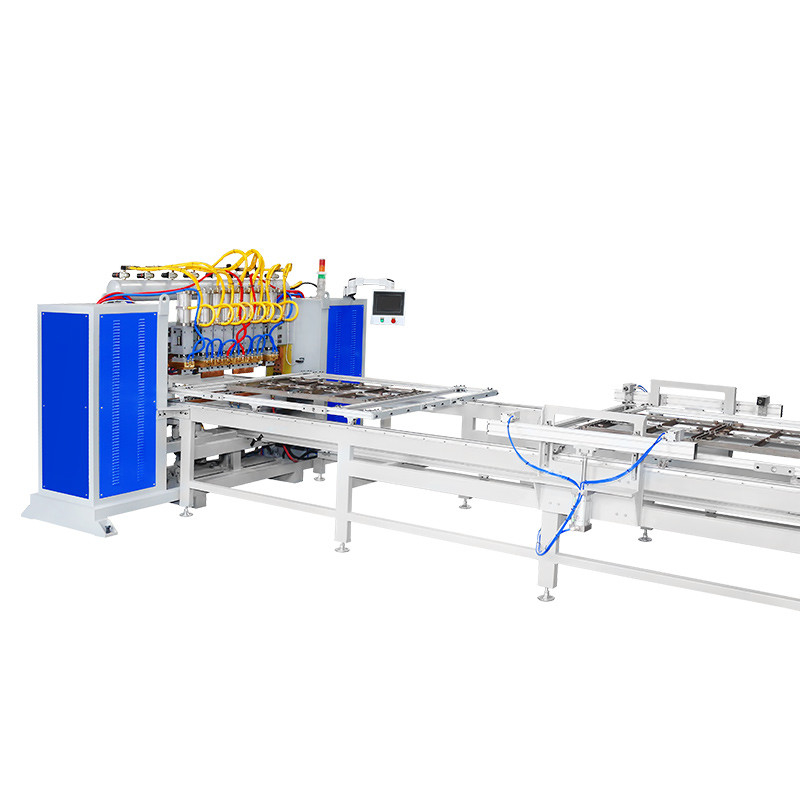

Automatic condenser welding machine

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Intelligent welding control system

Automatic welding by inputting coordinate data of welding position, welding current and other data.

Welding Heads and Fixtures

Processing and design according to the drawings of each condenser product. (customized)

Magnetic Wire Filling Device

Fast and easy wire loading onto the fixture. We need to separate the material loading into three steps. Load the wires at first layer, then load the serpentine tube, at last load the wires again on the tube.

Automatic Double-layer Feeder

When one fixture is under welding process, operator will load the wires and tube onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.

Production Line Composition

Other Machines Related to WOT Condender Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator condenser.
