Name: HWASHI 1.1mm-9mm High Speed Steel Wire Straightening Machine,Automatic Rotary Wire Straightener And Cutting Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: HS-HC-1.1-7
Price: 30,000.00 USD
Availability: InStock

Home > products > Wire Mesh Welding Machine >

HWASHI 1.1mm-9mm High Speed Steel Wire Straightening Machine,Automatic Rotary Wire Straightener And Cutting Machine

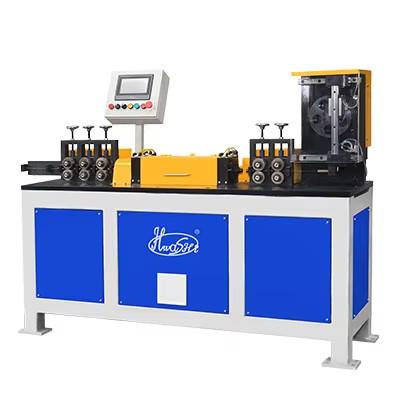

Automatic rotary wire straightening machine

1.1mm-9mm Wire straightening machine

High Speed Steel Wire straightening machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-HC-1.1-7

Request A Quote

Product Details

Product Name:

HWASHI 1.1mm-9mm High Speed Steel Wire Straightening Machine,Automatic Rotary Wire Straightener And Cutting Machine

Application:

Wire Straightening And Cutting

Size:

2000x900x1500mm

Weight (KG):

480

Condition:

New

Warranty:

1 Year

Standard:

CE/CCC/ISO

Service Life:

8-10 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine

Get Best Price

Video

Hwashi Precision XY Mobile Spot Welding Machine,Suitable for Sheet Metal Sheet Efficient Production

Get Best Price

Video

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine

Get Best Price

Video

Hwashi Large Metal Storage Basket Stainless Steel Wire Basket Production Line, Customize Welding Wire Mesh Basket

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Product Application

Our high-speed wire cutting machine combine the advantages of all the machines made in China and abroad. Surface doesn’t have no scratches .Cutting length tolerance is + / - 0.5 mm, the length of the host automatically is adjustable and touch screen control system, and be able to preset the output and material lacking alarm. Compared with the traditional straightening cutting machine efficiency is increased by more than three or four times, at the same time, it is more convenient to adjust and smaller precision. For the production efficiency, save manpower, widely used in straightening and cutting iron wire, stainless steel wire, galvanized steel , aluminium wire and other metal wire. The device structure is reasonable, stable and reliable, simple operation, high degree of automation, one operator can manage several machines at the same time, greatly improve the production efficiency, is the hardware, network cable and other manufacturers must be special equipment.

Feature

Man-machine integrated operation interface, simple operation Adopt tungsten steel die as wire roller, with high durability and no scratches on the wire surface. Servo wire feeding and flying shear structure, high wire feeding and cutting precision, small error. High efficiency, 3 to 4 times higher than the traditional straightening and opening machine

Sufficient Stock Machine

We have more than 100 sets of machine in stock. We can deliver the machines within 1 week after you confirming the order.

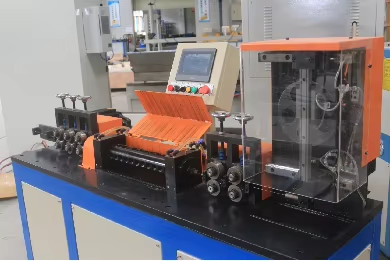

Reasonable Rotary Straightening Structure

Reliable and stable straightening and cutting structure. Easy to maintain. Only need to input the cutting length, then machine will run automatically.

Horizontal Decoiler

Suitable for small wire coil within 1.5mm. Be able to load about 300kg wire coil.

1 Ton Motor Type Decoiler

Suitable for wire coil more than 2mm. Driven by motor. Match with high speed wire cutting machine

Holding Tray Picture

Model	HS-HC-1.1-1.5	HS-HC-1.6-3	HS-HC-2-4	HS-HC-3-5	HS-HC-5-7
Input Power	AC380V(50Hz/60Hz)
Suitable Wire Material	Normal low carbon steel wire/stainless steel wire/galvanized steel wire/copper coated steel wire
Air Pressure	0.5-0.6Mpa
Wire Diameter	1.1-1.5mm	1.6-3mm	2.0-4.0mm	3.0-5.0mm	5.0-7.0mm
Cutting Length	50-5000mm
Max. Cutting Speed	Max. 350pcs/min	Max. 250pcs/min	Max. 250pcs/min	Max. 230pcs/min	Max. 200pcs/min
Wire Speed	110m/min	100m/min	90m/min	80m/min	70m/min
Price (FOB Shenzhen)	USD10000	USD10500	USD11000	USD11500	USD12000
Decoiler	300kg (without Motor)		USD 7**
	500kg(without Motor)		USD 1***
	1 Ton (with Motor)		USD 1***
	2 Ton (with Motor)		USD 2***
Cutting Precision	±0.5mm (except for accelerate and decelerate)
Operation System	PLC Touch Screen
Running Mode	Automatic
