Name: HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx2
Price: 30,000.00 USD
Availability: InStock

Home > products > Wire Mesh Welding Machine >

HWASHI Automatic Wire Mesh Panel Cage Welding Making Machine Line For Welded Wire Mesh

Automatic Panel Cage Welding Machine

Wire mesh Cage Welding Making Machine

Panel Cage Welding Making Machine Line

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160Kx2

Request A Quote

Product Details

Product Name:

Spot Welding Machine 10 Hot Product Machinery Engine Parts Provided Hwashi Steel Wire /mesh Rod Welding Machine, Automatic Grid

After-sales Service Provided:

Service Machinery Overseas

Output Voltage:

12V

Effective Welding Width:

600-1000mm (customized)

Feeding Rack Mobile Speed:

0.5m/sec

System Controller:

PLC+touch Screen

Transformer:

MF DC Transformer

Certification:

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine

Get Best Price

Video

Hwashi Precision XY Mobile Spot Welding Machine,Suitable for Sheet Metal Sheet Efficient Production

Get Best Price

Video

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine

Get Best Price

Video

Hwashi Large Metal Storage Basket Stainless Steel Wire Basket Production Line, Customize Welding Wire Mesh Basket

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

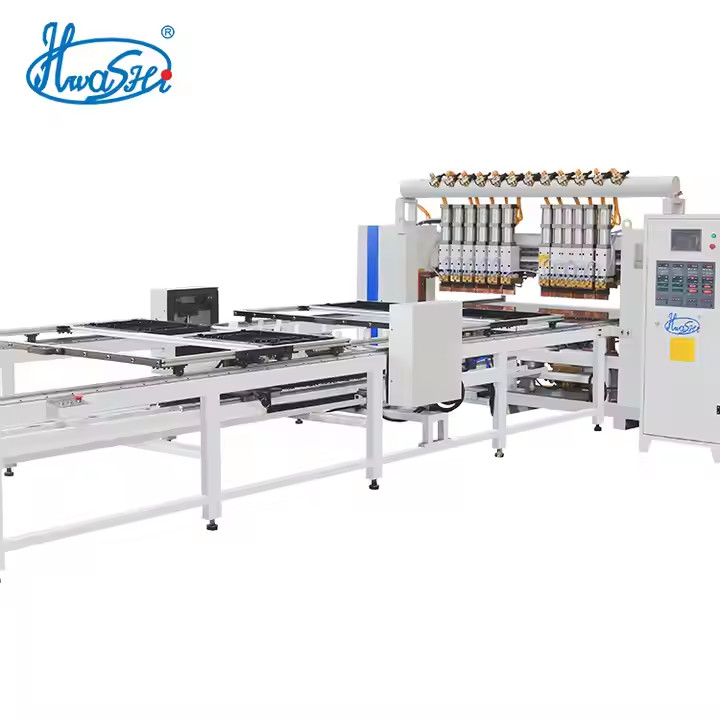

HWASHI Automatic Wire mesh Panel Cage Welding Making Machine Line for Welded Wire Mesh

wire welding machine adopts a single-head long arm type welding structure, equipped withwork piece molds that move along the X and Y axis automatically. Input coordinatedata ofwelding position, welding current and other data to realize autormatic welding.Just need to load the material manually and take out the work piece. lt is suitable for the welding ofthe mesh with in the range of 1000mm X 1000mm.

Specification

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	1-5mm
Warranty	1 years
Mesh Welding Range	1000mm X 1000mm

Production Line Machines

Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
