Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Machine, Automatic Sheet Metalwelder for Squatrack

Galvanized Panel Sheet Metal Welder

Sheet Metal Custom Spot Welder

Automatic Sheet Metal Welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Product Name:

Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Machine, Automatic Sheet Metalwelder For Squatrack

Warranty:

12 Months

Condition:

New

Service Life:

8-10 Years

Power (Kw):

160kvax2

Frequency:

1000Hz

Max.Welding Thickness:

2+2mm

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Manual Handheld Spot Welding Machine For Elevator Door Plate Crank Arm

Get Best Price

Video

HWASHI XY Sheet Metal Spot Welding Machine Medium Frequency DC Controlled Welding

Get Best Price

Video

High Precision Sheet Metal Welder Aluminum Plate Spot Welding Machine

Get Best Price

Video

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

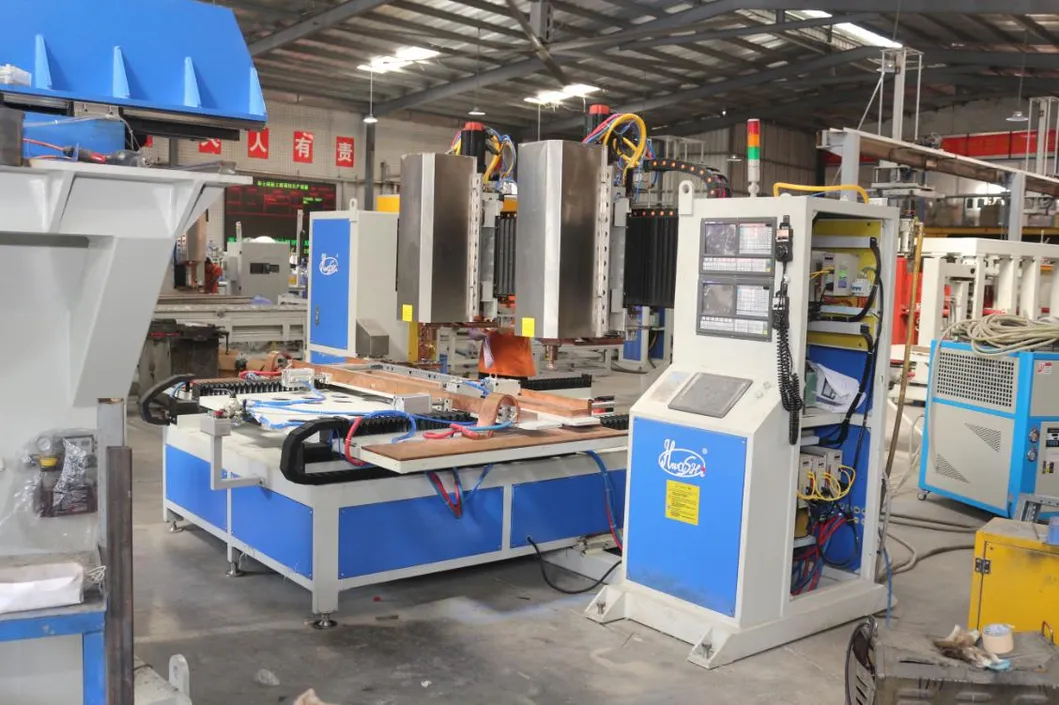

Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Machine, Automatic Sheet Metalwelder for Squatrack

Product Description

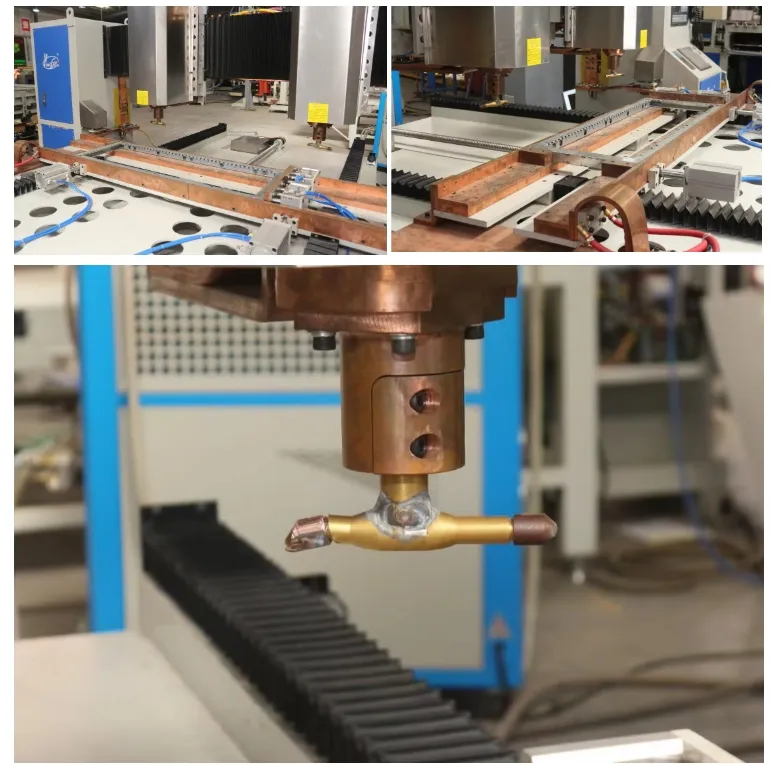

This machine is customized according to your welding requirement and your product specifications. The machine adopts two sets of welding mechanism through the CNC servo system, including X direction mobile welding, Y direction of the table movement, through the XY direction to achieve welding of different positions. Welding mechanism can also Z direction lifting and A direction rotation, with CNC system to control seven asix to achieve the movement of different positions for the welding mechanism.

Features

The equipment welding power supply adopts medium frequency inverter power supply. The equipment can realize the automatic welding production of the workpiece, automatically move and weld according to the position set by the program, and the operator only needs to manually load and unload the product. The equipment improves the product quality and production efficiency, reduces the production cost, solves the defects such as the unstable quality of manual work and low production efficiency, and the production efficiency and automation degree are high.

Applications

Mainly used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be or inconveniently welded by general fixed welders. It is widely used in industries such as automobiles, civil sheet metal, anti-theft doors, cabinets, and household appliances.

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out withthe suitable technical proposal based on your samples or drawings.

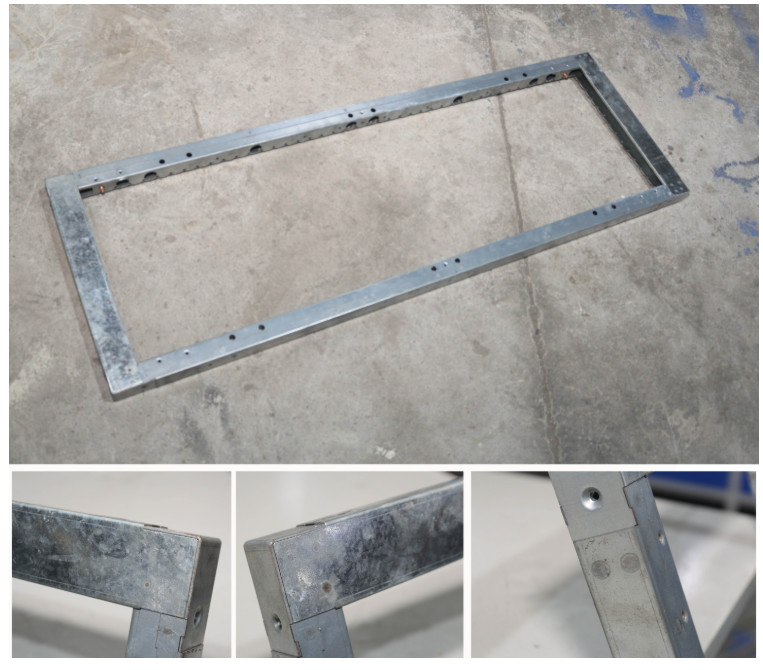

Welding Sample and Effect

Solder joints firm with conslstent effect

NO	ITEM	PARAMETER
1	Rated Power	120KVA*2
2	Duty Cycle	50
3	Frequency	1000HZ
4	Effective welding length	1200mm
5	Effective welding width	2200mm
6	Welding Driving Power	Servo System
7	Max. Moving Speed	500mm/s
8	Machine Dimension	L3800mm*W2600mm
9	Rated Air Pressure	0.6MPa
10	Water Temperature	10-25
