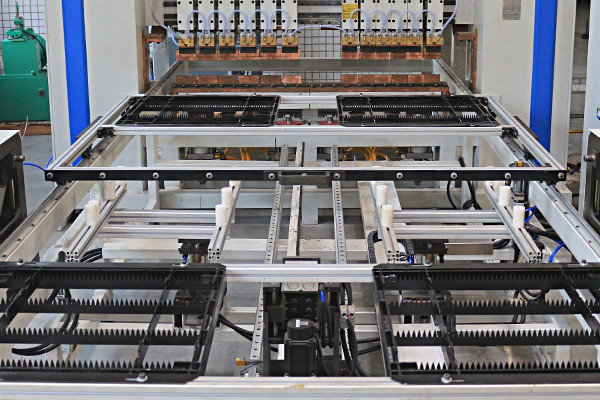

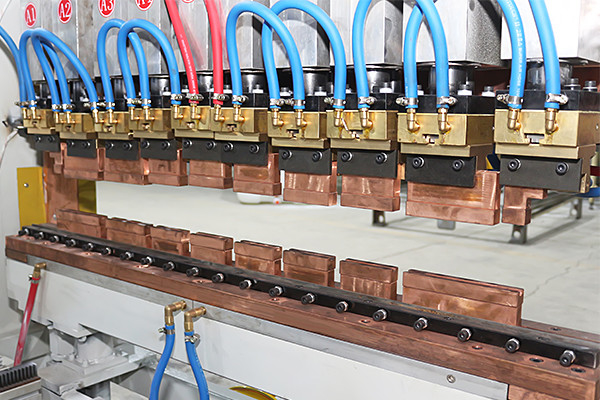

Name: Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-250K
Price: 30,000.00 USD
Availability: InStock

Home > products > Wire Mesh Welding Machine >

Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

Model Number:

WL-SQ-250K

Request A Quote

Product Details

Mesh Size:

50-200mm

Welding Speed:

High Speed

Operation Mode:

Automatic/Manual

Mesh Shape:

Wire Basket，basket Mesh

Wire Diameter:

0.2-2.5mm（According To Power）

Control System:

PLC Control

Power Capacity:

High Capacity

Product Name:

Wire Basket Mesh Welding Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$10000-$50000

Packaging Details

wooden box

Delivery Time

30-60 days

Payment Terms

T/T, L/C

Supply Ability

10 sets/month

Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine

Get Best Price

Video

Hwashi Precision XY Mobile Spot Welding Machine,Suitable for Sheet Metal Sheet Efficient Production

Get Best Price

Video

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine

Get Best Price

Video

Hwashi Large Metal Storage Basket Stainless Steel Wire Basket Production Line, Customize Welding Wire Mesh Basket

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi Swinq BaseWire Frame Welding Machine Iron Wire Row Welding Machine

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine

Product Description According to the specification provided by our customer, we adopt the design of single-electrode X, Y axis automatic mobile type welding machine which can be matched with different welding fixtures. The operator only needs to input the parameters like the coordinate data and welding current, then the machine will conduct automatic welding after start. Workers only need to put and take the work piece manually. This machine is of simple structure which will make the assembly very easy. It also can be matched with different welding equipment. The servo motor will drive the X and Y axis to run within the preset PLC programming. It can max store 5000 welding spots. This machine is suitable for batch welding of Sheet Metal.

Features

The Welding spots are good in looking, firm, and stable and reliable. Well consistency of welding spots. Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes. Design Working Life: 8-10 years

Functions Options Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.

Items	Data
Cable Requirent	Three-phase 380V/50mm²/160A
Rated Capacity	100KVA*2
Duty Cycle Rate	50
Frequency	1000HZ
Control Heat Adjusting Range	15%99%
Max. Output Voltage	DC7.8V
Secondary Max. Short Circuit Current	20KA
Program Section Time Adjusting Range	0999ms
Welding Schedule	32 types

Features:

Product Name: Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine
Weight: 500-1000KG
Welding Accuracy: High Accuracy
Welding Speed: High Speed
Wire Diameter: 0.2-2.5mm (According To Power)
