Name: Hwashi Ei Lamination Transformer Automatic TIG Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-YZ-1500
Price: 1.00 USD
Availability: InStock

Home > products > MIG Tig Welder >

Hwashi Ei Lamination Transformer Automatic TIG Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-YZ-1500

Request A Quote

Product Details

Size::

1500*300*1300mm

Weight::

300 Kg

Condition::

New

Service Life: 8:

-10 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

wooden case

Delivery Time

7 days

Supply Ability

50 sets per month

Panasonic Automatic MIG welder , Steel Rould Pot Automatic Welding Machine

Get Best Price

Video

Mig Tig Welding Machine , Automatic Straight Seam Welder for Pipe/ metal products

Get Best Price

Video

HWASHI TIG Welding Automatic Straight Seam Welding Machine

Get Best Price

Video

Reliable Performance Straight Seam Wedling Machine with Large Size

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

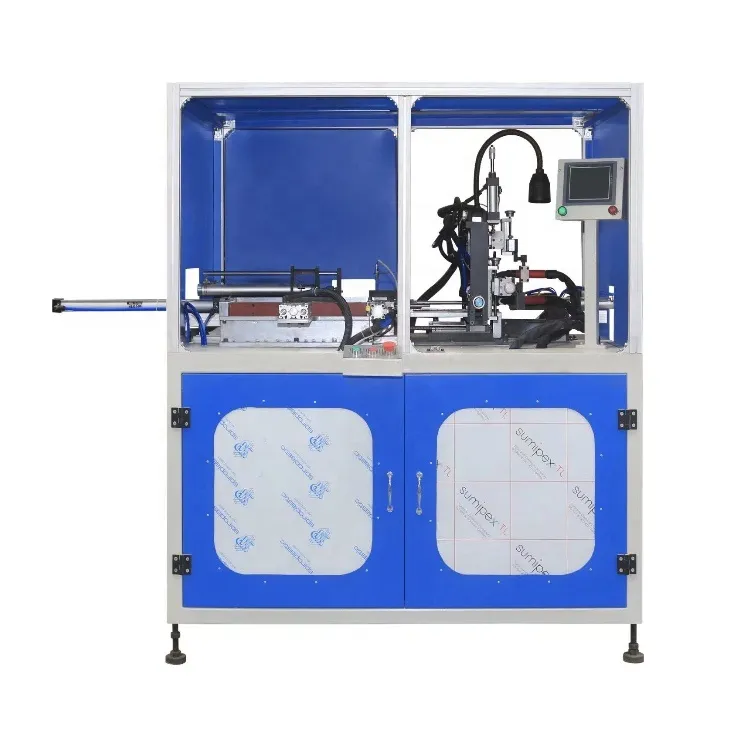

HWASHI EI Lamination Transformer Automatic TIG Welding Machine

Product Application

The machine is designed as automatic assembly welding for transformer E, I pieces assembly. After clamping by the cylinders and being fixed, the welding gun will enter into welding area at constant speed under the effect of servo motor. Then the welding gun will finish the welding process. In order to achieve higher automatic, we designed the machine with feeding and discharging conveyer belt. It can help to save more labor force and increase production rate.

This proposal is the upgraded version for welding this product. It is designed to use servo motor as the driving force for welding gun. The advantage is: more stable, simple maintenance, easier to control the speed. Disadvantage: more accuracy requirement to the mechanical driving position.

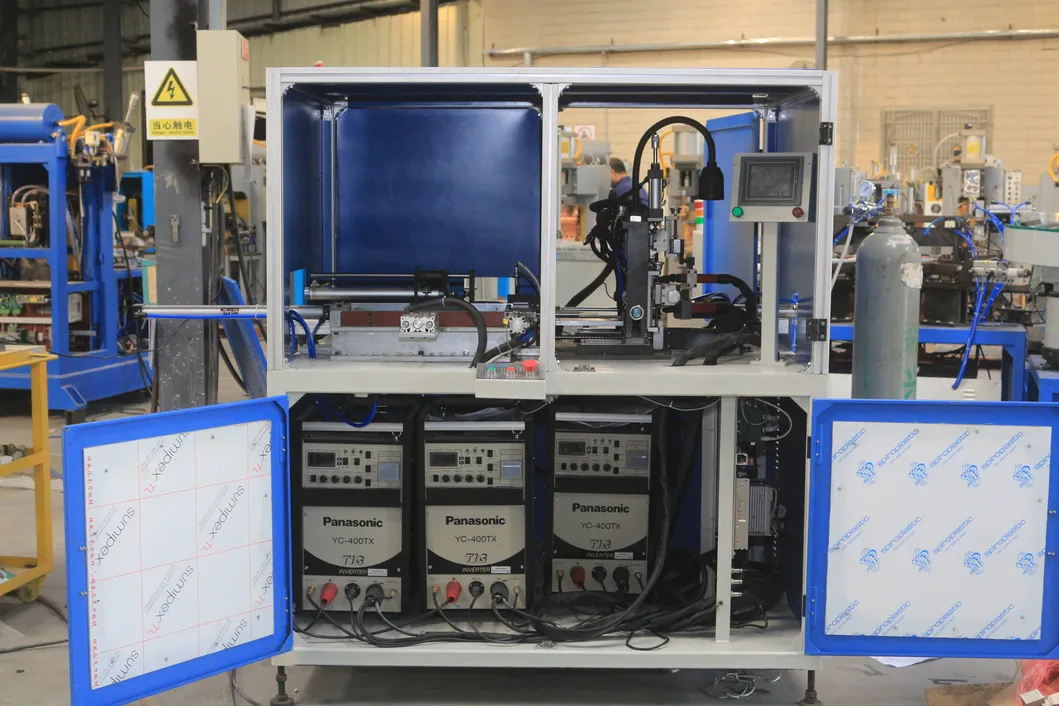

Welding Power Source

Adopt 3 sets of Japan Panasonic YC-400TX TIG welder as the welding power source with stable and good welding quality. (or other brand as you request)

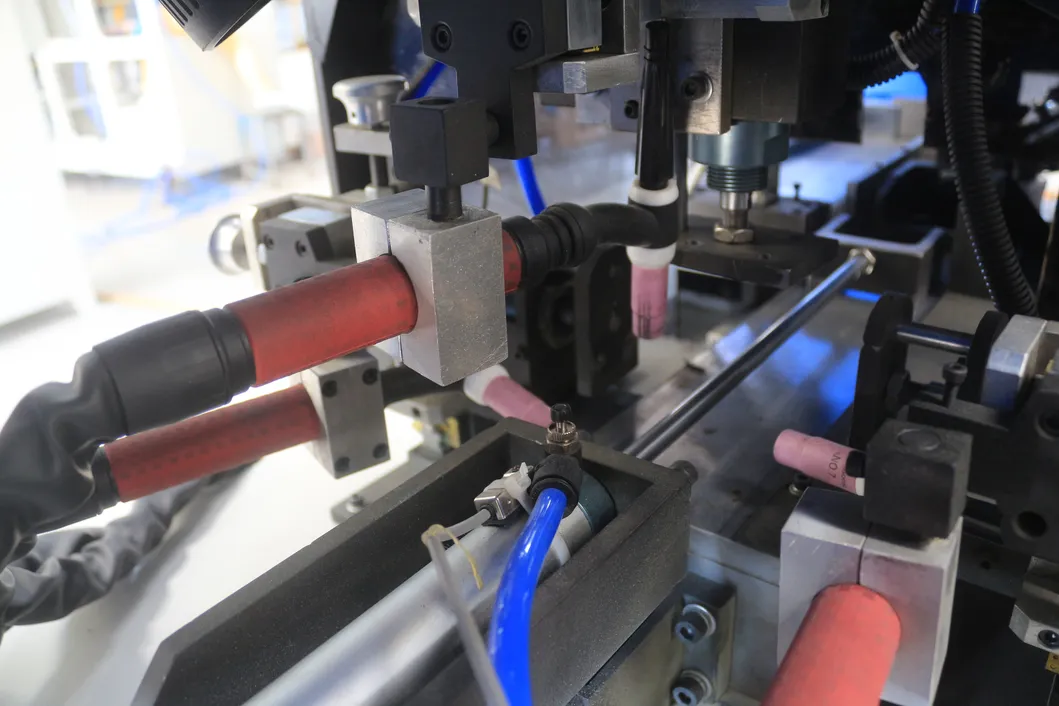

Servo Drive Automatic Moving Welding Gun

The welding gun will be driven automatically to complete the straight seam welding on the EI lamination core. The number of the gun required depends on the product.

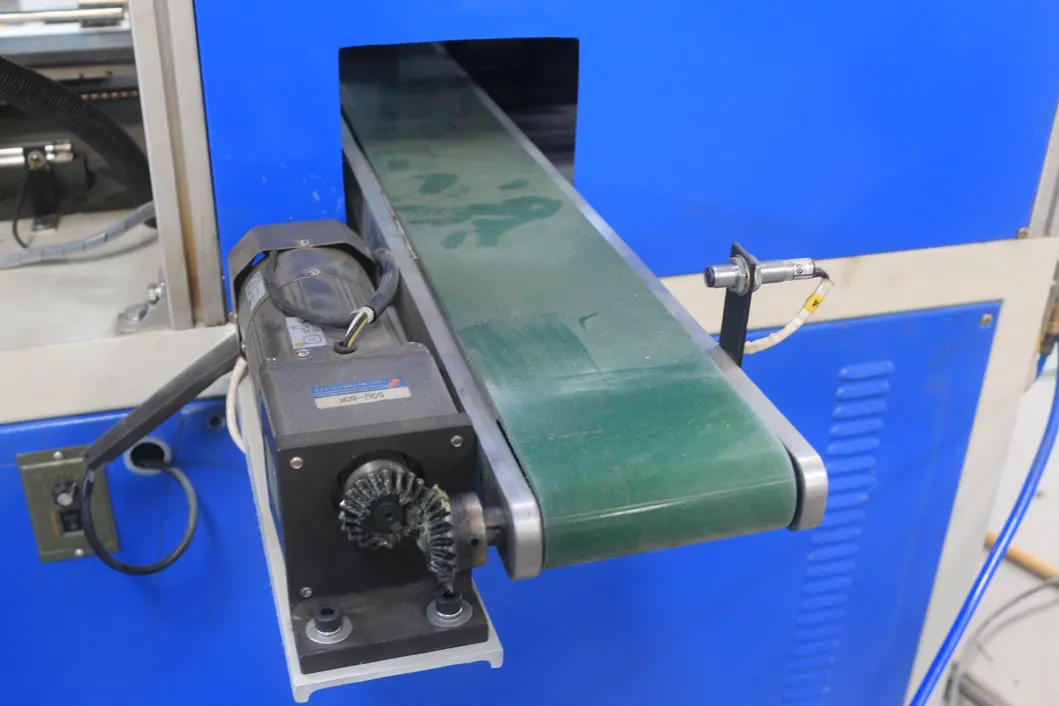

Automatic Loading and unloading Conveyor

The product will be loaded to the welding position automatically. And after welding, the product will be pushed back and unloaded automatically. So as to achieve full automatic process and save labor force.

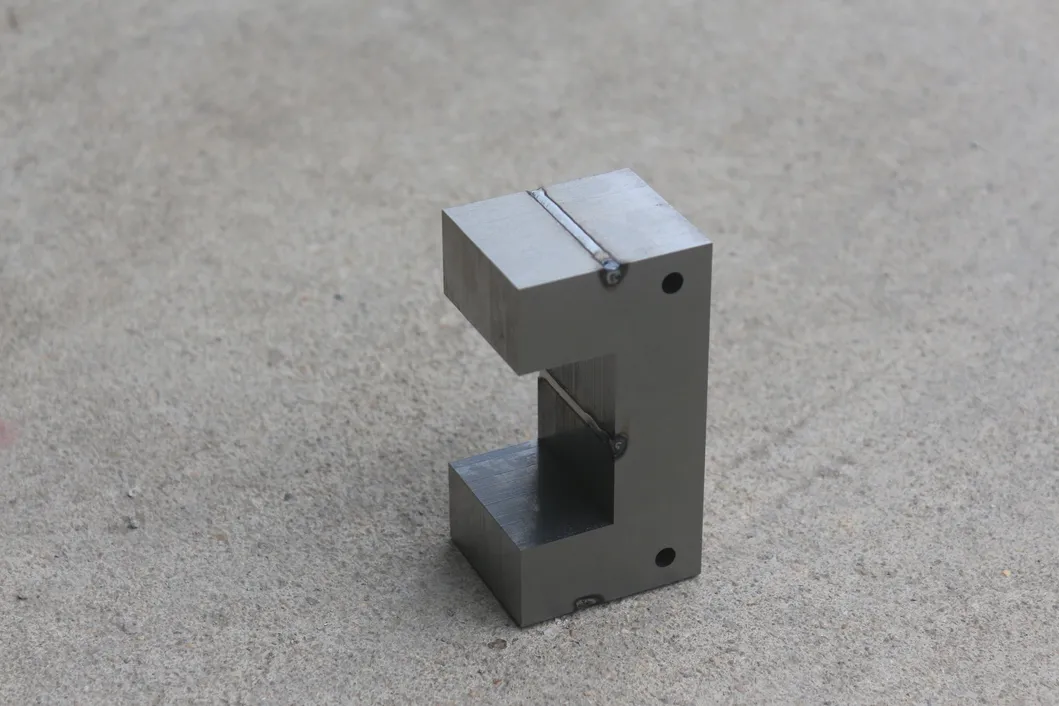

Final EI Lamination Core Sample

There are three welding seams. One time welding with high efficiency. Stable welding quality. No need experienced welding operator. Save labor cost.

No.	Items	Data
1	TIG Welder Number	2-3 (as per product drawing)
2	Welding Gun Moving Distance	18-120mm (as per product drawing)
3	Cylinder Types	3 (horizontal, vertical, upper clamping)
4	Feeding Conveyor Length	1200mm
5	Welding Speed	10mm/sec
