Name: Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-MF-100K/120K/160K
Price: 375,000.00 USD
Availability: InStock

Home > products > Sheet Metal Welder >

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Door Plate Sheet Metal Welder

Mobile Type Spot Welding Machine

Stainless Sheet Spot Welding Machine

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

Model Number:

WL-SF-MF-100K/120K/160K

Request A Quote

Product Details

Product Name:

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Dimension(L*W*H):

2500x1200x1950mm

Weight:

800KG

Usage:

Welding Of Steel Panel

Warranty:

1 Year

Transformer:

MF DC Transformer

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package

Delivery Time

20 - 30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

Get Best Price

Video

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Get Best Price

Video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Get Best Price

Video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Machine, Automatic Sheet Metalwelder for Squatrack

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

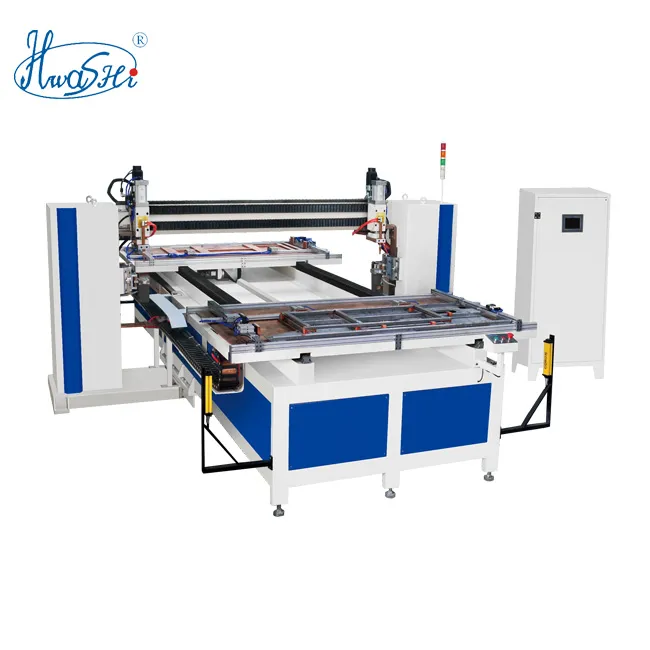

Hwashi Security Stainless Sheet Door Plate Multi-point Automatic Mobile Type Spot Welding Machine,Sheet metal welder

CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel, we suggest to choose the MF DC power due to the long distance welding. Lower electrode adopts full flat locating method, moving along with the Y-axis direction; The left and right side of platform has been equipped with one electrode respectively, and it will move along with the X-axis; Each welding head is equipped with one set of welding power source arranged in a straight line. After loading the work piece, start welding. The platform moves along with the Y-axis direction to the welding position as per preset position program. Then the welding heads move from both sides toward middle and weld this row. After welding this row, moves in Y-axis direction to another row. In the meantime, both sides of the platform work circularly until complete the welding.

CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel can complete loading and fixing the work piece at one time; It can automatically move and weld as per preset location; Electrodes can automatically enter grinding system to repair and maintain the electrodes; It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost. It solves the unstable quality and low production efficiency defect caused by manual job; The maximum flat table size is 1500 x1500mm.(customized)

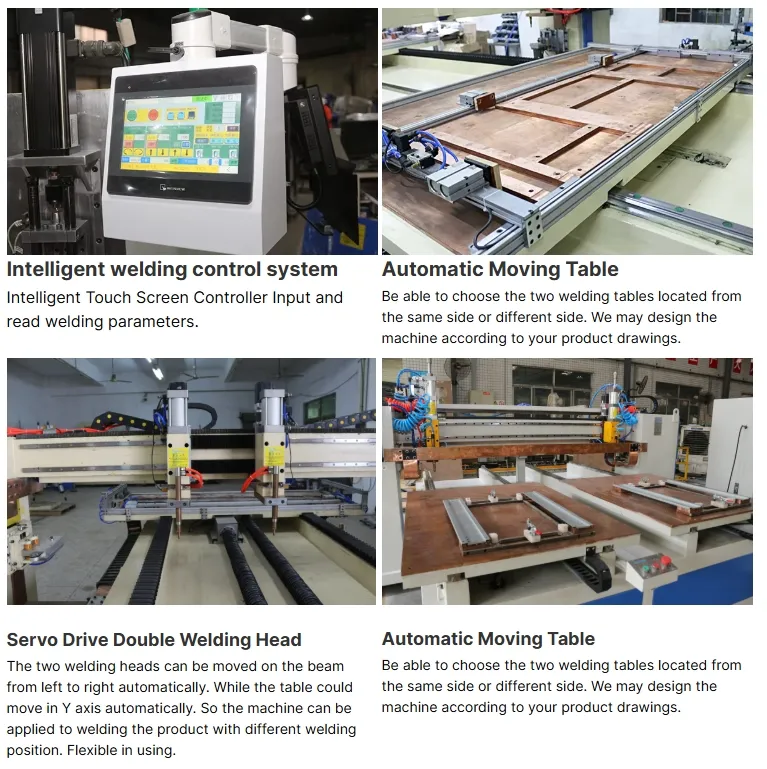

Automatic Moving Table

Be able to choose the two welding tables located from the same side or different side. We may design the machine according to your product drawings.

S.N	Items	WL-AT-MF 15
1	Input Voltage	380v,3-Phase
2	Input Power	160KVAx2
3	Max.Welding Current	32000 Ax2
4	Welding Specification	32 Kinds
5	Different Welding Current	5000
6	Effective Size Of Welding Platform	1500mmx1500mm
7	X Axis Effective Width	750 mm
8	Y Axis Effective Length	1500 mm
9	X Axis Servo Motor	2 Sets
10	Y Axis Servo Motor	2 Sets
11	Feeder Moving Speed	800 mm/sec
12	Servo Motor Power	450 W
13	Welding Cylinder	2 NO.(80x50mm)
14	Upper Welding Electrode	2 Sets
15	Lower Electrode	full flat table
