Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Squatrack Sheet Metal Welder

7axis Sheet Metal Welder

Automatic Spot Welding Sheet Metal Welder

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

CE

Model Number:

WL-SF-MF-100K/120K/160K

Contact Us

Request A Quote
Product Details
Product Name:
Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine For Squatrack
Dimension(L*W*H):
2500x1200x1950mm
Weight:
800KG
Usage:
Welding Of Steel Panel
Warranty:
1 Year
Transformer:
MF DC Transformer
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Sea worthy wooden package
Delivery Time
20 - 30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

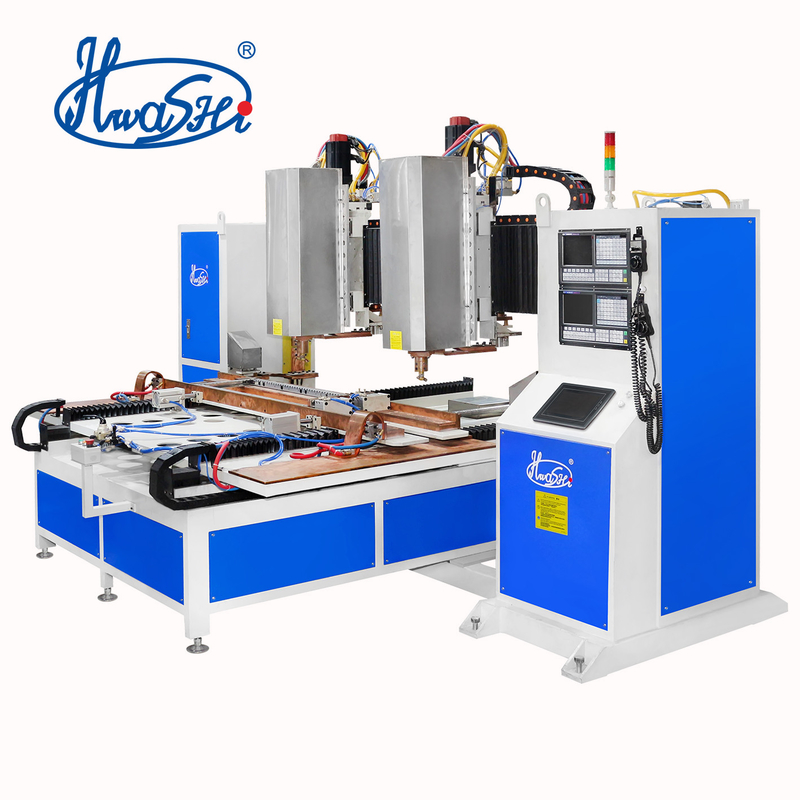

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack 0

Product Description

This machine is customized according to your welding requirement and your product specifications. The machine adopts two sets of welding mechanism through the CNC servo system, including X direction mobile welding, Y direction of the table movement, through the XY direction to achieve welding of different positions. Welding mechanism can also Z direction lifting and A direction rotation, with CNC system to control seven asix to achieve the movement of different positions for the welding mechanism.

Features

The equipment welding power supply adopts medium frequency inverter power supply. The equipment can realize the automatic welding production of the workpiece, automatically move and weld according to the position set by the program, and the operator only needs to manually load and unload the product. The equipment improves the product quality and production efficiency, reduces the production cost, solves the defects such as the unstable quality of manual work and low production efficiency, and the production efficiency and automation degree are high.

Applications

Mainly used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be or inconveniently welded by general fixed welders. It is widely used in industries such as automobiles, civil sheet metal, anti-theft doors, cabinets, and household appliances.

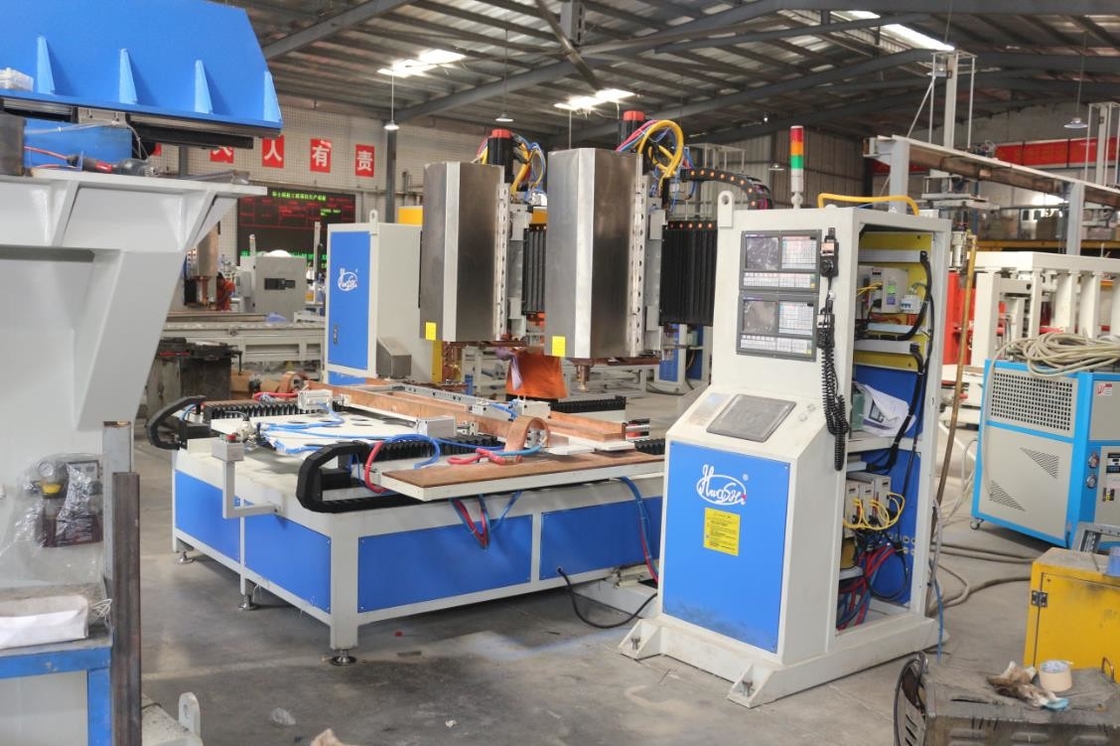

Machine Detailed Pictures
Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack 1


Specification
S.N
Items
WL-AT-MF 15
1
Input Voltage
380v,3-Phase
2
Input Power
160KVAx2
3
Max.Welding Current
32000 Ax2
4
Welding Specification
32 Kinds
5
Different Welding Current
5000
6
Effective Size Of Welding Platform
1500mmx1500mm
7
X Axis Effective Width
750 mm
8
Y Axis Effective Length
1500 mm
9
X Axis Servo Motor
2 Sets
10
Y Axis Servo Motor
2 Sets
11
Feeder Moving Speed
800 mm/sec
12
Servo Motor Power
450 W
13
Welding Cylinder
2 NO.(80x50mm)
14
Upper Welding Electrode
2 Sets
15
Lower Electrode
full flat table
