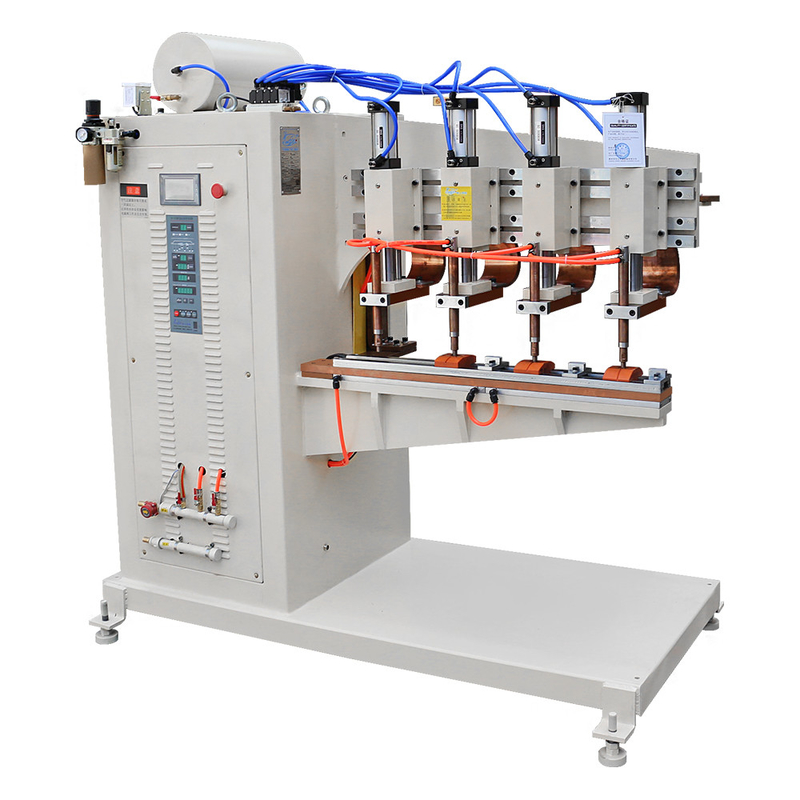

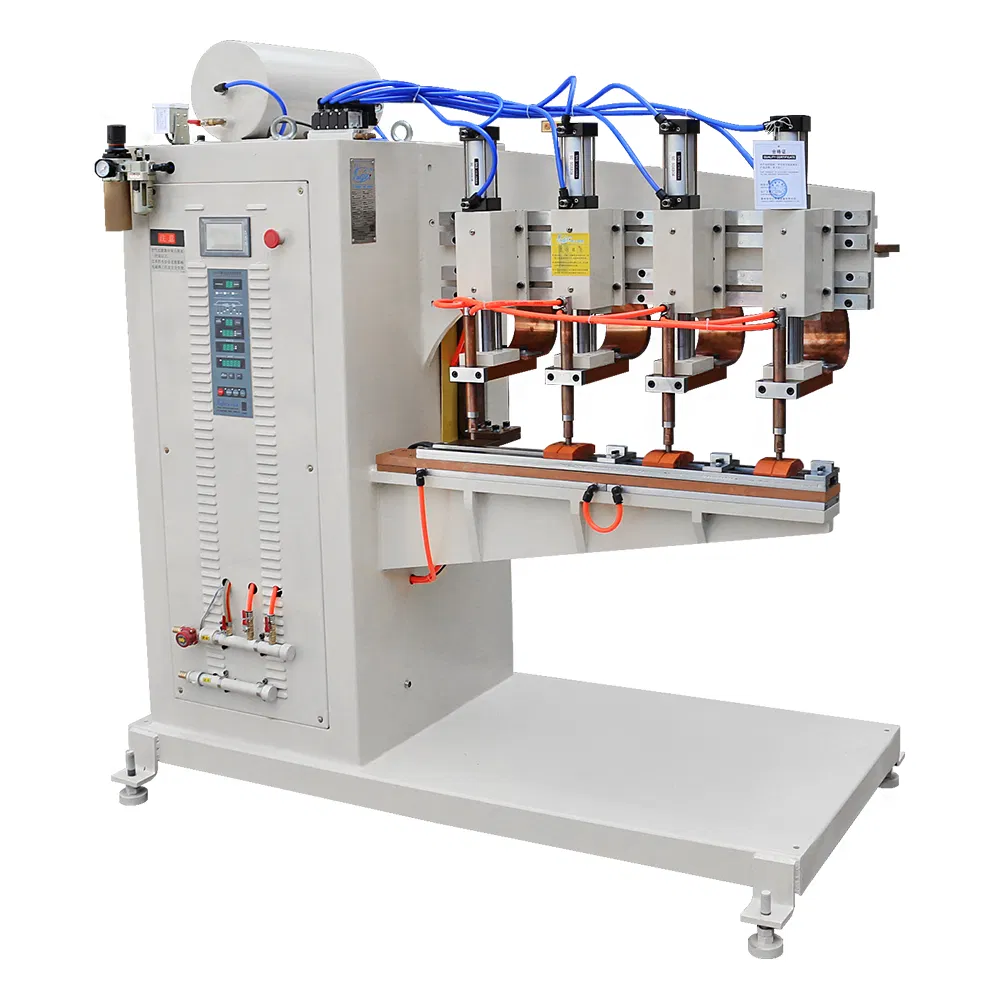

Name: Hwashi Tomato Bracket / Rack Wire Welding Machine, Tomato Support Cage Wire Welders
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 30,000.00 USD
Availability: InStock

Home > products > Wire Mesh Welding Machine >

Hwashi Tomato Bracket / Rack Wire Welding Machine, Tomato Support Cage Wire Welders

Tomato Bracket Welding Machine

Rack Wire Welding Machine

Tomato Support Cage Wire Welders

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

Model Number:

WL-SQ-150K*2

Request A Quote

Product Details

Product Name:

Hwashi Tomato Bracket / Rack Wire Welding Machine, Tomato Support Cage Wire Welders

Dimension(L*W*H):

According To Your Product

Weight:

According To Your Product

Core Components:

PLC, Engine, Motor

Warranty:

1 Year

Welding Power Source:

AC / MF DC

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package or PVC Film for FCL

Delivery Time

30 - 45 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi High-Performance Wire Mesh Welding Machine for Your Industrial Requirements

Get Best Price

Video

Hwashi Wire Mesh Welding Machine Elevate Production Efficiency

Get Best Price

Video

Hwashi Best price welded wire mesh,towel rail automatic welding wire machine prices,Small row welding machineWelding Wire Machine Wire Mesh Towel Rail Small Row

Get Best Price

Video

Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine for Shopping cart

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi Tomato Bracket / Rack Wire Welding Machine, Tomato Support Cage Wire WeldersProduct Description

Under the operation of transformer, pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.

Hwashi Tomato Bracket / Rack Wire Welding Machine, Tomato Support Cage Wire Welders 0

Features

1. Silicon Controlled: Adopt the , IXYS from West Germany or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.

2.Pneumatic Control System:Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.

3. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good performance in permeability and electrical conductivity; Less consumption of electricity, the contribution of our welding machine is 15% higher than the other machines of the same quality from the same industry. Be able to weld the metal plates like 8mm+8mm low-carbon steel.

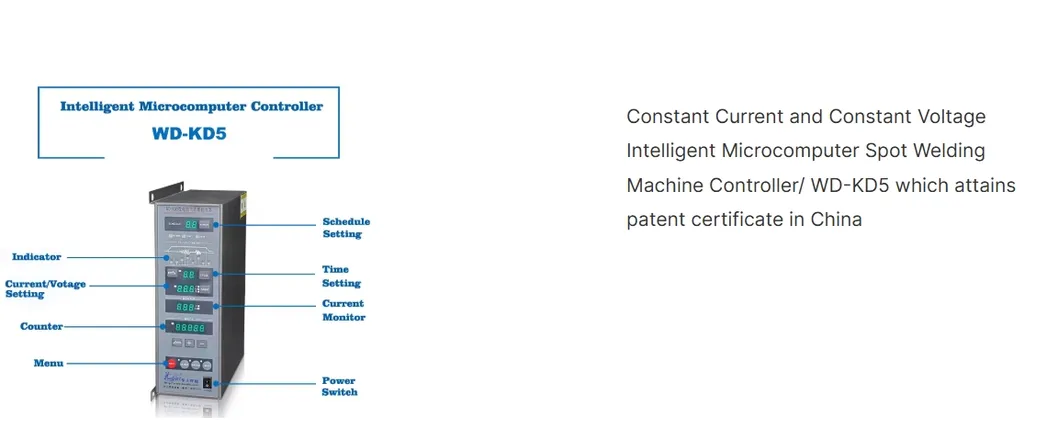

4.Controller:

Hwashi Tomato Bracket / Rack Wire Welding Machine, Tomato Support Cage Wire Welders 1

BASIC CHARACTERISTICS:
a.Three control functions: constant primary and secondary current, constant voltage;
b.Automatic adjustment of welding power and welding current;
c.Ensure the automatic cycle of each program segment of welding process in order to achieve complete automation;
d.When the current is too low, it will automatically electrify to conduct repair welding;
e.Be able to use the control panel to set parameters for different welding models directly. Convenient operation, easy adjustment;
f.Both single welding and continuous welding are available and each welding cycle has three welding conditions;
g.The intensity and time of welding current of each welding condition could be set separately. In the meantime, the current could be set to gradual up or down;
h.Pneumatic control (action output); the pneumatic control could be delayed;
i.Be able to store 9 types of welding models. Be able to select and adjust different welding models by choosing the number of models;
j.Silicon controlled adopts phase shift to trigger and the synchronous voltage is from the network voltage to ensure the silicon controlled and network will conduct synchronous phase shift trigger so as to achieve precise adjustment of the welding current and to meet the requirement of welding different materials;
k.When the network voltage fluctuates, the automatically compensation can make the welding current more stable. Thus, the welding quality could be guaranteed even though the network voltage is under bad situation.

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out withthe suitable technical proposal based on your samples or drawings.
