Name: Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-FS-75K
Price: 4.00 USD
Availability: InStock

Home > products > Seam Welding Machine >

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

Model Number:

WL-FS-75K

Request A Quote

Product Details

Model:

WL-FS-50K

Applicable Material:

Stainless Steel, Carbon Steel, Aluminum, Metal

Electrode Force (KG):

800

Dimension(L*W*H):

950mm*490mm*1675mm

Weight (kg):

400KG

Payment & Shipping Terms

Minimum Order Quantity

Price

US$8,000.00 / set

Packaging Details

wooden box

Delivery Time

30-60 days

Payment Terms

T/T,L/C

Supply Ability

10 sets/month

HWASHI Seam Welding Machine for Ventilation Duct Manual Tin Can Side Welder Roll to Roll Banner Welder 75KVA 26500A

Get Best Price

Video

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine

Get Best Price

Video

Hwashi Customized 38ov Double Station Fuel Tank Making Machine, Seam/Roll Weldingmachine for Tank

Get Best Price

Video

Stainless Steel Kitchen Sink Seam Welding Machine

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

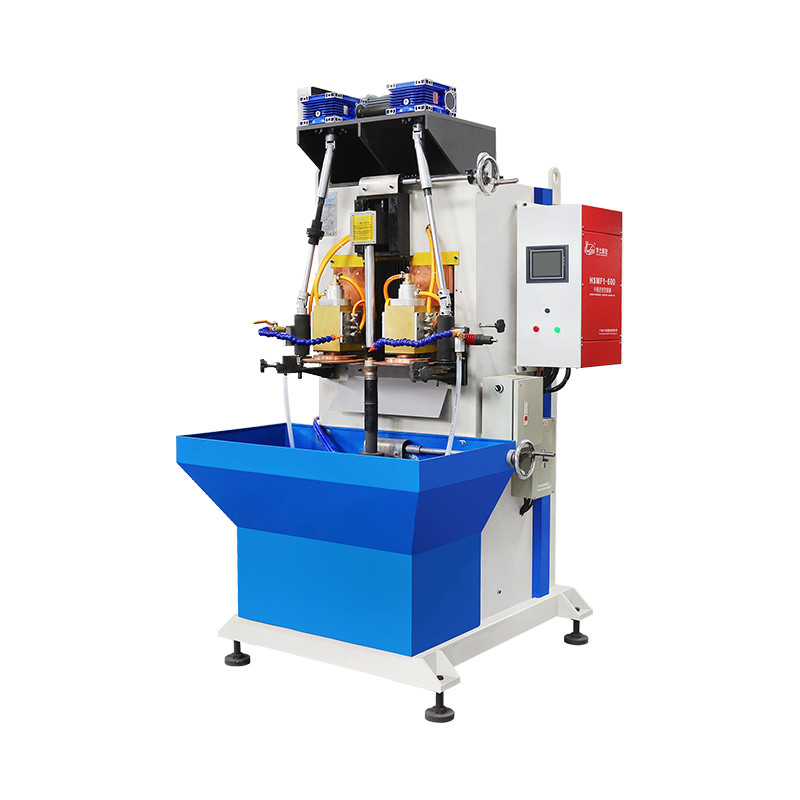

HWASHI Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine

Seam welding machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. The weld consists of a single weld joint, which is divided into roll spot welding or gas-tight seam welding according to the different core fusion overlap. Seam welding machine is widely used for thin plate welding of oil drums, tanks, radiators, aircraft and automobile fuel tanks and sealed containers in jet engines, rockets and missiles.

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 1

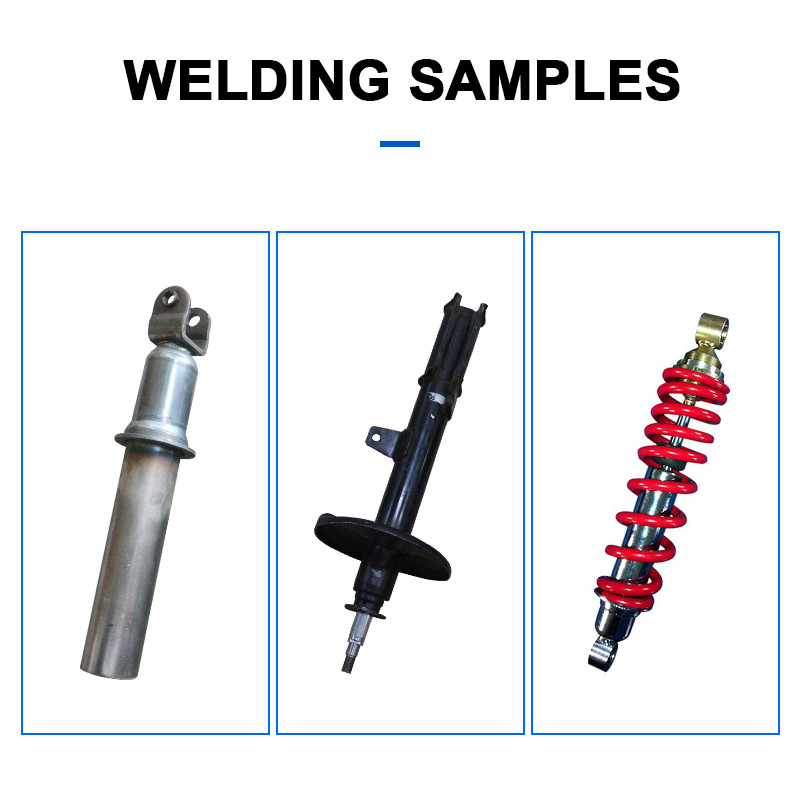

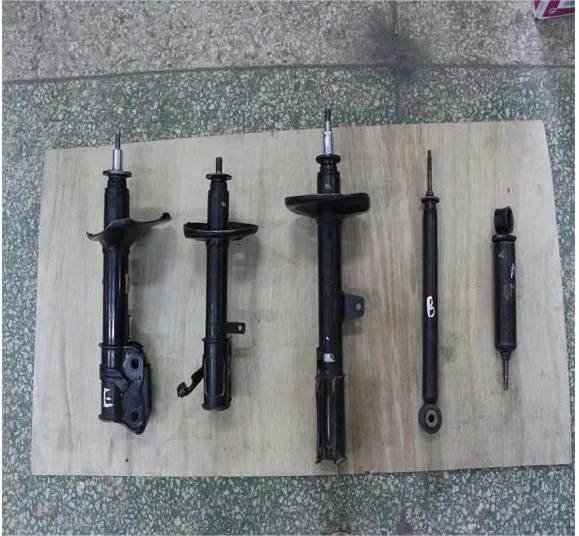

Welding sample

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 2

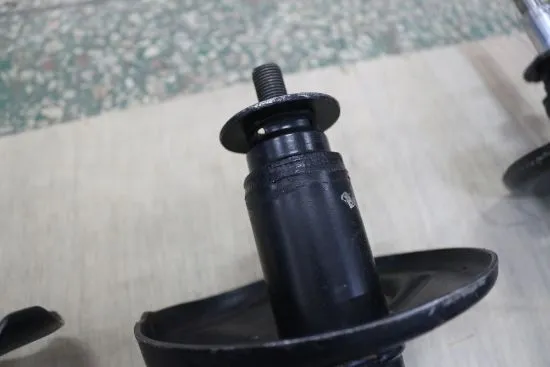

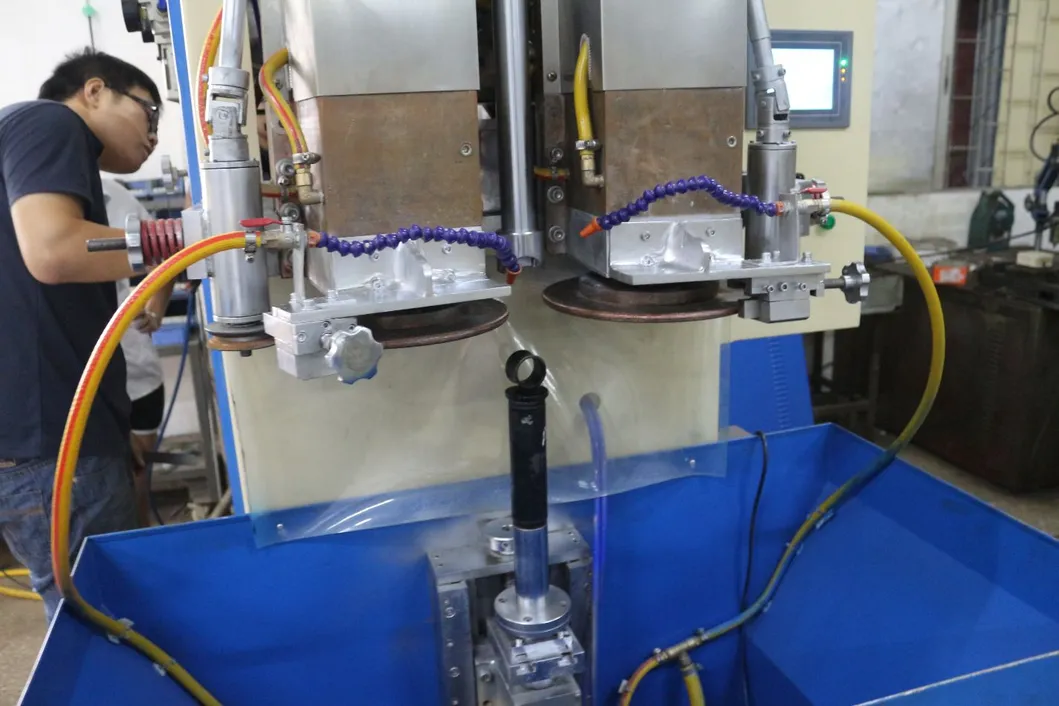

Welding effect

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 3

Hwashi Car Shock Absorbers Repair Machine, Resistance Seam Welding Machine 4

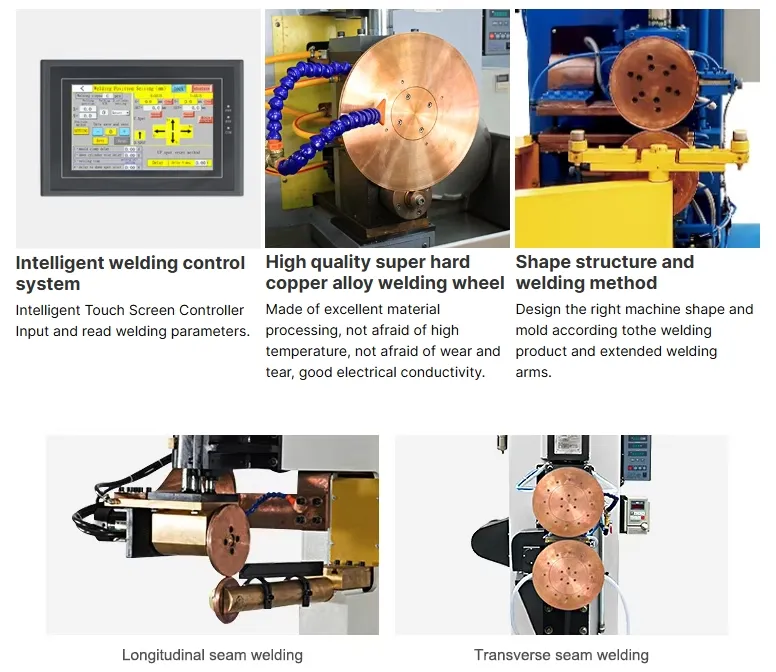

Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding. 2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect. 3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available. 4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding. 5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

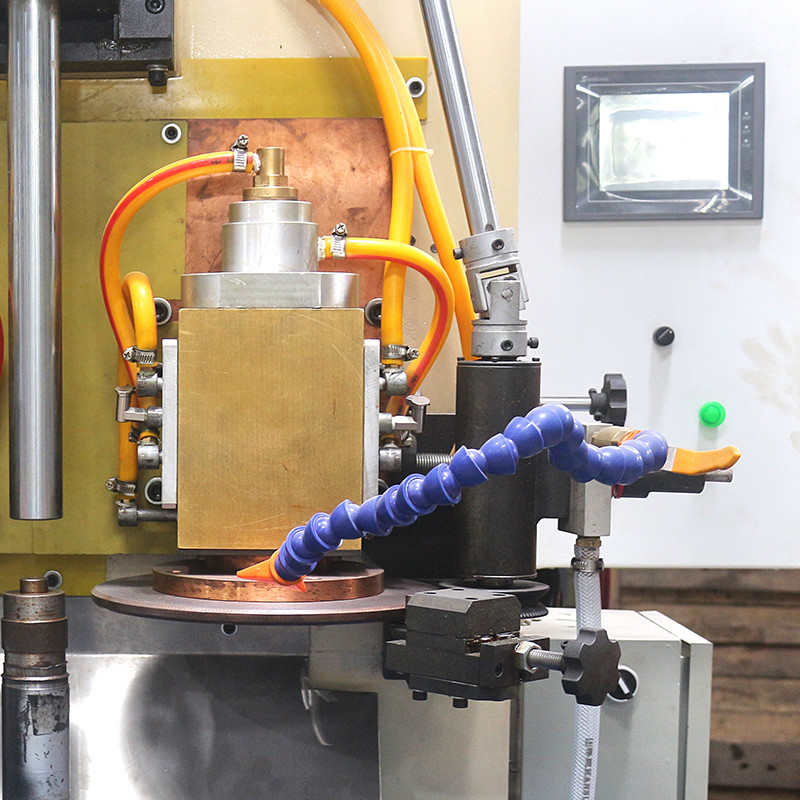

6. The welding wheel can be operated in both horizontal and vertical directions. 7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

Model	WL-FS-50K
Input Power (V/φ)	380V 1φ / 380V 3φ
Rated Power (KVA)	50
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	13
Electrode Force (KG)	800
Electrode Stroke (MM)	100
Dimension(LWH)	950mm490mm1675mm
Warranty	1 years
