Name: Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-FS-75K
Price: 20 USD
Availability: InStock

Home > products > Seam Welding Machine >

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

Model Number:

WL-FS-75K

Request A Quote

Product Details

Model:

WL-FS-75K

Welding Diameter:

50-800mm

Input Power:

100KVA

Usage:

Seam Welding Machine

Welding Mode:

Overlap Seam Welding

Color:

Customized

Payment & Shipping Terms

Minimum Order Quantity

Price

US$20,000

Packaging Details

wooden box

Delivery Time

30-60 days

Payment Terms

T/T,L/C

Supply Ability

10 sets/month

Hwashi High-Precision Longitudinal Seam Welder Automated Fuel Tank Welding Solution with Superior Leak-Proof Performance

Get Best Price

Video

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

Get Best Price

Video

HWASHI Seam Welding Machine for Various Applications 75KVA 26500A Stable and Welding Strong and Consistent Weld Seams

Get Best Price

Video

HWASHI Seam Welding Machine for Ventilation Duct Manual Tin Can Side Welder Roll to Roll Banner Welder 75KVA 26500A

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

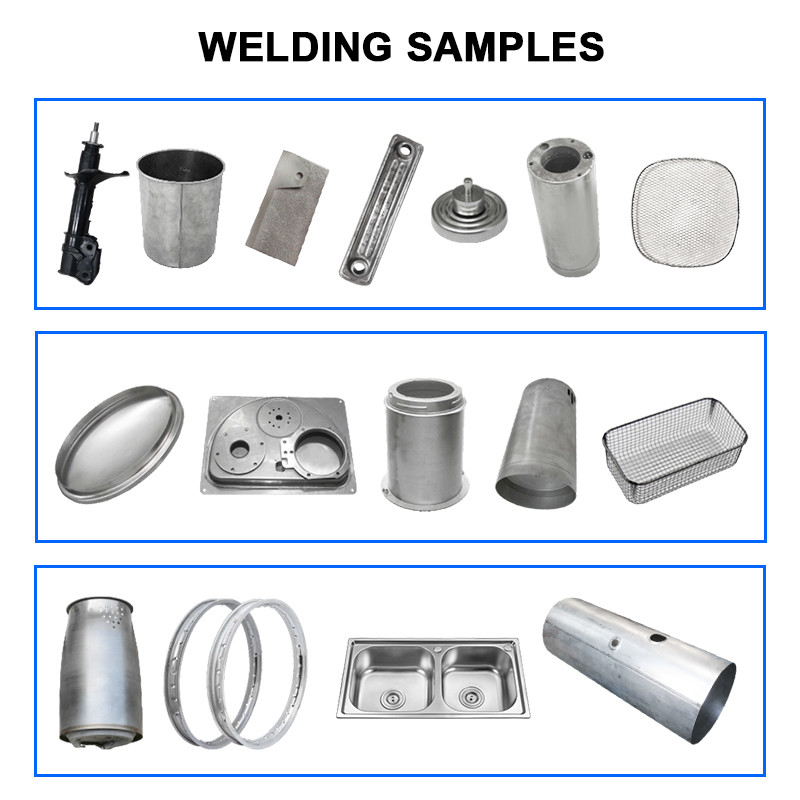

Longitudinal rolling seam welding machine for fuel tank is widely used in automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.

Product Application
Suitable for welding the tank within the range of 500x300mm. Welding material thickness is 0.5-1.5mm. Total welding thickness is 1-3mm.

Welding Method of The Seam Welding Machine
Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.
Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding.
2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect.
3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.
4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.
5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions.
7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

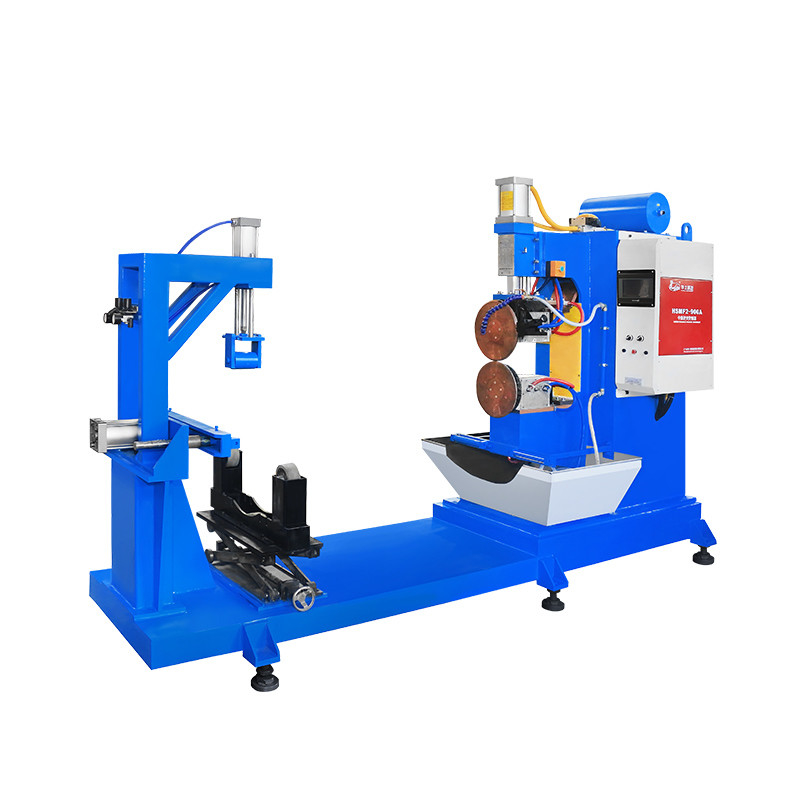

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 1

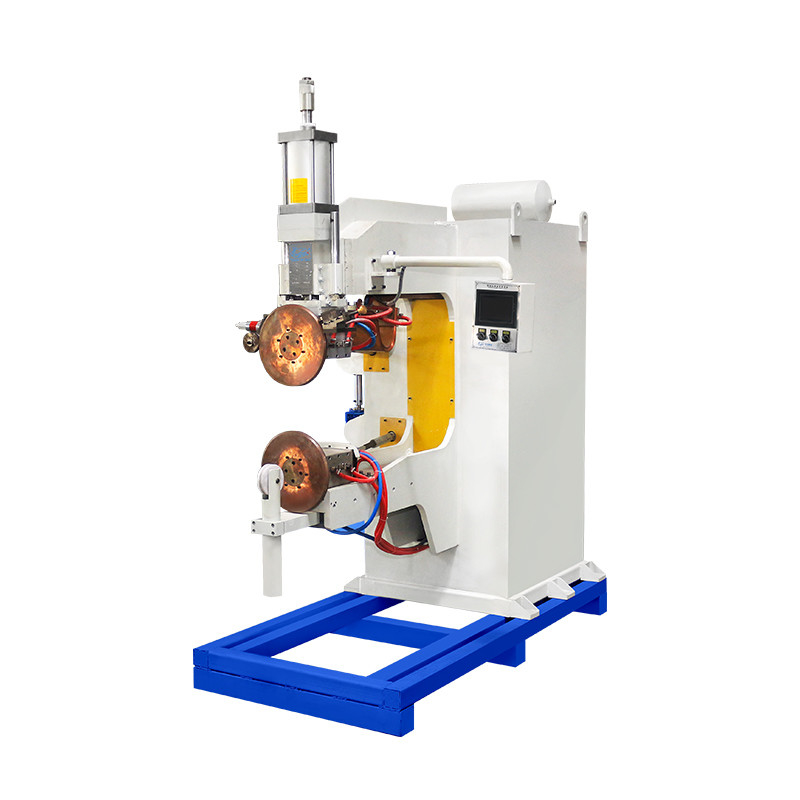

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 2

Specification
Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 3

Model	Welding Wheel Manner	Input Voltage	Output Power	Output Current
WL-FSH-16K	Horizontal	220/ 380V	16KW	10000 A
WL-FSL-25K	Circular	220/ 380V	25 KW	12000 A
WL-FSH-25K	Horizontal	220/ 380V	25 KW	12000 A
WL-FSH-35K	Horizontal	380V	35 KW	16000 A
WL-FSZ-50K	Vertical	380V	50 KW	19500 A
WL-FSZ-75K	Vertical	380V	75 KW	24000 A
WL-FST-50K	Special Machine structure	380V	50 KW	19500 A
WL-FST-150K	Special Machine structure	380V	150 KW	40000 A
WL-FST-200K	Special Machine structure	380V	200 KW	50000 A
WL-FS-100K	Vertical	380V	100 KW	30000 A
