Hwashi Multi - Point Automatic Mobile Spot Welder for Stainless Sheet Door Plates

Place of Origin:

China

Brand Name:

hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-SQ100K

Request A Quote

Product Details

Model:

WL-SQ100K

Conductive Way:

Both-Sided

Rated Capacity:

160kVA X2

Applicable Material:

Stainless Steel, Carbon Steel, Aluminum, Metal

Welding Method:

Resistance Touch Welding

Max.Welding Thickness:

2+2mm

Warranty:

1 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

60 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Get Best Price

Video

Good Quality Stainless Steel Rocker Arm Bending Equipment Square Curved C Type Crank Arm Table Spot Welding Machine

Get Best Price

Video

Resistance Multi Point Rocker Arm Table Seamless Desktop Platform Spot Welding Machine for Metal Distribution Cabinet

Get Best Price

Video

HWASHI Flexible Crank Arm Metal Sheet Door Panel C Type Crank Arm Table Spot Welding Machine Sheet Metal Spot Welder

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

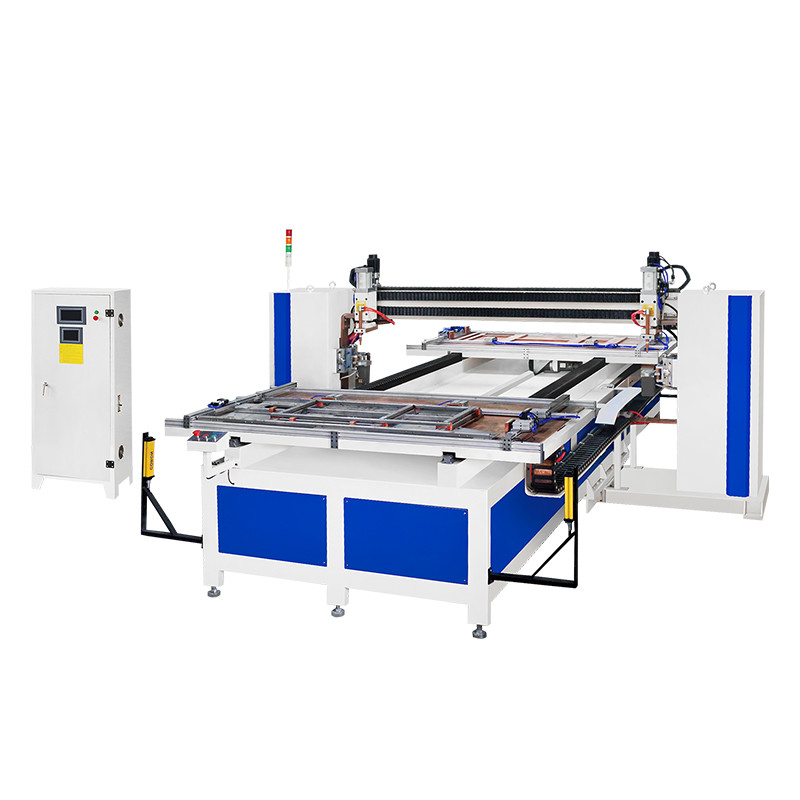

Hwashi Multi - Point Automatic Mobile Spot Welder for Stainless Sheet Door Plates

Name: Hwashi Multi - Point Automatic Mobile Spot Welder for Stainless Sheet Door Plates
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ100K
Price: 25.00 USD
Availability: InStock

Hwashi Multi - Point Automatic Mobile Spot Welder for Stainless Sheet Door Plates 0

Product Description
Engineered for rapid fabrication, this spot welding machine delivers consistent, high-strength welds on stainless steel, aluminum, and carbon steel sheets. Equipped with an intelligent microprocessor control system, it adjusts welding current, time, and pressure in real-time to ensure uniform joint quality across varying sheet thicknesses (0.5mm–5mm). The automatic mobile arm enables 360° positioning, reducing manual intervention and boosting production efficiency by up to 70% compared to traditional fixed models. Ideal for automotive body panels, appliance casings, and structural metalwork.

Working Process
Harnessing high-power fiber laser technology, this system offers micron-level precision for thin to medium-thickness metal sheets (0.1mm–3mm). The CNC motion control enables intricate geometric welding paths, eliminating the need for secondary finishing. Its non-contact welding process minimizes heat-affected zones, preserving material integrity and reducing distortion—critical for aerospace components, electronic enclosures, and medical device fabrication. The system supports automatic loading/unloading integration for fully automated production lines.

Advantages
* Refined welding
* No need for special equipment
* Multi head welding at the same time
* Maximally easy working area access
* Production flexibility
* Reduced labor costs

Product Features

1. Flexible using: you can adjust the welding head distance as per your drawing request. Only need to loose the bolts on the cylinder then you can move the cylinder from left to right.

2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.

3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.

4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.

Automatic Moving Table

Be able to choose the two welding tables located from the same side or different side. We may design the machine according to your product drawings.

S.N	Items	WL-AT-MF 15
1	Input Voltage	380v,3-Phase
2	Input Power	160KVAx2
3	Max.Welding Current	32000 Ax2
4	Welding Specification	32 Kinds
5	Different Welding Current	5000
6	Effective Size Of Welding Platform	1500mmx1500mm
7	X Axis Effective Width	750 mm
8	Y Axis Effective Length	1500 mm
9	X Axis Servo Motor	2 Sets
10	Y Axis Servo Motor	2 Sets
11	Feeder Moving Speed	800 mm/sec
12	Servo Motor Power	450 W
13	Welding Cylinder	2 NO.(80x50mm)
14	Upper Welding Electrode	2 Sets
15	Lower Electrode	full flat table
