Name: Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx6
Price: 375,005.00 USD
Availability: InStock

Home > products > Automatic Cage Welding Machine >

Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160Kx6

Request A Quote

Product Details

Certification:

ISO9001

Type:

Tank Container

Weight:

2000kg

Water Pipe Size:

G1 1/4

Warranty:

12 Months

Specification:

CE/CCC

HS Code:

Standard Export Packing

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

60 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine

Get Best Price

Video

Revolutionize Your Ironing Rack Manufacturing with Our State-of-the-Art Machine

Get Best Price

Video

High-Speed Production Automatic Cage Welding Machine with Bilateral Piano-Style Welding Technique

Get Best Price

Video

Production of IBC Grids Hwashi High-Speed Automatic Cage Welding Machine with Advanced Welding Technique

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

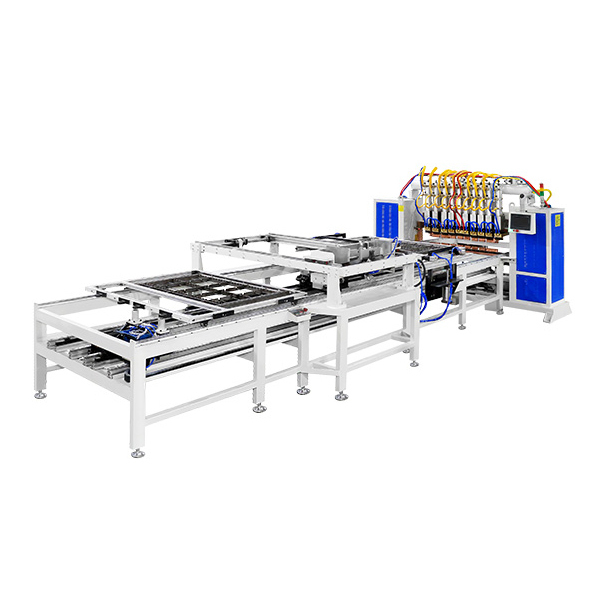

Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine

Transform your wire mesh deck shelving production with the Hwashi Automatic Cage Welding Machine – the ultimate solution for manufacturers seeking to enhance efficiency, precision, and scalability.Engineered for high-performance industrial use, this state-of-the-art welding machine automates the cage welding process for wire mesh decks, eliminating manual errors and reducing production time significantly. Whether you’re producing standard or custom-sized wire mesh shelving for warehouses, storage facilities, or retail spaces, Hwashi’s technology ensures consistent, high-quality welds across every unit.

Working Process

1)High speed wire straightening and cutting machine will cut the wires from the wire coil, and then load the wires to the wire supplying system for automatic wire filling of the cross wires and line wires.
2)Cross wire and line wire filling system will feed the wire to the welding position automatically.
3)The welding machine will do welding automatically.
4)After welding, the robot will pick up the mesh and load it to the wire trimming station for cutting the edges.
5)After trimming, the robot will place the wire mesh back to the conveyor line and move it to bending station.
6)The bending machine will bend one side of the mesh.
7)The rotary system will rotate the mesh, and the bending machine will bend another side of the mesh.
8)The wire mesh will move to the stiffeners (support bars) welding position 9)The mechanical arm will load the stiffeners and fix them automatically to the welding position. 10)The welding machine will do welding of the stiffeners as per drawings. 11)After welding, the unloading mechanical arm will flip and stack the finished product automatically.

Key Advantages:

Unmatched Efficiency: Increase production output by up to 300% compared to manual welding, with continuous operation capabilities that minimize downtime.
Precision Welding: Advanced CNC controls deliver uniform welds at every joint, ensuring structural integrity and compliance with industry standards.
User-Friendly Design: Intuitive interface allows operators to set parameters (size, wire gauge, welding density) with ease, reducing training time.
Durable Construction: Built with heavy-duty materials to withstand rigorous factory environments, ensuring long-term reliability and low maintenance.
Customization Flexibility: Adapt seamlessly to various wire mesh deck specifications, supporting diverse client needs and market demands.

Items	Data
Electricity	Three-phase four wires 380V±10%
Power cable	120mm²,400A
Control method	PLC
Effective welding width	1200mm
Effective welding length	1200mm
Automatic moving speed	200-500mm/s adjustable
Automatic wire filling range	Line wire: 400-1200mm,wire diameter: 2-6mm Cross wire: 400-1200mm,wire diameter: 2-6mm
Automatic wire filling system number	2 sets
Machine dimension	35000mmx8000mm
Air pressure	0.6MPa
Cooling water	15-25ºC

Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine 0
