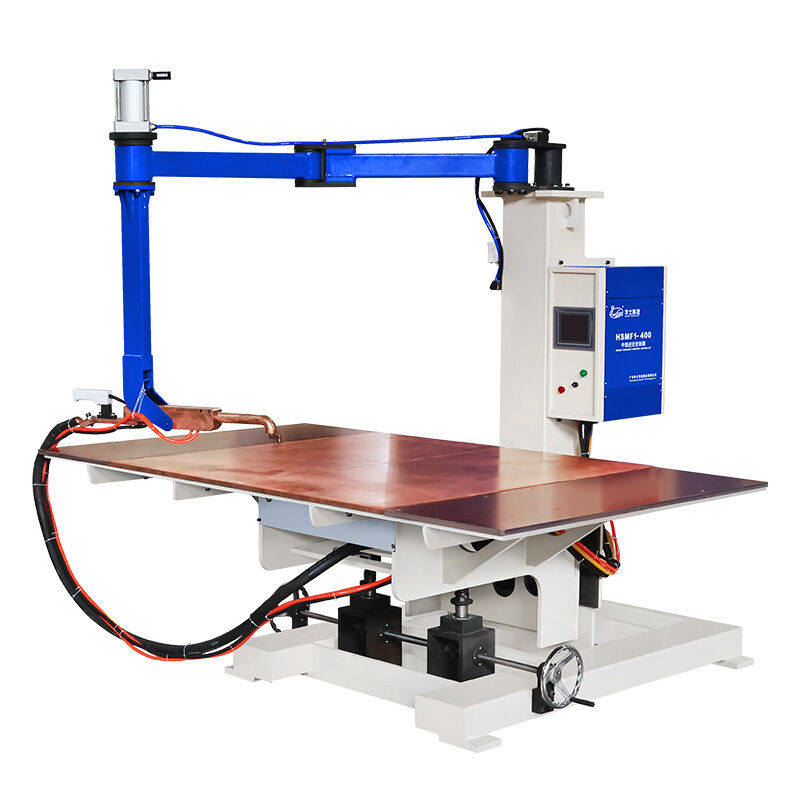

Name: HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-MF-100K/120K/160K
Price: 375,000.00 USD
Availability: InStock

Home > Products > Sheet Metal Welder >

HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

34000A Max Welding Current Automatic Spot Welding Machine

1200mm Adjustable Width Sheet Metal Welder

Digital Control Gantry Type Welding Machine

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

Model Number:

WL-SF-MF-100K/120K/160K

Request A Quote

Product Details

Product Name:

HWASHI Sheet Metal Custom Spot Welder Steel Floor Galvanized Panel Automatic Spot Welding Machine For Metal Plate

Dimension(L*W*H):

2500x1200x1950mm

Weight:

800KG

Usage:

Welding Of Steel Panel

Warranty:

1 Year

Transformer:

MF DC Transformer

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package

Delivery Time

20 - 30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

HWASHI Automatic Spot Welding Of Stiffeners On Shelves , Automatic Resistance Welding Machine

Get Best Price

Video

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

Get Best Price

Video

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Get Best Price

Video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

Product Features

Intellectual touch-screen microcomputer controller with complete digital control
Automatic detection and compensation system prevents loose welding and false welding
Panasonic touch-screen interface with Panasonic programmer as control hub
Multiple welding electrodes that move from left to right for flexible operation
Suitable for welding various product types without metal sheet deformation
T-Type welding method for sealed work pieces
Maximum welding current up to 200KA
Precision locating mode with groove R bottom mold and top clamping
Mosaic structure electrodes with floating terminal device
Dual-side feeding capability for optimized welding efficiency

Custom Welding Heads

Processing and design according to the drawings of each metal plate product (customized)

Automatic Feeding and Welding System

This Automatic Spot Welding Machine uses conveyor belt feeder to transport workpieces to setting positions for automated welding operations.

Technical Specifications

Item	Specification	Description
Input voltage	380V, 2-phases	Customizable, but only for 2-phases
Input current	400A
Output voltage	12V
Max. Welding current	34000A
Effective welding width	1200mm (adjustable)
Effective welding length	3000mm (adjustable)
Feeding Rack Mobile speed	0.5m/sec	Servo motor transmitting
Upper welding air cylinder	100x100mm	Double force pressing cylinder
Lower cylinder	160x100mm
