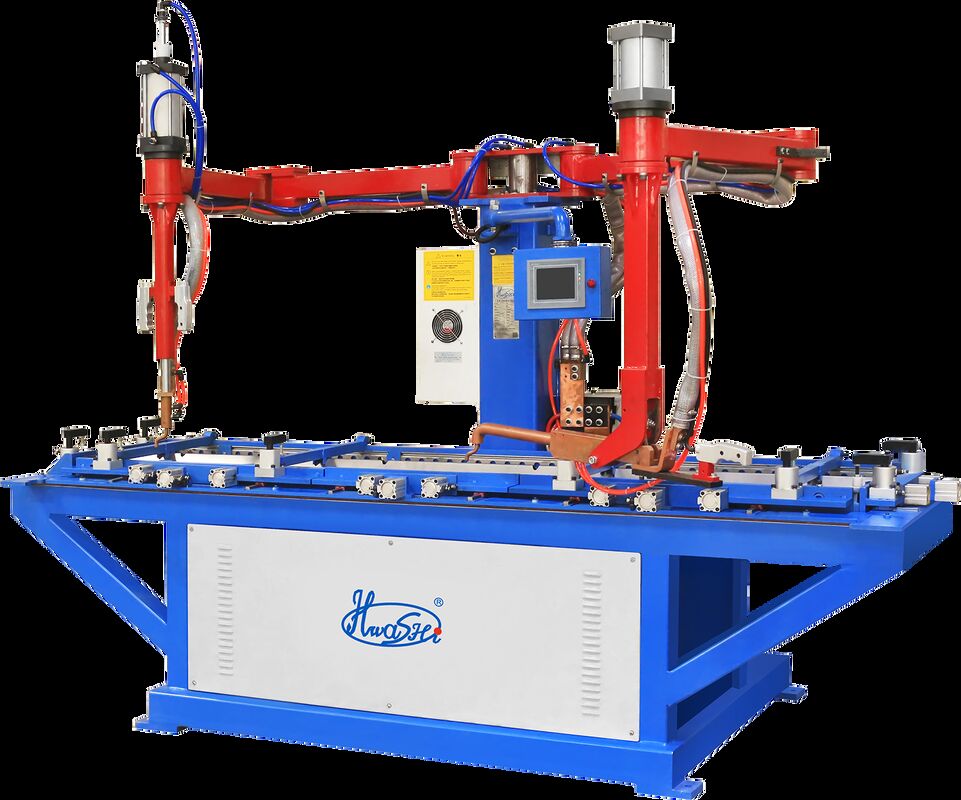

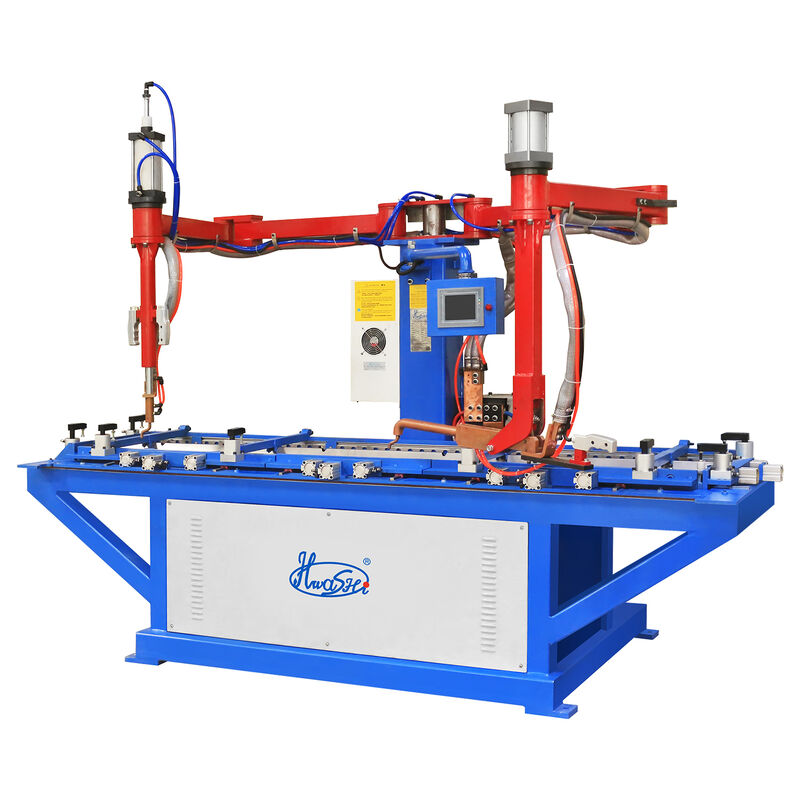

Name: Table Spot Welding Machine with Intelligent Touch Screen Controller
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-50/75/100K
Price: 25.00 USD
Availability: InStock

Home > Products > Stainless Steel Welding Machine >

Table Spot Welding Machine with Intelligent Touch Screen Controller

Intelligent Touch Screen Controller Spot Welder

3.0+3.0 MM Welding Thickness Stainless Steel Welding Machine

Precision Bending Table Spot Welding Machine

Place of Origin:

China

Brand Name:

hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-SF-50/75/100K

Request A Quote

Product Details

Model:

WL-SF-50/75/100K

Input Power (V/φ):

380/3

Rated Power (KVA):

50/75/100

Applicable Material:

Stainless Steel, Carbon Steel, Aluminum, Metal

Electrode Force (KG):

250-400

Wleding Thickness (MM):

3.0+3.0

Warranty:

1 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

60 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Table Spot Welding Machine with Intelligent Touch Screen Controller

Get Best Price

Video

Hwashi Door Panel Multi Head Spot Welding Machine with 10 to 20 Welding Heads and 2000x300mm Platform with Touch Panel System

Get Best Price

Video

Hwashi Automatic Multi Head Spot Welding Machine with Customizable Welding Head Distance and Touch Panel System for Door Panels

Get Best Price

Video

Table Spot Welding Machine with Intelligent Touch Screen Controller for Precision Bending and 3.0+3.0 MM Welding Thickness

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Table Spot Welding Machine with Intelligent Touch Screen Controller

Eliminate weld imperfections in precision bending tasks with this high-performance industrial equipment designed for seamless welding of metal sheets including steel, aluminum, and stainless steel in structural reinforcement applications.

Intelligent Welding Control System

Intelligent Touch Screen Controller for input and reading welding parameters. The welding conditions can be easily set using the touch panel system. You can save different welding parameters for different materials and thicknesses, allowing easy recall of welding programs.

Welding Platform

Flat large copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without auxiliary personnel. The welding gun moves freely, allowing easy access to desired welding points by one person.

Standard Welding Electrode

Welding can be done efficiently by changing the electrode tip according to the type and size of product. Capable of welding nuts, screws, and various fasteners.

Easy Setup and Operation

Comfortable working position: No need to hold the workpiece during welding. Pressurization is automatic, greatly reducing the physical burden on the operator.

Core Advantages for Precision Bending Scenarios

Imperfection-Free Weld Formation: Advanced current control technology and high-precision electrode positioning ensure uniform heat distribution across weld spots
Adaptive Bending Compatibility: Compact tabletop design and adjustable clamping force accommodate various bent part geometries
Consistency & Repeatability: Integrated digital control panel allows operators to store and recall custom welding parameters
Damage Prevention for Thin Materials: Low-spatter welding process and soft-clamping mechanism protect workpiece surfaces

Machine Features

Movement patterns can be chosen as manual or CNC automatic mobile type
Manual mobile method features simple structure, convenient flexibility, and simple welding spot location
Automatic mobile method uses coding servo motor with precision-machined slide rail, ball screw, and automatic testing system
Automatic device utilizes X, Y axis mobile working table with PLC for storing mobile programs
Direct single-point welding method with complete flat lower electrode suitable for flat plates with multiple welding spots

Specifications

Model	WL-SF-50/75/100K
Input Power (V/φ)	380/3
Rated Power (KVA)	50/75/100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	3.0+3.0
Warranty	1 year

Applications and Samples

We provide customized services tailored to your specific requirements. Our engineers will discuss your welding needs and develop suitable technical proposals based on your samples or drawings.

Applicable Industries

Various industries including chassis and cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and more.

Factory & Certifications

HWASHI: 22+ Years Experience Welding Solutions Expert

Guangdong Hwashi Technology Inc., established in 2001, is located in Huizhou, Guangdong province, China. We are a high-tech enterprise specializing in developing, manufacturing, and selling resistance welding machines, automatic welding machines, and industrial robot stations.

We operate two manufacturing plants covering approximately 60,000 square meters with about 200 staff members, including more than 20 mechanical and electrical engineers with over 10 years of experience in the welding industry.

With more than 70 patents in welding machine projects, our machines have been exported to over 70 countries worldwide. We maintain local distributors in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, USA, and other regions to provide professional pre-sales and after-sales service.
