Name: Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

Home > Products > IBC Welding Machine >

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

PLC Control IBC Tube Forming Machine

Full Automation IBC Frame Tube Pressing Machine

Hydraulic Pressing IBC Short Tube Forming Equipment

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

Model Number:

WL-SQ-150K*2

Request A Quote

Product Details

Product Name:

Hwahsi Automatic Short Tube Pressing And Forming Machine For IBC Frame Tube Forming Machines

Control System:

PLC

Packing:

Wooden Packing

Specification:

CCC

Warranty:

1 Year

Welding Power Source:

AC / MF DC

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package or PVC Film for FCL

Delivery Time

30 - 45 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Get Best Price

Video

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

Get Best Price

Video

Full Automatic IBC Grid Cage Frame Production Line with Leakage Testing and 50sec/pc Welding Efficiency

Get Best Price

Video

IBC Cage Automatic Production Machine with 60 Seconds Per Cage Cycle Time ISO9001 Certified and 2000kg Weight

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

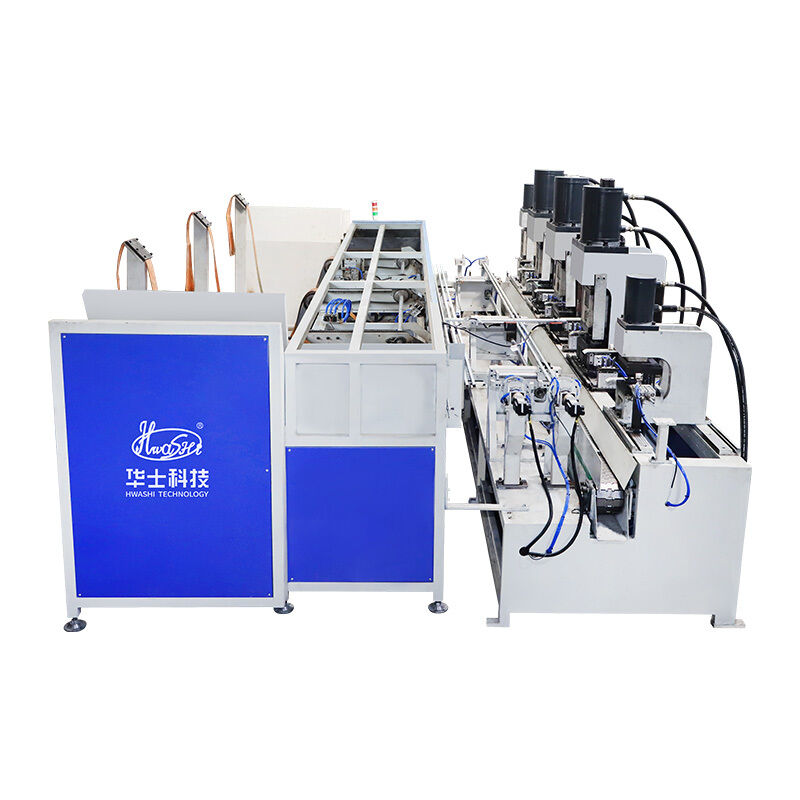

Hwahsi Automatic IBC Short Tube Pressing and Forming Machine for IBC Frame Tube

The Hwahsi Automatic Short Tube Pressing and Forming Machine is a specialized custom solution for IBC tube processing. This advanced system performs fully automated pipe feeding, pipe end forming and cutting, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features and Benefits

Full Automation: Complete automated operation eliminates manual intervention requirements
High Production Efficiency: Automated functions significantly increase production speed and reduce processing cycles
Precision Quality Control: Advanced control system ensures consistent pipe forming quality meeting industry standards
Labor Cost Reduction: Fully automated operation eliminates continuous human supervision needs
Multi-Functional Design: Integrated processing including pipe feeding, forming, cutting, and hydraulic pressing in one unit

Automated Processing Workflow

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station.

The mechanical arm picks up two pipes and positions them at the hydraulic pressing station for pressing and tube end shrinking. After processing, tubes are automatically unloaded to the conveyor system for transfer to collection trolleys.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic system
Pressing Mark Number	8 marks
Cutting Function	Integrated cutting capability
Processing Capacity	2 pieces per cycle
Production Efficiency	12-15 seconds per 2 pieces

This specialized IBC tube processing machine provides manufacturing businesses with an efficient, precise, and cost-effective production solution that enhances overall production line performance.
