Name: Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

Home > Products > IBC Welding Machine >

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Fully Automatic IBC Tube Pressing and Forming Machine

Hydraulic Pressing IBC Frame Tube Forming Machine

Pipe End Shrinking IBC Tube Forming Equipment

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

Model Number:

WL-SQ-150K*2

Request A Quote

Product Details

Product Name:

Hwahsi Automatic Long Tube Pressing And Forming Machine For IBC Stainless Steel Frame Manufacture Production Line

Control System:

PLC

Packing:

Wooden Packing

Specification:

CCC

Warranty:

1 Year

Welding Power Source:

AC / MF DC

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package or PVC Film for FCL

Delivery Time

30 - 45 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Get Best Price

Video

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

Get Best Price

Video

Full Automatic IBC Grid Cage Frame Production Line with Leakage Testing and 50sec/pc Welding Efficiency

Get Best Price

Video

IBC Cage Automatic Production Machine with 60 Seconds Per Cage Cycle Time ISO9001 Certified and 2000kg Weight

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

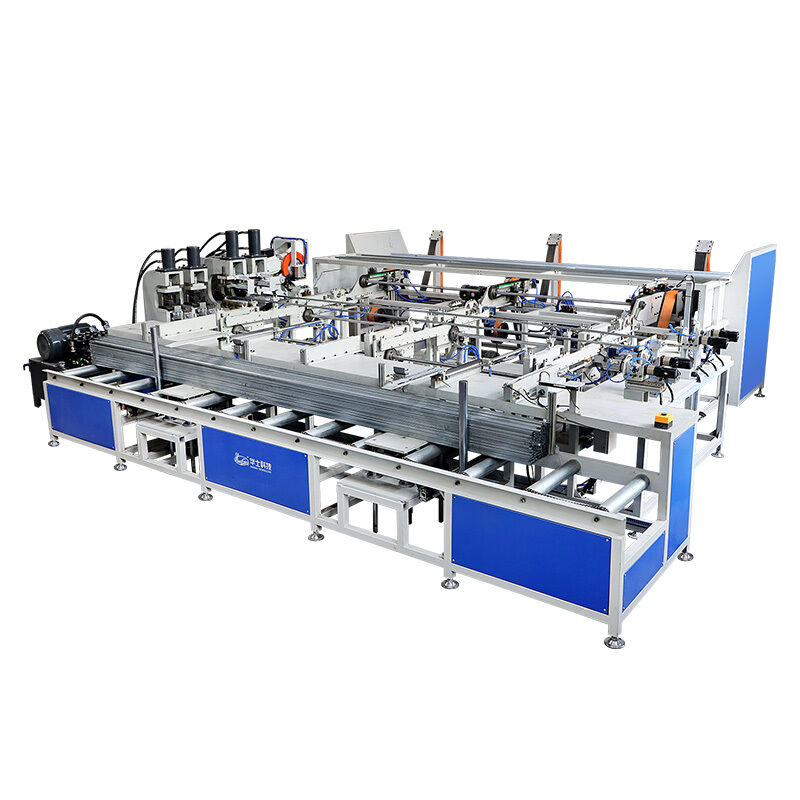

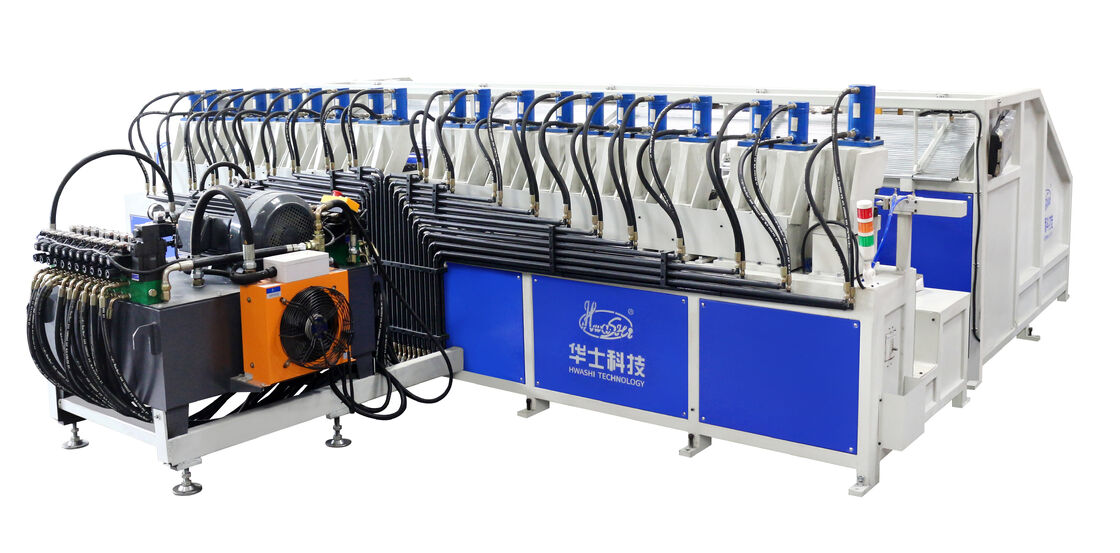

Hwahsi Automatic Long Tube Pressing And Forming Machine For IBC Stainless Steel Frame

The Hwahsi Automatic Long Tube Pressing and Forming Machine is a specialized custom solution designed for IBC tube processing in stainless steel frame manufacturing production lines. This advanced equipment enables fully automated pipe feeding, pipe end shrinking, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features & Benefits

Fully Automatic Operation: Seamless automated processing eliminates the need for human intervention
Pipe End Shrinking Capability: Ensures precision and consistency in IBC tube shaping to meet quality standards
Efficient Hydraulic Pressing: Advanced hydraulic system enhances tube formation efficiency and final product quality
Automatic Unloading: Integrated unloading process streamlines production workflow and minimizes downtime
Manpower Savings: Eliminates operator requirements, significantly reducing labor costs
Production Rate Enhancement: Advanced automation delivers substantial increases in production output within shorter timeframes

Operation Process

Finished Product

Processing Workflow:

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station. The mechanical arm picks up two pipes simultaneously and positions them for hydraulic pressing and tube end shrinking. After pressing completion, finished tubes are automatically unloaded onto the conveyor system, which transfers the final materials into the collection trolley.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic
Pressing Mark Number	20
Cutting Function	Yes
Each Time Processing Number	2 pieces
Efficiency	12-15 seconds per 2 pieces

Advanced Manufacturing Solution: The IBC Long Tube Automatic Pressing and Forming Machine represents cutting-edge technology in IBC tube processing, providing manufacturers with a reliable, high-speed, and labor-saving solution to optimize production capabilities and enhance operational efficiency.
