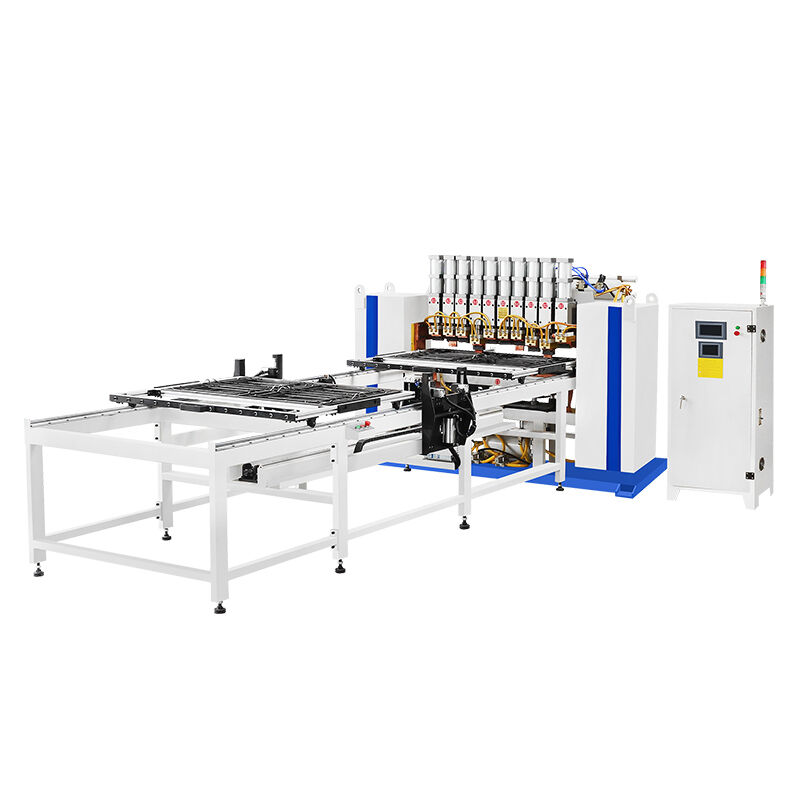

Name: Wire Mesh Welding Machine with Three-Phase MF DC Power Supply 1200mm Effective Welding Width and 3000mm Length
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF100K
Price: 30,000.00 USD
Availability: InStock

Home > Products > Wire Mesh Welding Machine >

Wire Mesh Welding Machine with Three-Phase MF DC Power Supply 1200mm Effective Welding Width and 3000mm Length

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF100K

Request A Quote

Product Details

2D Wire Handle Bending Machine:

Bends Wire Handle For 2-6mm Wire Bending

Effective Welding Width:

1200mm

Product Category:

Wire Mesh Welding Machine

Product Name:

Welding Power Source Three-Phase MF DC Power Supply System For Wire Mesh Welder

Wire Edge Trimming Machine:

Cuts Off The Edge Of Wire From The Wire Frame To Make The Surface Clean And Smooth

Maximum Wiring Speed:

200mm/S

Effective Welding Length:

3000mm

High Speed Wire Straightening And Cutting Machine:

Makes Batch Production Of 2mm To 4mm Wires At Almost 5 Times The Normal Speed

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Wire Mesh Welding Machine with Three-Phase MF DC Power Supply 1200mm Effective Welding Width and 3000mm Length

Get Best Price

Video

High Speed PLC Control Automatic Wire Tube Condenser Production Line and Welding Bending Machine

Get Best Price

Video

High Speed PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding Bending Machine

Get Best Price

Video

Hwashi Automatic Multiple Head Wire Mesh Spot Welding Machine with Synchronous Welding and Adaptive Technology

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

This advanced welding power source delivers precise, stable DC output through three-phase input, specifically designed for industrial wire mesh production lines. The system features intelligent automation that eliminates the need for manual operation while optimizing production efficiency.

Technical Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 Year
Mesh Welding Range	1000mm * 1000mm

The wire welding machine adopts a single-head long arm welding structure with work piece molds that move automatically along X and Y axes. By inputting coordinate data for welding position and current parameters, the system achieves fully automatic welding operations with only manual material loading and workpiece removal required.

Key Features

Intelligent welding control system with automatic coordinate-based welding
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power supply options: Three-phase MF DC or two-phase AC systems
Automatic double-layer feeder for continuous production
High-speed wire straightening and cutting at 5x normal speed
Customizable dimensions to match specific product requirements
Effective welding width of 1200mm for large-scale production

Configuration Options

Available with multiple configurations including power supply, feeder, unloading device, automatic bending device, and automatic straightening and cutting machine to suit various welding applications and production needs.

Applications

Ideal for manufacturing wire mesh fences, cages, grids, shelves, and various welded mesh products. Suitable for businesses requiring high customization with programmable welding for different wire diameters and mesh sizes. Perfect for large-scale production with efficient operation and consistent weld quality.

Production Capabilities

Delivery time: 7-30 working days after payment confirmation. Supply capacity: 50 sets per month. Packaging: Sea-worthy wooden packages for safe transport. Payment terms: L/C and T/T available.
