Name: 75KVA Stainless Steel Seam Welding Machine with Automatic Forming and Roller Spot Welder for Precision Welding
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-FS -75K
Price: 6.00 USD
Availability: InStock

Home > Products > Seam Welding Machine >

75KVA Stainless Steel Seam Welding Machine with Automatic Forming and Roller Spot Welder for Precision Welding

75KVA Seam Welding Machine

Stainless Steel Roller Spot Welder

Automatic Forming Roll-Round Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC\ISO

Model Number:

WL-FS -75K

Request A Quote

Product Details

Product Name:

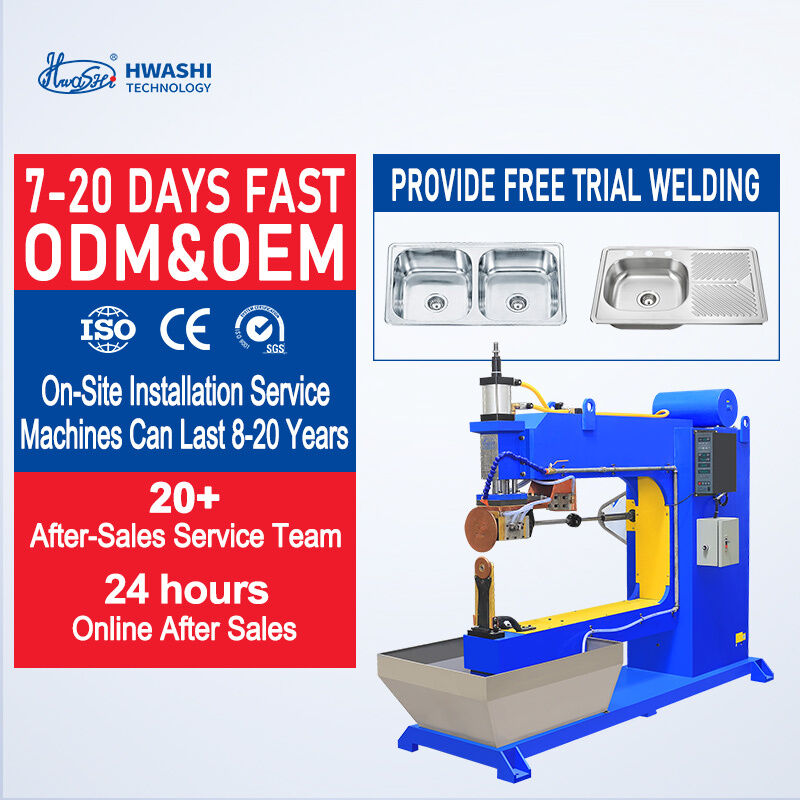

Stainless Steel Kitchen Sink Seam Welding Machine

Application:

Semi-automatic Sink Welding

Size:

780x1500x1800mm

Weight:

500kg

Condition:

New

Service Life:

8-10 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

40000A Output Current Automatic Roll Welding Machine for Oil Drum Manufacturing and Drum Lid Seam Welding Equipment

Get Best Price

Video

Longitudinal Rolling Seam Welding Machine for Fuel Tank Seam Welding Machine for Detector of Temperature Controller

Get Best Price

Video

Electric Seam Welder with Automation Automatic Power Source

Get Best Price

Video

Horizontal Type Seam Welder Continuous Seam Welding Machine for Electric Power Source and Efficiency

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

HWASHI Roller Spot Welder - Ventilation Duct & Tin Can Side Seam Welding Machine

The HWASHI Roller Spot Welder is a professional-grade welding system designed for ventilation duct manufacturing, tin can side seam welding, and roll-to-roll banner welding applications. This integrated system combines automatic forming and welding operations for cylindrical workpieces.

Technical Specifications

Model	WL-FS-AC75K	WL-FS-MF75K	WL-FS-MF100K
Input Voltage	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz	-
Input Power	75KVA	75KVA	100KVA
Rated Input Current	115A	115A	150A
Rated Duty Cycle Rate	50%	50%	50%
Max Secondary Floating Voltage	DC9.75V	DC9.75V	DC11.6V
Secondary Max Short Circuit Current	26500A	26500A	28000A
Welding Transformer Insulation Grade	Grade F	Grade F	Grade F
Program Segment Time Adjustment Range	0～9999SEC	0～9999SEC	0～9999SEC
Controller Heat Adjustment Range	15%～99%	15%～99%	15%～99%

Welding System Parameters

Upper Welding Wheel Diameter: 280mm
Lower Welding Wheel Diameter: 40mm
Welding Wheel Width: 3mm
Welding Wheel Rotating Speed: 800-4000mm/min (adjustable)
Upper Welding Wheel Throat Depth Distance: 400mm
Lower Welding Wheel Throat Depth Distance: 400mm
Upper and Lower Welding Wheel Distance: 50mm
Air Pressure: 0.6MPa
Gas Consumption: 10m³/h
Water Pressure: 0.2Mpa
Water Temperature: 10-20℃
Cooling Water Consumption: 800L/H

System Description

The Automatic Roll-Round Welding and Forming Equipment is an integrated advanced system designed for automatic forming and welding operations on cylindrical workpieces. This equipment combines roll-round forming and welding processes to significantly enhance production efficiency while ensuring high-quality finished products.

Key Capabilities

Automated Forming: Features automatic roll-round forming capability for precise and consistent forming of cylindrical workpieces, reducing manual labor and improving operational efficiency.

High-Precision Welding: Equipped with advanced high-precision welding technology that ensures accuracy and consistency during the welding process, guaranteeing superior welding quality.

Technical Features

Intelligent microcomputer single piece controller with pure digital setting and LED digital display
Automatic welding current compensation for voltage fluctuations to ensure welding stability
Digital circuit control with components from world-renowned manufacturers
High-precision silicon controlled components from IXYS and IR (United States)
Advanced mercury conductive technology for transmission tile axis
Japanese alloy copper material for welding roll wheels with high rigidity and conductivity
Japanese high-purity silicon steel sheet transformers with excellent magnetic and electrical conductivity
Mosaic connection design for easy assembly and disassembly of welding molds
Multiple welding power source options: AC pulse, secondary rectifying, and three-phase medium frequency

Competitive Advantages

Industry Leadership HWASHI is the leading brand in resistance welding industry in China for 20 years with factory direct sales and competitive pricing.

Customized Solutions We provide design and development services for welding machines according to your specific requirements.

Quality Assurance 12-month warranty with ISO9001:2000 and China Compulsory Certification compliance. 100% testing before delivery with 8-10 year service life.

Technical Support 24-hour technical support via email with professional team available as your technical consultant.

Efficient Delivery Just-in-time delivery service with prompt response to customer inquiries and requirements.
