Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply

7-Axis CNC Control Sheet Metal Spot Welding Machine

Double Heads Welding Automatic Sheet Metal Welder

Medium Frequency Inverter Power Supply CNC Sheet Metal Welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Product Name:

Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Machine, Automatic Sheet Metalwelder For Squatrack

Warranty:

12 Months

Condition:

New

Service Life:

8-10 Years

Power (Kw):

160kvax2

Frequency:

1000Hz

Max.Welding Thickness:

2+2mm

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

Get Best Price

Video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Get Best Price

Video

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Get Best Price

Video

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

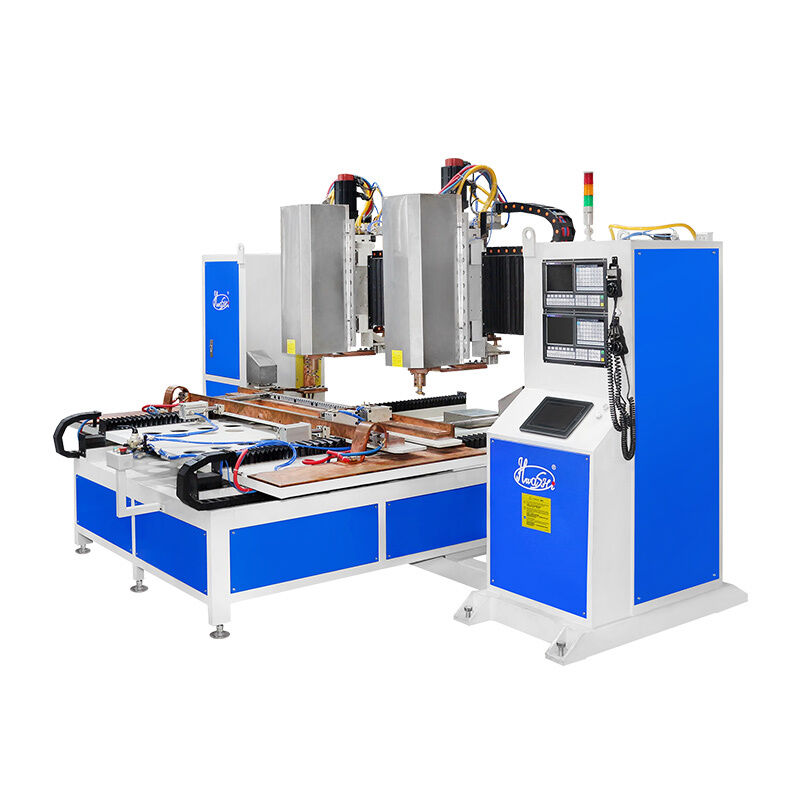

Hwashi CNC Seven 7-Axis Double Heads Sheet Metal Spot Welding Machine

This automatic sheet metal welder for squat racks is custom-engineered to meet your specific welding requirements and product specifications.

Advanced CNC Control System

The machine features two independent welding mechanisms controlled by a sophisticated CNC servo system. This includes X-direction mobile welding and Y-direction table movement, enabling precise welding at various positions. The welding mechanisms also provide Z-direction lifting and A-direction rotation capabilities, with the CNC system coordinating all seven axes for optimal positioning and welding performance.

Key Features & Benefits

Medium frequency inverter power supply for consistent welding performance
Fully automated welding production with programmed position control
Operator only required for product loading and unloading
Significantly improved product quality and production efficiency
Reduced production costs and elimination of manual welding inconsistencies
High automation degree with reliable, repeatable results

Industrial Applications

Primarily used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be efficiently welded by standard fixed welders. Widely applied across multiple industries including automotive manufacturing, civil sheet metal fabrication, security doors, cabinet production, and household appliances.

Customized Engineering Solutions

We provide comprehensive customized services tailored to your specific welding requirements. Our engineering team will collaborate with you to analyze your samples or technical drawings and develop optimal technical proposals for your application.

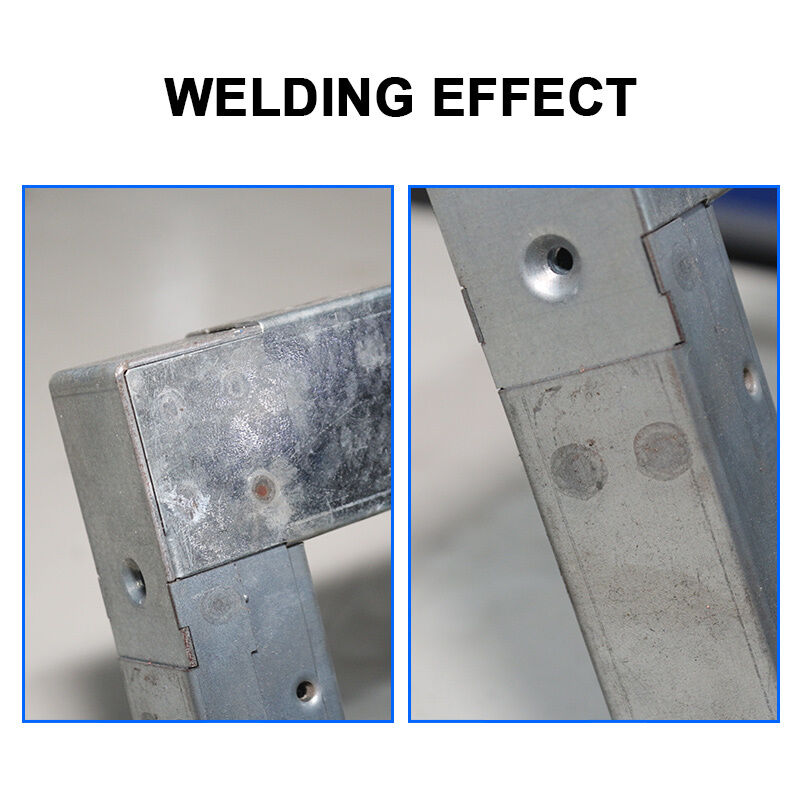

Welding Quality & Performance

Produces firm solder joints with consistent welding effects and reliable performance across all applications.

Technical Specifications

Item	Parameter
Rated Power	120KVA * 2
Duty Cycle	50%
Frequency	1000Hz
Effective Welding Length	1200mm
Effective Welding Width	2200mm
Welding Driving Power	Servo System
Maximum Moving Speed	500mm/s
Machine Dimension	L3800mm * W2600mm
Rated Air Pressure	0.6MPa
Water Temperature	10-25°C
