Name: Hwashi AT-MF25K Gantry Multi-Spot Welder with MFDC Inverter Power Supply Servo-Driven Feeding and Adjustable Electrode Spacing for Sheet Metal Stiffeners
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-50/75/100K
Price: 25.00 USD
Availability: InStock

Home > products > Stainless Steel Welding Machine >

Hwashi AT-MF25K Gantry Multi-Spot Welder with MFDC Inverter Power Supply Servo-Driven Feeding and Adjustable Electrode Spacing for Sheet Metal Stiffeners

Place of Origin:

China

Brand Name:

hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-SF-50/75/100K

Request A Quote

Product Details

Model:

WL-SF-50/75/100K

Input Power (V/φ):

380/3

Rated Power (KVA):

50/75/100

Applicable Material:

Stainless Steel, Carbon Steel, Aluminum, Metal

Electrode Force (KG):

250-400

Wleding Thickness (MM):

3.0+3.0

Warranty:

1 Years

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

60 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Table Spot Welding Machine with Intelligent Touch Screen Controller for 3.0+3.0 MM Welding Thickness and Precision Bending Compatibility

Get Best Price

Video

Precision Bending Spot Welding Machine with Intelligent Touch Screen Controller and 3.0+3.0 mm Welding Thickness

Get Best Price

Video

Table Spot Welding Machine with Intelligent Touch Screen Controller for 3.0+3.0 MM Welding Thickness and Precision Bending Compatibility

Get Best Price

Video

Hwashi Multi-Point Automatic Spot Welder with 160kVA X2 Power for 2+2mm Max Welding Thickness on Sheet Metal

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

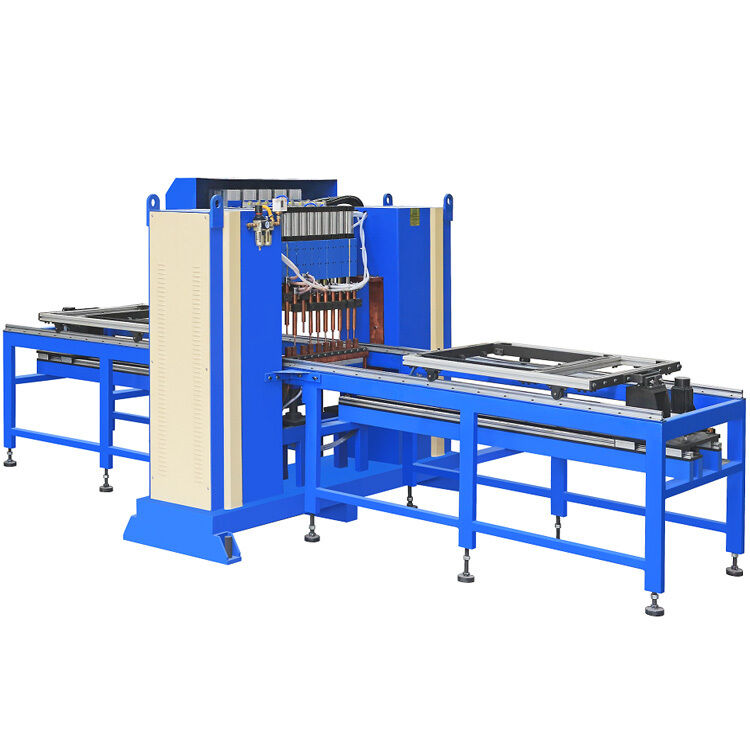

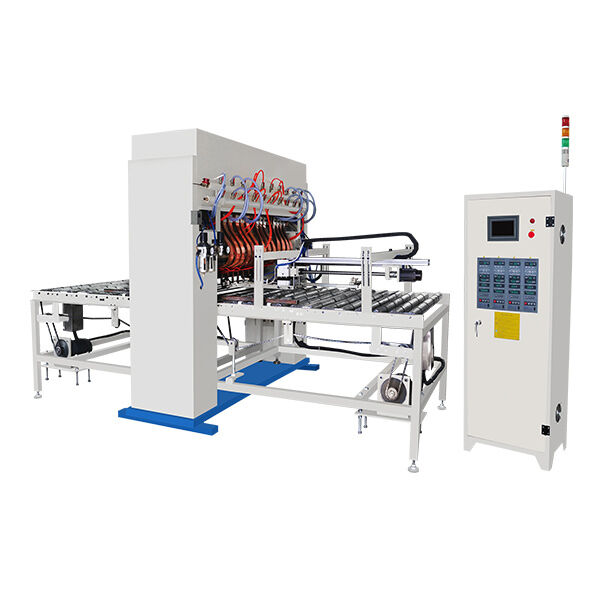

Hwashi AT-MF25K Gantry Multi-Spot Welder for Sheet Metal Stiffener

Product Overview

One Pass. Continuous Seam. Zero Leaks.

Introducing the Hwashi AT-MF25K Gantry Multi-Spot Welding Machine — engineered for high-volume production of sheet metal stiffeners, reinforcement ribs, and structural reinforcement profiles. Designed for elevator door panels, control cabinet enclosures, supermarket shelf boards, and industrial box panels. Built for manufacturers who demand precision, speed, and consistent weld quality across large production runs.

Product Description

The AT-MF25K is a gantry-style automatic multi-spot welding machine specifically engineered for reinforcing stiffener ribs on sheet metal components. Featuring a robust gantry structure with horizontally and vertically adjustable electrode spacing, this machine handles both single-row and multi-row stiffener welding with unmatched flexibility.

What sets the AT-MF25K apart is its servo-driven feeding and welding system — operators load the sheet metal once, and the machine automatically completes all weld points in a single clamping cycle. The MFDC (Medium Frequency Direct Current) inverter power supply delivers rapid welding cycles while preserving zinc coating integrity on galvanized sheets, ensuring weld spots remain color-consistent and free from burn-through or zinc spattering.

Trusted by leading manufacturers including Fast Elevator, the AT-MF25K is the go-to solution for elevator door panel production lines requiring high throughput and zero-defect welds.

Working Principle

The AT-MF25K employs MFDC (Medium Frequency Direct Current) spot welding technology operating at 1000Hz inverter frequency. The gantry structure provides rigid support for multiple welding transformers, while servo motors drive precise horizontal and vertical positioning of electrode heads. Weld parameters (current, time, pressure) are precisely controlled through the human-machine interface (HMI), allowing operators to set weld row count and spacing directly on the touchscreen.

Key Features

Feature	Specification
Structure	Heavy-duty gantry frame with adjustable electrode spacing
Weld Rows	Configurable from single to multi-row patterns
Row Spacing	Set via HMI touchscreen (adjustable)
Feeding System	Servo-driven automatic feeding & welding
Single Clamping	Completes all weld points in one setup
Power Supply	MFDC inverter (Medium Frequency DC)
Zinc Protection	No discoloration or zinc burn-off on galvanized sheets
Control Interface	User-friendly HMI for parameter setting

Technical Specifications

Parameter	Specification
Model	AT-MF25K
Input Power	3Φ4W 380V±10%, 50/60Hz
MFDC Power Capacity	25KVA (upgradable with additional units)
Inverter Frequency	1000Hz
Current Control Accuracy	±1%
Duty Cycle	≥50%
Repeat Positioning Accuracy	≤±0.15mm
Cooling System	Water-cooled
Certifications	ISO 9001, CE
