Name: Gantry Multi Head Condenser Welding Machine Designed for Automated Spot Welding in Large Scale Production Environments
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx2
Price: 375,000.00 USD
Availability: InStock

Home > products > Condenser Welding Machine >

Gantry Multi Head Condenser Welding Machine Designed for Automated Spot Welding in Large Scale Production Environments

Place of Origin:

CHINA

Brand Name:

HWASHI

Certification:

Model Number:

WL-SQ-MF160Kx2

Request A Quote

Product Details

Product Name:

Refrigerator Wire Tube Condenser Production Line Machine Welding Bending Machine Metal Wire Processing

Effective Welding Width:

600-1000mm (customized)

Warranty:

1 Year

Transformer:

MF DC Transformer

Dimension(L*W*H):

5000x2400x2200mm

Weight:

2500KG

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Sea worthy wooden package of PVC Film for FCL

Delivery Time

30 - 60 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Automated High-Speed Condenser Welding Machine with Adjustable Effective Width 600-1000mm and MF DC Transformer for Wire Tube Condenser Production Line

Get Best Price

Video

Automated High-Speed Condenser Welding Machine with Adjustable Effective Width 600-1000mm and MF DC Transformer for Wire Tube Condenser Production Line

Get Best Price

Video

Automated High-Speed Condenser Welding Machine with Adjustable Effective Width and MFDC Power Supply for Wire Tube Condenser Production

Get Best Price

Video

Fully Automatic Ironing Board Manufacturing Line — From Raw Tube to Finished Product, Zero Manual Handling

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Automated High-Speed Condenser Welding Machine

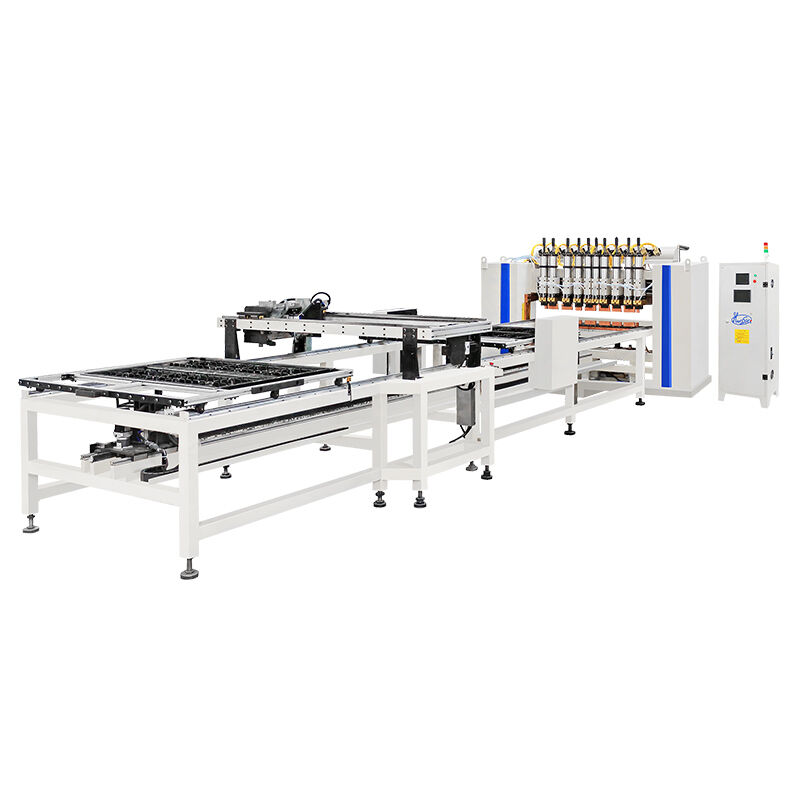

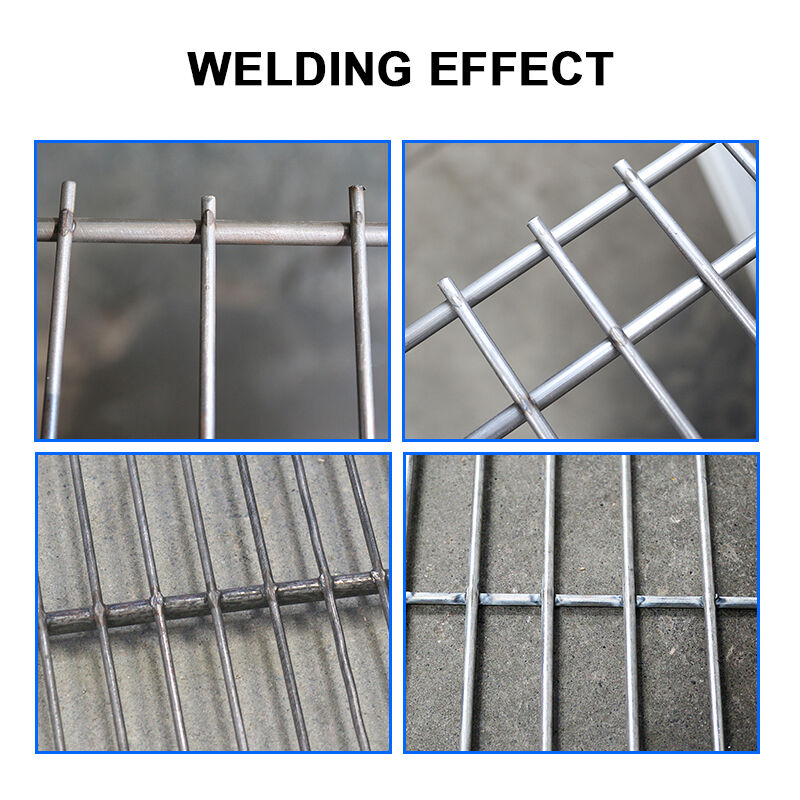

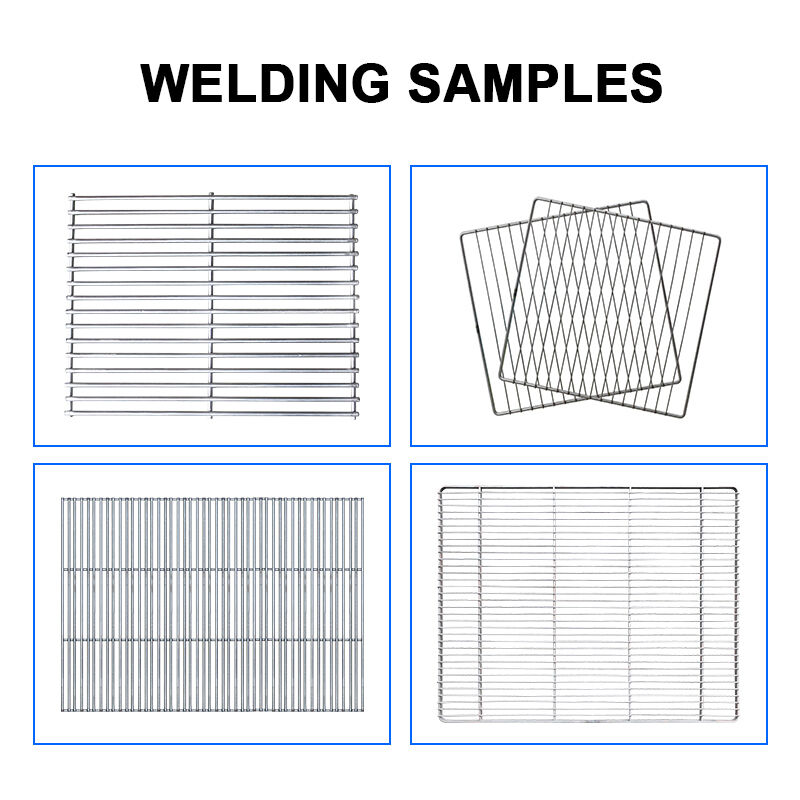

The Automated High-Speed Condenser Welding Machine is a gantry-type multi-head spot welding system engineered for high-volume wire-on-tube (WOT) condenser manufacturing. Designed specifically for refrigerator, freezer, and commercial refrigeration production lines, this machine delivers precise, consistent wire-to-tube welds at industrial scale.

Equipped with multiple synchronized welding heads and a servo-driven double-layer feeding system, the machine executes the entire welding cycle automatically after material loading — from wire positioning to multi-point simultaneous welding and fixture exchange. The adjustable effective welding width accommodates a wide range of condenser panel sizes, eliminating the need for dedicated tooling changes between product specifications.

Combined with a PLC-controlled intelligent welding system capable of storing up to 101 welding models, operators can switch between condenser designs in minutes rather than hours. The medium-frequency inverter DC power supply ensures superior weld quality with precise current control, minimal spatter, and stable output — even under factory power fluctuations of ±10%.

Key Advantages

Fully Automated Welding Cycle: Complete autonomous execution including fixture stepping, multi-head simultaneous welding, and automatic fixture exchange. Dual-layer feeding enables uninterrupted batch production.
Adjustable Effective Welding Width: Freely adjustable to accommodate various condenser specifications without mechanical modification, reducing capital investment and floor space requirements.
Multi-Head Gantry Welding System: Multiple welding heads operate simultaneously with individually controllable parameters, ensuring uniform weld quality across the entire condenser panel.
Intelligent Welding Parameter Management:
- 101 stored welding models with quick-change capability
- 3 selectable pressurized curves for different material combinations
- PLC-controlled with color touch screen HMI
- Password-protected parameter storage
Superior Weld Quality with MFDC Power: Precise current adjustment, higher power factor (0.85–0.90), three-phase balanced load, and maximum secondary short-circuit current up to 40 KA.
Voltage Stability: Built-in network voltage floating compensation maintains secondary output voltage within ±3% despite input power fluctuations of ±10%.
Industrial-Grade Durability: Grade F insulated transformers, 50% duty cycle, comprehensive water-cooling system, robust steel frame, and comprehensive safety features.

Technical Specifications

Parameter	Specification
Model	WL-SQ-150K*2 (Customizable)
Input Power	Three-phase 380V±10% 50/60Hz
Rated Capacity	150 KVA * 2 (Customizable: 100KVA, 160KVA)
Rated Duty Cycle	50%
Secondary Voltage Adjustment	2 Steps
Maximum Secondary Short-circuit Current	40 KA
Transformer Insulation Grade	Grade F
Network Voltage Compensation	Input ±10% → Output ≤±3%
Welder Pressurized Curves	3 types
Storage of Welding Models	101 types
Effective Welding Length	1500 mm (Customizable up to 2000 mm)
Effective Welding Width	600 mm (Customizable: 600–1200 mm, dual-zone available)
Upper Electrode Stroke	80 mm
Lower Electrode Adjustable Stroke	30 mm
Automatic Moving Speed	200–500 mm/s (adjustable)
Control Mode	PLC + Touch Screen HMI
Cooling System	Water-cooled (transformer, thyristor, electrodes)
Machine Dimension	~6500 * 2500 mm (depends on configuration)
Machine Weight	~1500 kg
