Mid-Range Pneumatic IBC Tubular Frame Welding Station 65 Points/Min 45-55 Frames Per Shift Competitive Price

Pneumatic IBC welding station 65 points/min

IBC tubular frame welder 45-55 frames/shift

Mid-range IBC welding machine competitive price

Place of Origin:

Guangdong, China

Certification:

ISO 9001:2015, CE

Request A Quote

Product Details

Welding Speed:

65 Weld Points/min

Production Capacity:

45-55 Frames / 8-hour Shift

Welding Heads:

2 Pneumatic Heads, 80mm Cylinder Bore

Control System:

Delta PLC With 7-inch Resistive Touchscreen

Frame Dimensions:

Up To 1200x1000mm, Various Tube Configurations

Tube Size Range:

20x20mm To 40x40mm, Wall 1.5-3.0mm

Power Rating:

80 KVA, 380V 3-phase 50/60Hz

Cooling System:

Integrated Circulation Pump, 15L/min

Compressed Air:

0.5-0.7 MPa, 450L/min

Cycle Time:

55-70 Seconds Per Frame

Fixture Changeover:

Under 10 Minutes With Quick-release Clamps

Machine Dimensions:

2400x1400x1650mm

Total Weight:

1250 Kg

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 11000-16000 / Set

Packaging Details

Export-grade plywood case with anti-corrosion VCI packaging for pneumatic components

Delivery Time

18-25 working days

Payment Terms

T/T,L/C,Western Union

Supply Ability

30 Sets per Month

Versatile IBC Cage Frame Combo Welding Machine Dual-Mode 60 Points/Min 40-50 Units Per Shift Multi-Purpose

Get Best Price

Video

Pneumatic High-Efficiency IBC Mesh Welding System 75 Points/Min 100-115 Panels Per Shift Brazilian Market Proven

Get Best Price

Video

Entry-Level Automatic IBC Cage Production Cell 55 Points/Min Modular 30-40 Cages Per Shift Affordable Starter Solution

Get Best Price

Video

CNC Servo IBC Frame Welding Center with 0.01mm Positioning Accuracy 150 Weld Points/Min and 70-90 Frames Per Shift

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

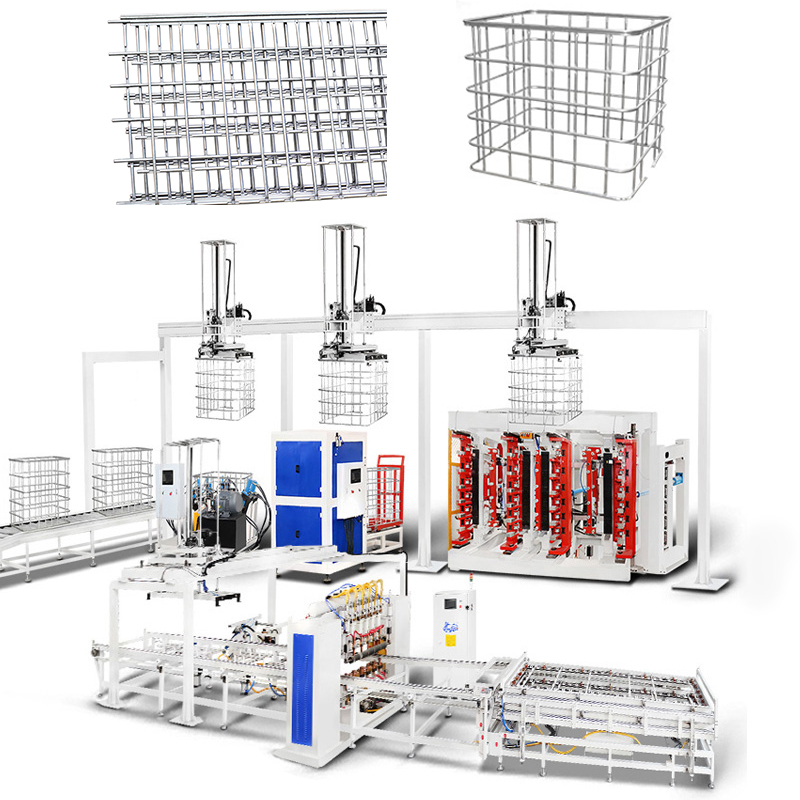

Mid-Range Pneumatic IBC Tubular Frame Welding Station

💰 The Sweet Spot — Performance That Justifies Every Euro, Real, and Lira

The machine occupies the optimal balance point: 65 weld points per minute producing 45-55 frames per 8-hour shift at USD 11,000-16,000. Turkish manufacturer Bursa IBC reported 58% higher frame output per operator compared to their previous generic spot welder, while a Portuguese customer documented €0.18 per frame total operating cost. Brazilian distributor data shows IBC-TFS-65M has the lowest warranty claim rate (1.2%) in its class, with over 40 units operating across Europe, Turkey, and Brazil. It is the value-optimized workhorse for manufacturers who need reliable output without the premium automation price tag.

Key Value Features

80mm Bore Pneumatic Heads	Oversized for the price class — delivers 1.2kN clamping force with smooth retract cycle
Delta PLC with Touchscreen	15-program memory with graphical weld sequence display — operator-friendly for multilingual teams
Quick-Release Fixture Clamps	Under 10-minute frame size changeover — supports mixed batch production efficiently
VCI Corrosion Protection	All pneumatic components treated with VCI for long sea freight to Brazil without corrosion
60Hz Inverter-Ready	Pre-configured for 60Hz markets — plug-and-play for Brazil with no electrical modifications

Value Data (Customer-Verified)

40+

Units Operating Across 3 Continents

1.2%

Warranty Claim Rate (Class Best)

€0.18

Operating Cost per Frame (Portugal)

Regional Market Advantages

🇹🇷 Turkey: Largest installed base in Bursa-Istanbul industrial corridor; Turkish-language HMI and manual available
🇧🇷 Brazil: 60Hz native support; INMETRO-compliant electrical cabinet; local spare parts in São Paulo warehouse
🇪🇺 Europe: CE and EMC certified; 400V/50Hz standard; supported by distribution partners in Portugal, Spain, and Italy

📦 Package Includes: Welding station with dual 80mm pneumatic heads, Delta PLC with 7-inch touchscreen, quick-release fixture kit (3 frame sizes), water cooling pump, spare electrode set (30 tips), VCI-protected pneumatic components, English/Portuguese/Turkish operation manual, CE compliance documentation.
