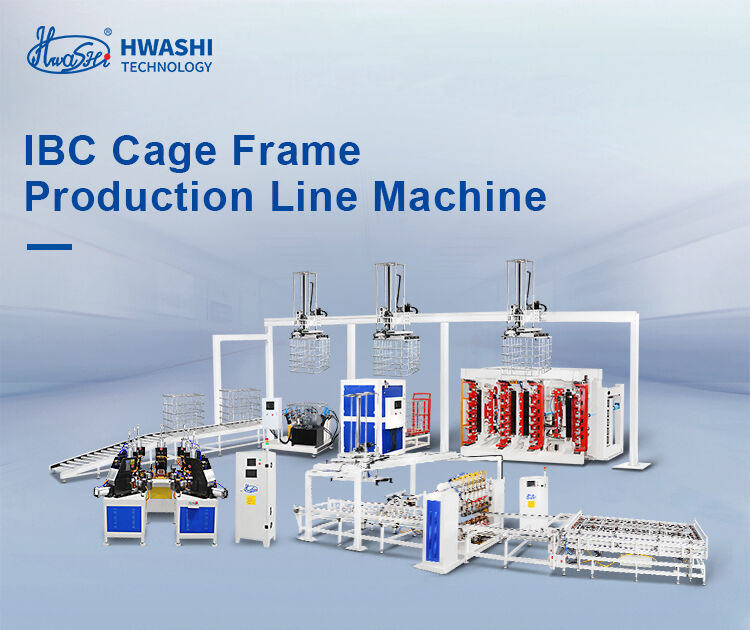

Versatile IBC Cage Frame Combo Welding Machine Dual-Mode 60 Points/Min 40-50 Units Per Shift Multi-Purpose

IBC cage frame welding machine

dual-mode IBC welding machine

high-speed IBC welding machine

Place of Origin:

Guangdong, China

Certification:

ISO 9001:2015, CE

Request A Quote

Product Details

Operating Modes:

Frame Mode / Cage Assembly Mode (switchable)

Welding Speed:

60 Weld Points/min (both Modes)

Production Capacity:

40-50 Complete Units / 8-hour Shift

Welding Heads:

2 Convertible Pneumatic Heads With Quick-change Electrode Holders

Control System:

Delta PLC With 7-inch Touchscreen, 2-mode Program Sets

Mode Changeover Time:

Under 15 Minutes With Tool-free Fixture Swap

IBC Cage Dimensions:

1200x1000x1150mm Standard

Wire/Tube Range:

3.0-5.0mm Wire / 20x20mm To 40x40mm Tube

Power Rating:

85 KVA, 380V 3-phase 50/60Hz

Cooling System:

Integrated Circulation, 14L/min

Compressed Air:

0.5-0.7 MPa, 500L/min

Machine Dimensions:

3000x2000x1750mm

Total Weight:

1600 Kg

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 14000-20000 / Set

Packaging Details

Export-grade plywood case with dedicated fixture storage compartment and waterproof accessory box

Delivery Time

22-30 working days

Payment Terms

T/T,L/C,Western Union

Supply Ability

25 Sets per Month

Versatile IBC Cage Frame Combo Welding Machine Dual-Mode 60 Points/Min 40-50 Units Per Shift Multi-Purpose

Get Best Price

Video

Pneumatic High-Efficiency IBC Mesh Welding System 75 Points/Min 100-115 Panels Per Shift Brazilian Market Proven

Get Best Price

Video

Entry-Level Automatic IBC Cage Production Cell 55 Points/Min Modular 30-40 Cages Per Shift Affordable Starter Solution

Get Best Price

Video

CNC Servo IBC Frame Welding Center with 0.01mm Positioning Accuracy 150 Weld Points/Min and 70-90 Frames Per Shift

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Versatile IBC Cage & Frame Combo Welding Machine

💰 Two Machines for the Price of One — Capital Efficiency at Its Best

The machine is the only machine in its class that produces both tubular frames and complete IBC cage assemblies on a single platform. Priced at USD 14,000-20,000 — typically 35-40% less than buying separate frame and cage welders — it delivers 60 weld points per minute producing 40-50 complete IBC units per 8-hour shift. Turkish manufacturer Izmir Cage Systems reduced their machine count from 3 units to 2 CMB-60Vs while increasing total output by 25% through better workflow integration, saving USD 16,000 in equipment cost. A Brazilian producer in Curitiba confirmed the CMB-60V handles their full product range (4 frame sizes, 2 cage types) with under-15-minute mode changes, eliminating production bottlenecks.

Key Value Features

Dual-Mode Operation	Frame welding and cage assembly on one machine — switch via HMI program select in 15 minutes
Quick-Change Electrode Holders	Convertible between frame-mode dome tips and cage-mode flat tips without tools
2-Mode Program Memory	Separate weld parameter sets for frame and cage mode — 10 programs per mode, 20 total
Dedicated Fixture Storage	Built-in storage compartment keeps both fixture sets organized within the machine frame
Single Power/Cooling Infrastructure	One electrical connection, one water circuit, one air supply — simplifies factory setup

Value Data (Customer-Verified)

35-40%

Savings vs. Separate Machines

+25%

Output Gain with Fewer Machines

$16K

Equipment Cost Saved (Izmir, Turkey)

Regional Market Advantages

🇹🇷 Turkey: Highest adoption in Izmir-Ankara IBC manufacturing cluster; Turkish HMI, on-site training available within 5 days
🇧🇷 Brazil: Popular with Curitiba and São Paulo manufacturers needing flexible production; 60Hz native support, local stock
🇪🇺 Europe: Ideal for smaller EU manufacturers wanting production flexibility without multiplying machine count

📦 Package Includes: Dual-mode welding unit, 2 convertible pneumatic welding heads, quick-change electrode holder set (frame + cage), Delta PLC with 7-inch touchscreen (2-mode configured), both fixture sets (frame + cage), integrated fixture storage, water cooling pump, spare electrode kit (40 tips), English/Turkish/Portuguese operation manual.
