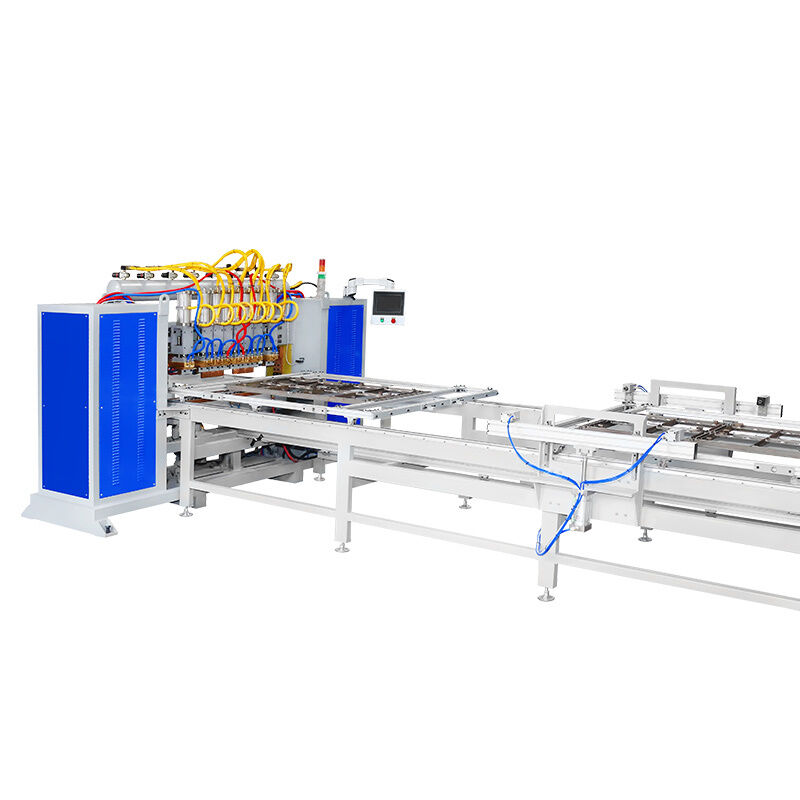

Name: Hwashi WL-HS-300K High Speed 1.0m/sec Automatic Refrigerator Condenser Wire Mesh Spot Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-HS-300K
Price: 29.00 USD
Availability: InStock

Home > products > Condenser Welding Machine >

Hwashi WL-HS-300K High Speed 1.0m/sec Automatic Refrigerator Condenser Wire Mesh Spot Welding Machine

High Speed Condenser Welding Machine

1.0m/sec Wire Mesh Spot Welder

Fast Cycle Condenser Production Line

Place of Origin:

Guangdong, China

Brand Name:

Hwashi

Certification:

ISO 9001:2015

Model Number:

WL-HS-300K

Request A Quote

Product Details

Welding Speed:

1.0m/sec (Max)

Welding Heads:

8 Heads

Wire Diameter Range:

1.2-5.0mm

Mesh Size Range:

60x60mm To 120x120mm

Power Supply:

380V/440V 3-Phase 50/60Hz

Control System:

CNC Servo Motor Drive

Cycle Time:

2.5 Seconds Per Mesh

Machine Dimensions:

5200x2000x2400mm

Machine Weight:

3200kg

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 18,000-40,000 / Set

Packaging Details

Export-grade plywood case with anti-rust protection and foam cushioning

Delivery Time

30-45 working days after deposit

Payment Terms

T/T,L/C

Supply Ability

40 Sets per Month

Hwashi Energy Saving Inverter Condenser Wire Mesh Welding Machine with Low Power Consumption

Get Best Price

Video

Hwashi WL-MM-180K Multi Material Stainless Steel Copper Aluminum Condenser Wire Mesh Spot Welding Machine

Get Best Price

Video

Hwashi Gantry Multi-Head Wire Mesh Welder | High-Speed Row Welding System

Get Best Price

Video

Automated High-Speed Condenser Welding Machine with Adjustable Effective Width 600-1000mm and MF DC Transformer for Wire Tube Condenser Production Line

Get Best Price

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact Now

Product Description

Hwashi WL-HS-300K High Speed 1.0m/sec Automatic Condenser Wire Mesh Spot Welding Machine

The Hwashi WL-HS-300K is a high speed condenser welding machine engineered to achieve up to 1.0 meter per second welding speed, setting a new benchmark for mass production efficiency. Equipped with CNC servo motor drives and an optimized 8-head configuration, this machine delivers rapid cycle times of just 2.5 seconds per wire mesh, making it the ideal choice for high-volume refrigerator condenser manufacturers.

Key Features

1.0m/sec Welding Speed: Industry-leading speed achieved through high-frequency inverter welding technology and precision servo-driven feeding systems.
2.5 Second Cycle Time: Each wire mesh completed in just 2.5 seconds, enabling mass production output of up to 1,440 pieces per hour.
CNC Servo Motor Drive: High-precision servo motors ensure accurate wire positioning, consistent weld spacing, and smooth material flow throughout the production cycle.
High-Frequency Inverter Welding: Advanced inverter power supply delivers stable welding current with fast response, reducing spatter and energy consumption.
Automatic Wire Straightening and Feeding: Integrated 12-roller wire straightening unit with servo-controlled feeding for precise wire length and tension.
Quick Changeover System: Modular tooling design enables fast changeover between different condenser models in under 15 minutes.
Built-in Quality Monitoring: Real-time weld current monitoring with automatic rejection of out-of-spec welds ensures consistent product quality.
Heavy-Duty Construction: Reinforced welded steel frame with vibration-damping mounts for stable operation at maximum speed.

Technical Specifications

Model	WL-HS-300K
Welding Speed	1.0m/sec (Max)
Welding Heads	8 Heads
Cycle Time	2.5 seconds per mesh
Wire Diameter Range	1.2-5.0mm
Mesh Size Range	60x60mm to 120x120mm
Power Supply	380V/440V 3-Phase 50/60Hz
Control System	CNC Servo Motor Drive
Machine Dimensions	5200x2000x2400mm
Machine Weight	3200kg

Application

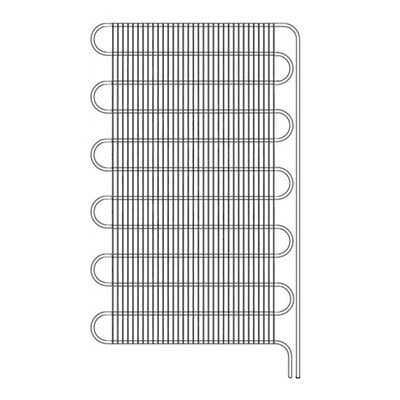

Ideal for mass production of wire mesh condensers for household refrigerators, commercial freezers, and air conditioning systems. Optimized for continuous 24/7 operation in high-output manufacturing environments.

After-Sales Service

Professional installation and commissioning team
Comprehensive operator training program
12-month full warranty with priority remote support
Lifetime technical consultation and spare parts availability
