WWM-1200 Automatic Wire Mesh Welding Machine 1200mm Welding Width 2-5mm Wire Diameter Construction Mesh Making

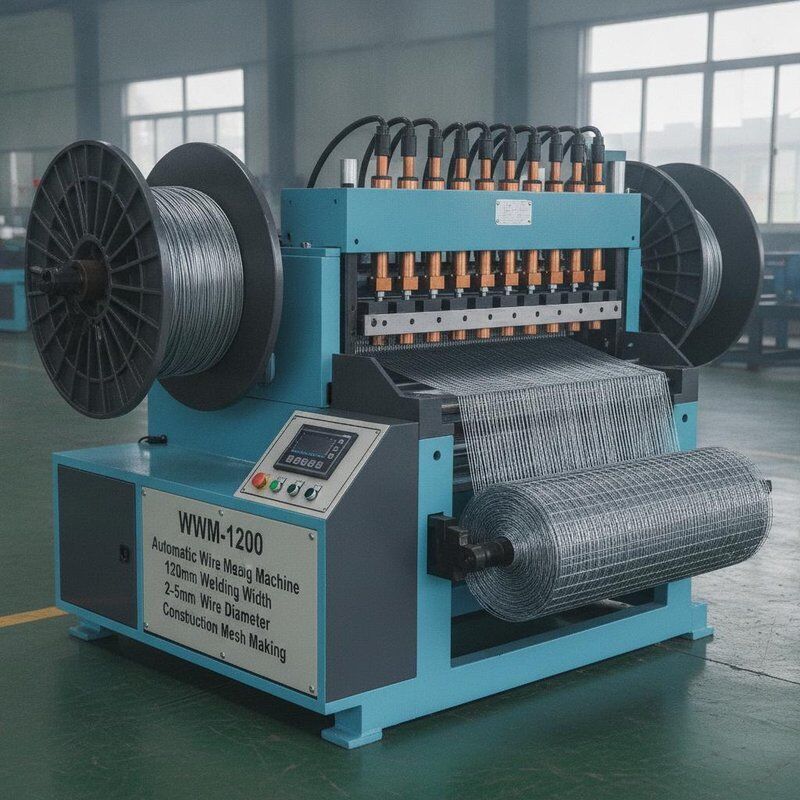

WWM-1200 Automatic Wire Mesh Welding Machine

WWM-1200 is a fully automatic wire mesh welding machine engineered for high-performance, labor-saving production of construction and reinforcement mesh. It integrates servo-driven welding heads, PLC touch-screen control and an automatic wire straightening-feeding-cutting system, so one operator can run multiple machines simultaneously, dramatically reducing labor cost while keeping output stable and precise.

Key Features

• High Performance Welding: 55 welding points per minute with servo motor precision positioning, ensuring consistent weld strength and pitch accuracy.
• No Labor Cost Needed: fully automatic wire feeding, straightening, cutting and discharging; one worker supervises the whole line, saving up to 80% labor cost.
• PLC + Touch Screen Control: PLC + Touch Screen allows quick recipe setting for mesh pitch, wire diameter and panel length; parameters are stored for one-key repeat production.
• Automatic Wire Straightening System: built-in straightening rollers remove wire curvature before welding, improving mesh flatness and reducing material waste.
• Stable Welding Transformer: 100 kVA rated power with water-cooled welding transformer delivers strong, uniform nuggets on 2-5mm wire.
• Rigid Frame Design: heavy-duty steel frame with Servo Motor drive ensures long service life and low maintenance.

Technical Specifications

Applications

construction and reinforcement mesh production, widely used in construction reinforcement, security fencing, gabion baskets, highway guardrail, bridge deck and agricultural mesh panels.

Why Choose Us

• Factory direct price: USD 22,000-36,000 / Set
• ISO 9001:2015 and CE certified production line
• Free installation guidance and operator training
• 12 months warranty with lifelong technical support
• One operator, multiple machines: the true labor-free solution for mesh producers
