CNC 3 Axis Servo Sink Seam Welding Machine 160kVA Stainless Steel Kitchen Sink Welder

Product Overview

The HWASHI CNC 3 Axis Servo Sink Seam Welding Machine is a specialized automated solution engineered to deliver flawless, high-strength seams for stainless steel kitchen sink bowls, a critical component in kitchen utensil manufacturing. Rated at 160kVA, it addresses the unique challenge of welding thin-gauge stainless steel from 0.8 mm to 2.0 mm while maintaining airtight, leakproof joints.

Key Features

• CNC 3 Axis Servo Control: Japan Mitsubishi servo motors control the X axis mould travel, Y axis electrode vertical stroke and 360° electrode rotation, and can store up to 95 welding programs for fast switching between sink models.
• High Frequency Resistance Seam Welding: Servo-driven welding wheel concentrates heat precisely along curved or straight seams to produce overlapping molten weld cores with a fully sealed joint.
• Large Flat Copper Platform Electrode: A large flat copper table guarantees stable, uniform conductivity and minimizes heat distortion on thin stainless steel sheets.
• Adaptive Current Control: Welding parameters adjust in real time according to material type (SS304 / SS316) and seam length, ensuring consistent weld strength with shear strength of 300 MPa or more.

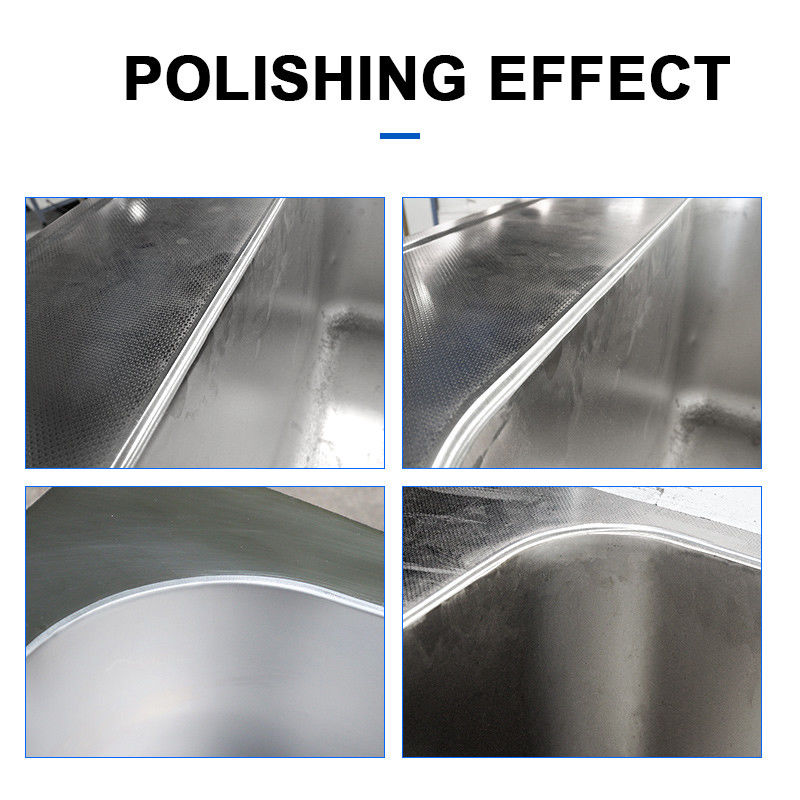

• Smooth Post-Weld Surface: Surface roughness of Ra ≤ 0.8 μm is achieved directly after welding, eliminating manual grinding and polishing steps.

Technical Specifications

Applications

• Kitchen sink bowl seam welding for residential and commercial sinks
• Stainless steel sink production lines and OEM sink factories
• Restaurant, hotel and canteen kitchen equipment manufacturing
• Utensil, basin and similar thin-gauge stainless steel housing production

Why Choose This Machine

• Weld once and pass the leak test, cutting rework and scrap cost
• One operator can run multiple sink models without long changeover time
• Food-grade weld quality suitable for hygiene-sensitive applications
• Backed by CE, CCC and ISO 9001 certification for export markets

Tell us your sink size and daily output target, and our engineers will recommend the most suitable welding configuration and tooling for your production line.
