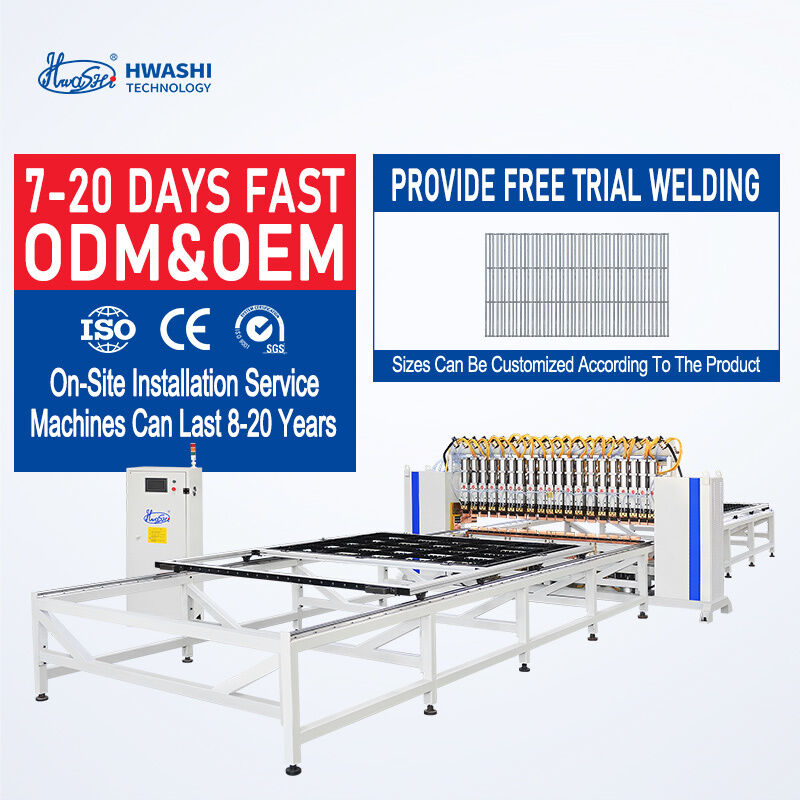

HW-AM1150M Masonry Ladder Mesh Welding Machine 1150mm Width Truss Reinforcement Line

Masonry Ladder and Truss Mesh Welding Machine

The HW-AM1150M is a 1150mm ladder mesh welding machine for masonry and truss type wall reinforcement built for US and Latin American masonry product suppliers serving block and brick wall reinforcement demand. It combines a rigid stress-relieved frame, a 110 kVA medium frequency DC welding transformer and a PLC touchscreen HMI, so a single operator can hold consistent nugget strength across a full shift.

Why Buyers in the Americas Choose This Model

• Ladder layout tooling matches standard masonry reinforcement widths used on American block walls.
• Truss type option adds diagonal wire insertion for higher bending stiffness.
• High cycle rate keeps a small crew supplied with reinforcement all day.
• Galvanized wire welded with low heat to retain coating in mortar contact.
• Roll and bundle output formats selectable to suit your distribution packaging.

Built-In Customization Capability

• Ladder width, rung pitch and rail wire size built to your product catalogue.
• Optional truss diagonal wire insertion station.
• Custom coiling and strapping equipment for distribution ready bundles.
• Machine voltage configured for your plant before shipment.

Technical Specifications

Typical Applications

• Masonry block wall reinforcement
• Brick veneer ladder reinforcement
• Truss type wall reinforcement mesh
• Concrete crack control strips

Custom Order Workflow

1. Send us your mesh drawing, panel size, wire diameter and target output per shift.
2. Our engineers return a tooling layout, cycle-time estimate and a fixed quotation within 48 hours.
3. Confirm the layout, then we machine the electrodes, fixtures and wire feeding rails for your mesh only.
4. Pre-acceptance video test with your wire sample, then seaworthy packing and container loading plan.

Delivery, Compliance and Service

Machines are wired to the destination grid on request: 480V/60Hz three phase for the United States and Canada, 440V/60Hz for Chile and Peru, 220V/60Hz single or three phase for Mexico, Colombia and Brazil. Control cabinets ship with English and Spanish HMI screens, a full electrical schematic and a spare-electrode kit. Certification documents for CE, CCC and ISO 9001:2015 are supplied with the shipping documents, and 24-hour remote technical support is available in English and Spanish.

Ask for a customized proposal today and we will match the machine, tooling and packing to your exact panel program.
