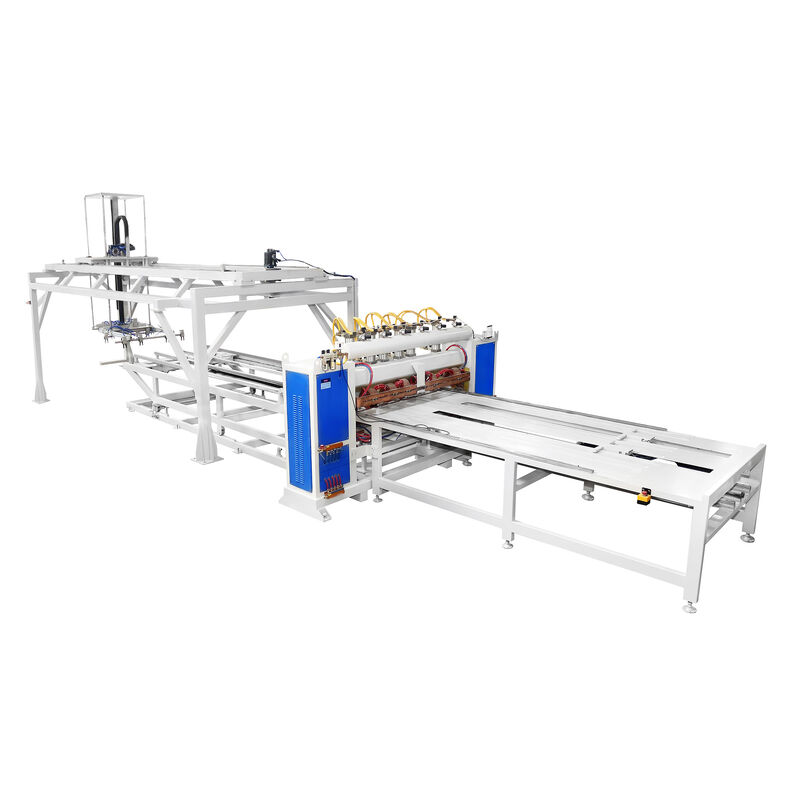

HW-AM1550K Filter Cage Mesh Welding Machine 1550mm Width Cooling Tower Screen Line

Filter Cage and Cooling Tower Screen Welding Machine

The HW-AM1550K is a 1550mm screen mesh welding machine for industrial filter cages and cooling tower panels built for American HVAC, water treatment and industrial filtration equipment builders. It combines a rigid stress-relieved frame, a 140 kVA medium frequency DC welding transformer and a PLC touchscreen HMI, so a single operator can hold consistent nugget strength across a full shift.

Why Buyers in the Americas Choose This Model

• Stainless wire welded with argon assist option to protect corrosion resistance at the nugget.
• Optional cylindrical forming station delivers finished filter cages off one line.
• Dense screen mesh welded without wire distortion so airflow stays uniform.
• Suitable for potable water and HVAC components with full material traceability.
• Voltage configured for 480V 60Hz and 440V 60Hz destinations.

Built-In Customization Capability

• Cage diameter, length and mesh count built to your filter element drawing.
• Optional pleat support and end cap welding fixtures.
• Custom stainless grade handling from 304 to 316L.
• Machine layout adapted to your existing filter assembly cell.

Technical Specifications

Typical Applications

• Industrial liquid and air filter cages
• Cooling tower drift eliminator screens
• HVAC filter support frames
• Water treatment screen baskets

Custom Order Workflow

1. Send us your mesh drawing, panel size, wire diameter and target output per shift.
2. Our engineers return a tooling layout, cycle-time estimate and a fixed quotation within 48 hours.
3. Confirm the layout, then we machine the electrodes, fixtures and wire feeding rails for your mesh only.
4. Pre-acceptance video test with your wire sample, then seaworthy packing and container loading plan.

Delivery, Compliance and Service

Machines are wired to the destination grid on request: 480V/60Hz three phase for the United States and Canada, 440V/60Hz for Chile and Peru, 220V/60Hz single or three phase for Mexico, Colombia and Brazil. Control cabinets ship with English and Spanish HMI screens, a full electrical schematic and a spare-electrode kit. Certification documents for CE, CCC and ISO 9001:2015 are supplied with the shipping documents, and 24-hour remote technical support is available in English and Spanish.

Ask for a customized proposal today and we will match the machine, tooling and packing to your exact panel program.
