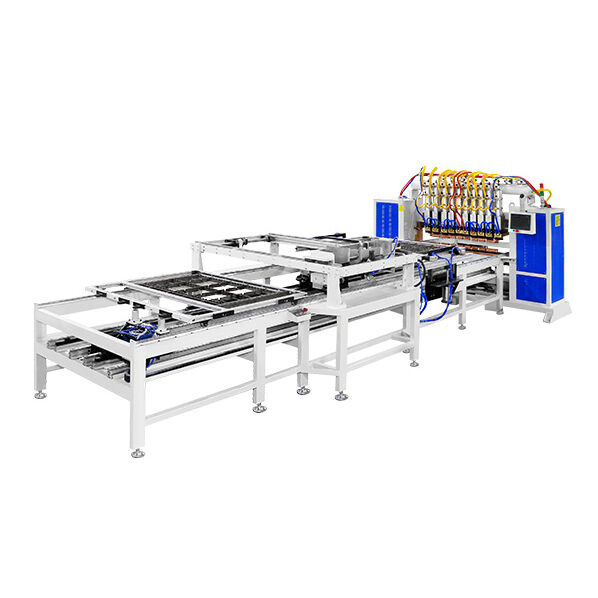

HW-AM1900X Custom Wire Mesh Welding Line Drawing Based Tooling 1900mm Width 60Hz

Custom Engineered Wire Mesh Welding Line

The HW-AM1900X is a 1900mm custom welding line engineered from your mesh drawings and output targets built for American OEM brands and private label suppliers that need a dedicated line for a proprietary mesh product. It combines a rigid stress-relieved frame, a 200 kVA medium frequency DC welding transformer and a PLC touchscreen HMI, so a single operator can hold consistent nugget strength across a full shift.

Why Buyers in the Americas Choose This Model

• One engineering contact owns your project from drawing review to final acceptance video.
• Mixed wire diameters in a single panel handled by independently controlled heads.
• Recipe management keeps proprietary mesh parameters locked to your account.
• Line voltage, HMI language and documentation set for your American plant.
• Optional remote diagnostics module for fast support from our engineering team.

Built-In Customization Capability

• Full custom tooling design from your 2D or 3D mesh drawing, including fixtures and electrodes.
• Configurable head count, pitch range and panel envelope to match your product.
• Integration with your existing straightener, bender or packing line.
• Prototype sampling service before you commit to the full line.

Technical Specifications

Typical Applications

• Private label mesh products for retail brands
• Proprietary industrial mesh components
• New product development and pilot lines
• Specialty architectural mesh panels

Custom Order Workflow

1. Send us your mesh drawing, panel size, wire diameter and target output per shift.
2. Our engineers return a tooling layout, cycle-time estimate and a fixed quotation within 48 hours.
3. Confirm the layout, then we machine the electrodes, fixtures and wire feeding rails for your mesh only.
4. Pre-acceptance video test with your wire sample, then seaworthy packing and container loading plan.

Delivery, Compliance and Service

Machines are wired to the destination grid on request: 480V/60Hz three phase for the United States and Canada, 440V/60Hz for Chile and Peru, 220V/60Hz single or three phase for Mexico, Colombia and Brazil. Control cabinets ship with English and Spanish HMI screens, a full electrical schematic and a spare-electrode kit. Certification documents for CE, CCC and ISO 9001:2015 are supplied with the shipping documents, and 24-hour remote technical support is available in English and Spanish.

Ask for a customized proposal today and we will match the machine, tooling and packing to your exact panel program.
