| Place of Origin: | China |
| Brand Name: | HWASHI |
| Certification: | CE/CCC/ISO |
| Model Number: | HS-RC06L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | sea worthy wooden package |
| Delivery Time: | 7-30 working days after received your payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 sets per month |
| Name: | High Automation Degree Automatic Welding Robot With Different Functions | Application: | Transporting |
|---|---|---|---|
| Size: | 600x1300x1700mm | Weight: | 800kg |
| Effective Load: | 6kg | Warranty: | 12 Months |
| Moving Radius: | 2000mm | Repeat Positioning Accuracy: | ±0.05mm |
| High Light: | robotic spot welding machine,automatic welding robot |
||

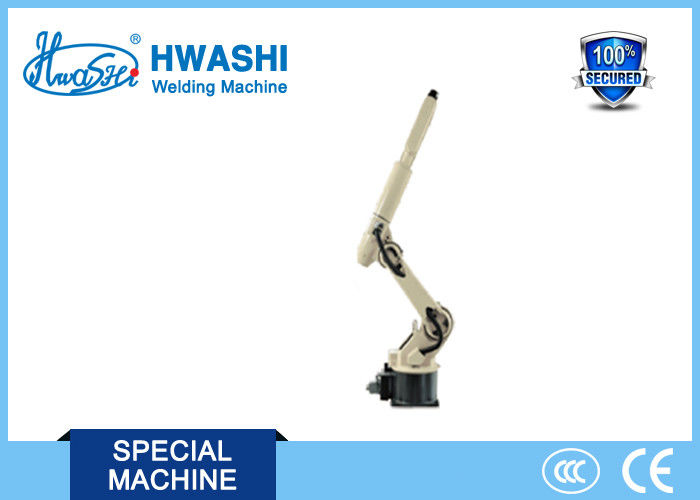

High Automation Degree Automatic Welding Robot with Different Functions
DESCRIPTION
1. Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design results in high acceleration and minimum vibration. Maximum speed on all axes reduces move time. All this provides dramatically improved productivity.
2. Multiple-axis and reduced profile spot welding robots provide higher robot density in a smaller footprint, which reduces production line length and take time.
3. Independent research welding industrial robots,own vertical several joints of welding manipulator structure, using three horizontal arm, and a vertical arm to determine spatial coordinates, large range of movement, flexible go.
4. Independent research and programming technology, through the acquisition of manual control welding torch move along the weld line track signal, automatic memory and generate control procedures;to improve the welding quality and efficiency.
5. Independent research the programmable controller in CNC welding machine, to facilitate the traditional upgrades for CNC welding machine, welding machine to save the cost, and make it become the network communication function of the welding robot.
SPECIFICATION
|
Model |
HS-RC06L |
|
|
DOF |
6 |
|
|
Driving Mode |
AC servo Driving |
|
|
Effective Load (kg) |
6 |
|
|
Repeat Positioning Accuracy (mm) |
±0.05 |
|
|
Motion Range (°) |
J1 |
±170 |
|
J2 |
±132~-85 |
|
|
J3 |
±73~-163 |
|
|
J4 |
±180 |
|
|
J5 |
±133 |
|
|
J6 |
±360 |
|
|
Max Speed (°/S) |
J1 |
150 |
|
J2 |
163 |
|
|
J3 |
111 |
|
|
J4 |
125 |
|
|
J5 |
300 |
|
|
J6 |
198 |
|
|
Allowable Max Torque |
J4 |
394 |
|
J5 |
50 |
|
|
J6 |
22 |
|
|
Moving Radius (mm) |
2000 |
|
|
Machine Weight |
305 |
|
***********************************************************************************************
We can design and manufacture the welding equipment according to your request/drawing, contact us please, we will offer you a suit solution and support you to success.
APPLICATION
Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying industry.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. Quick Delivery: Our company provides just-in-time delivery.
5. Prompt Response to Customers: Your satisfaction is the goal we pursue.
