CNC Automatic Mobile Double-head Welding Machine for Door Panel

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SF-MF75K
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detail Information
Product Name: CNC Automatic Mobile Double-head Welding Machine For Door Panel Application: Welding For Sheet Metal
Size: 2500x3200x2300mm Weight: 3000kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
High Light:

metal welding equipment


head welding machine

Product Description

CNC Automatic Mobile Double-head Welding Machine for  Door Panel








Input Voltage



Input Power



Input Current

150 A


Output Voltage

DC5.5 V


Max.Welding Current

15000 Ax2


Welding Specification

101 Kinds


Different Welding Current



Effective Size Of Welding Platform



X Axis Effective Width

850 mm


Y Axis Effective Width

600 mm


X Axis Servo Motor

2 Sets


Y Axis Servo Motor

2 Sets


Feeder Moving Speed

800 mm/sec


Servo Motor Power

450 W


Welding Cylinder

2 NO.(80x50mm)


Upper Welding Electrode

2 Sets


Lower Electrode

full flat table





This machine is extremely suitable for welding metal sheet in electronic appliances,automobile and other industries.





According to the product, and the characteristics of long secondary of automatic moving, we recommend choosing medium frequency power supply system. Lower electrode adopts full flat locating method, moving along with the Y-axis direction; The left and right side of platform has been equipped with one electrode respectively, and it will move along with the X-axis; Each welding head is equipped with one set of welding power source arranged in a straight line. After loading the work piece, start welding. The platform moves along with the Y-axis direction to the welding position as per preset position program. Then the welding heads move from both sides toward middle and weld this row. After welding this row, moves in Y-axis direction to another row. In the meantime, both sides of the platform work circularly until complete the welding.


This machine can complete loading and fixing the work piece at one time; It can automatically move and weld as per preset location; Electrodes can automatically enter grinding system to repair and maintain the electrodes; It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost. It solves the instable quality and low production efficiency defect of manual job; The maximum flat table size is 2000 x1000mm.








1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


2. Customized Service: We can help the customers to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.


3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.


4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.


5. Quick Delivery: Our company provides just-in-time delivery.


6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue.

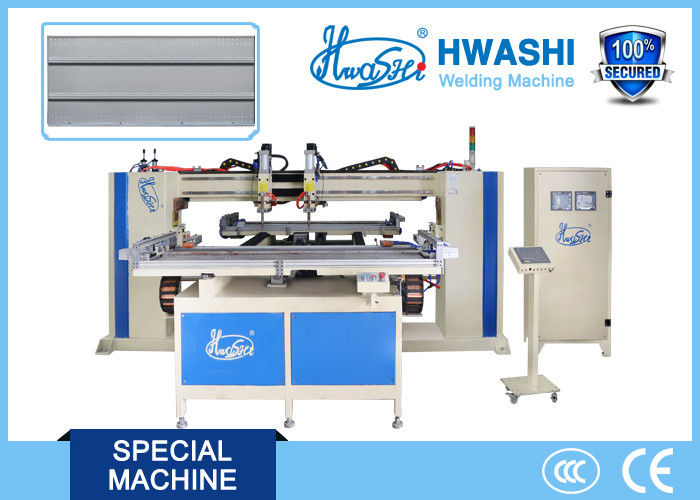

          CNC Automatic Mobile Double-head Welding Machine for  Door Panel 0


                                CNC Automatic Mobile Double-head Welding Machine for  Door Panel 1



   CNC Automatic Mobile Double-head Welding Machine for  Door Panel 2CNC Automatic Mobile Double-head Welding Machine for  Door Panel 3
