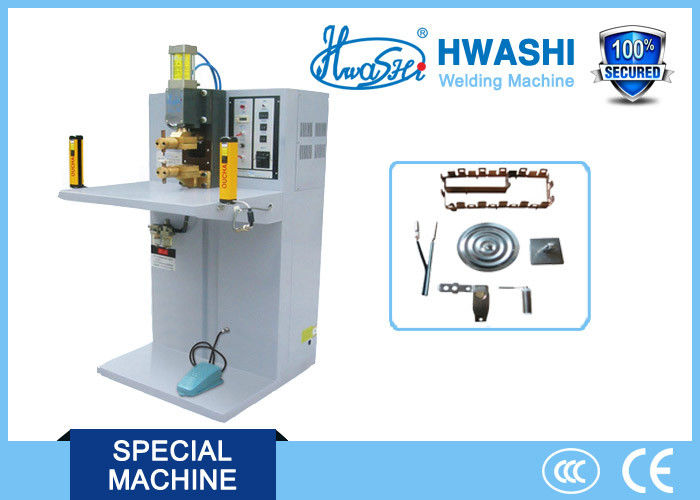

Desk Type Capacitor Spot Welder

Desk Type Capacitor Discharge Welder with Light Curtain Protection Device

SPECIFICATION

APPLICATION

Be able to applied to manufacturing industries like low-voltage apparatus, hardware, household appliances, etc.

FEATURE

1. High speed charge-discharge digital voltage stabilizing circuit. The number of charge-discharge times reaches 124 per minute. (setting as 100V)

2. Quick logical circuit which can ensure the machine will start working only when the discharging voltage reaches the preset data. Under such circumstances, when the machine is conducting high frequency welding, the welding effect will not be influenced when the discharging work does not reach preset data.

3. Digital adjusting stored energy voltage from 0 to 425V. Can be adjusted upper or lower than 1V precisely.

4. Precise digital circuit which can control and stabilize the voltage within ±0.5%.

5. Double overpressure protection circuit which can ensure the charging voltage will not exceed the preset security standard so as to protect the capacitors.

6. Built-in and preset the discharging security time is 0.1s.

7. LCD displayed counter.

8. Simple button digital control panel.

DESCRIPTION

Desk type capacitor spot welder uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time).

Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding. The output of the capacitor discharge spot welder that we produce is from 100WS to 18000WS.

MATERIAL CONFIGURATION

COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
