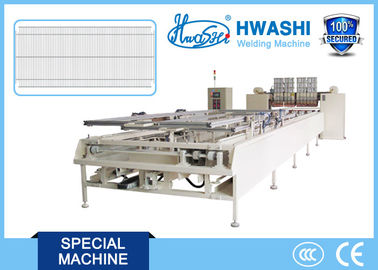

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products

wire welding machinery

wire welding equipment

Shopping Trolley Wire Welding Machinery

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-150Kx2

Contact Us

Request A Quote
Product Details
Product Name:
6-15 Guns Multi-Head Spot Welder For Wire Mesh Of Shopping Trolley / Carts
Application:
Welding Of Shopping Carts Mesh
Size:
2800x2380x1850mm
Weight:
2500kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

样件分割线(2).jpg排焊机

排焊机

排焊机


储能点焊机

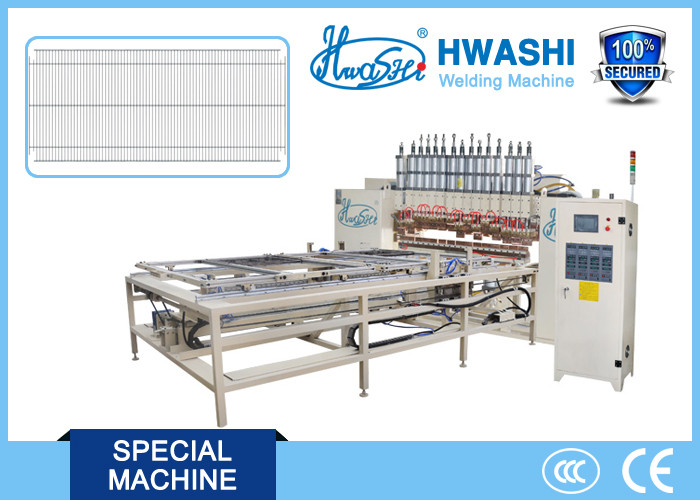

Multi-Head Wire Mesh Automatic Welding Machine



This machine adopts a gantry type welding structure, and can be equipped with more than two sets of welding power sources. Multiple sets of welding heads are placed on the beam, and the distance between the welding points can be adjusted by moving left and right. It is designed with two-way or double-layer material racks. Two sets of feeding mechanisms are cycled automatically For welding, you only need to manually cyclize and take out the workpiece.

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products 9


Design Concept:



1.Adopt the reinforced special design steel structure body with gantry type structure.



2.Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface.



3.Adopt double-layer cylinder as the pressurized source which is control by good quality of imported electromagnetic valve and coordinated with precision-machined linear slide to pressure the electrode tip.



4.Adopt the touch screen as the human-machine interface, Chinese-English input.



5.Be composed of the coding servo motor, precision-finished slide and automatic detecting system.







Parameter:

No. Item WL-SQ-150K
1



Input Voltage



380Vsingle phase
2



Input Current



400A
3



Output Voltage



AC11.6Vx3
4



Max Short Circuit Current



41000Ax3



Application Range:

Suitable for cross welding of multi-point carbon steel, low alloy steel, stainless steel, galvanized, nickel-plated and other alloy wires. It is used in the manufacturing industries of fence nets, shelves, shopping carts, barbecue nets, pet cages, and racks.



DESCRIPTION:

Multiple gun welders can be furnished in many forms. Their design may vary according to the application to be welded and the rate of production required. Most multiple gun welders are dedicated to a specific application, but some may be capable of welding more than one size of a similar configuration workpiece.

It is usually not practical to design a multi-gun welder as a “sponge” to accommodate many applications.








APPLICATION



Continuous welding wire mesh whose width is within 2000mm, length is not restricted.





WIRE MESH WELDING MACHINE OPTIONS

Type

Machine Picture

Basic Description

Advantages& Disadvantages

Application

Model 1

Row Welding Machine

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products 10Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products 11

1. Manual wire loading and welding machine;  2. The number of electrode could be customized according to your requirement.

1. Low in price  2. Suitable for welding small wire mesh 3. Low efficiency

Suitable for 100mm-500mm wire mesh (Need Manual Fixture)

Model 2 Single Row Welding+X,Y axis Automatic Feeder

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products 12

1. Single Welding Electrode; 2. Manual wire loading;  3. X, Y axis automatic feeder and automatic welding

1. Low cost   2. Simple structure and easy assembly  3. Change fixtures for welding different sizes of wire mesh

Suitable for wire mesh within 1000mm

Model 3 Automatic Welding Machine with Single Power Supply System

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products 13

1. Multiple welding electrodes; 2. Manual wire loading;  3. Automatic feeder and automatic welding 4. Single power supply system 5. Only one electrode can work at one time and take turns.

1. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working; 2. Low cost

Suitable for wire mesh whose width is within 1000mm, length is not restricted.

Model 4 Automatic Welding Machine with Double Power Supply System

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products 14

1. Multiple welding electrodes; 2. Manual wire loading;  3. Automatic feeder and automatic welding 4. Double power supply system 5. Two electrodes can work at one time and take turns.

1. Doublelayer feeder, worker can do continuous loading of wires to keep the machine cycle working. 2. High efficiency 3. High cost

Suitable for wire mesh whose width is within 2000mm, length is not restricted.

Model 5 Automatic Welding Machine with Automatic Wire Feeding System

Multi Head Wire Welding Machinery For Wire Mesh Of Shopping Trolley / Carts etc network frame type products 15

1. Multiple welding electrodes; 2. Automatic wire loading system;  3. Automatic feeder and automatic welding 4. Double power supply system 5. Two electrodes can work at one time and take turns.

1. Save labor force  2. High automation level 3. Cycle working  4.High efficiency  6.High cost

Suitable for wire mesh whose vertical length is within 1200mm, while horizontal length is within 2000mm.







COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
