|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||sea worthy wooden package|
|Delivery Time:||7-30 working days after received your payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 sets per month|
|Product Name:||Automatic IBC Tubular Mesh Six-Head Welding Machine||Application:||Welding Of IBC Tank Frame / IBC Tubular Mesh|
|Standard:||CE/CCC/ISO||Service Life:||8-10 Years|
wire welding equipment
IBC Tubular Mesh Welding Machine With Automatic Feeder And Unloading System
|3||Rated Input Current||300A|
|4||Rated Duty Cycle Rate||25%|
|5||Secondary Voltage Adjusting Grade||2|
|6||Max Secondary Floating Voltage||12.5V|
|7||Secondary Max Short Circuit Current||26KA|
|8||Continuous Working Current||20KA|
|9||Welding Transformer Insulation Grade||F|
|10||Welding Machine Pressuring Curves||2 types|
|11||Welding Programs Number||101 types|
|12||Welding Head||6 sets|
|14||Effective Welding Width||1000mm|
|15||Effective Welding Length||4000mm|
|16||Stepping Welding Moving Speed||500mm-1000mm/sec|
|17||Upper Electrode Stroke||80mm|
|18||Lower Electrode Stroke||50mm|
|19||Unloading Feeder Moving Distance||500mm|
|20||Unloading Feeder Lifting Distance||1200mm|
|21||Unloading Feeder Moving Speed||500mm-1000mm/sec|
|22||Unloading Feeder Rotating Angle||900|

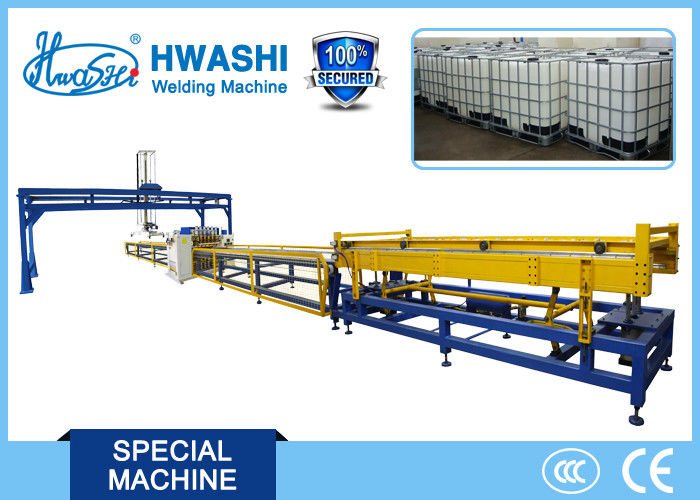

Six-Head Gantry Type Welding Machine WL-SQ-MF-90Kx6 is the special automatic welding machine for welding IBC tank tubular frame. IBC intermediate bulk container is an essential tool in modern storage, liquid transportation. The IBC tank is composed of inner container and metal frame. The metal frame is made of bended tubular mesh.
1. This machine is designed as reinforced gantry structure with the advantage of high rigidity and stable running.
2. The welding power is designed with medium frequency inverter power supply system with the features of electricity and energy saving.
3. The machine is equipped with 6 sets of welding head and 6 sets of power supply systems. The welding current of each single point could be adjusted independently in order to ensure the reliability of welding spot.
4. For the sake of increasing the output efficiency, it is designed as double-layer feeder for cycle running. When one feeder is under welding process, another feeder could be loaded with material.
5. Automatic stepping welding. Servo motor will drive the stepping belt to ensure the accuracy of stepping position.
6. Automatic demolding device: after welding t
7. Automatic unloading device will grab the product via servo motor control. It will move down to grab the welded product and moving to the setting position via servo motor. It helps to reduce labor force and lower labor intensity. It is designed as 90° rotation of unloading feeder for the convenience of transportation of welded product.he product, the demolding cylinder will jet up for preparation of automatic unloading.
Suitable for batch production of IBC stainless steel tubular mesh within 4000x1000mm , etc.
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
Contact Person: Steven Wei
