Fully Automatic IBC Container Tank Tote Frame Welding Machine

Fully Automatic IBC Container Tank Tote Frame Welding Machine

wire welders

wire welding machinery

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Fully Automatic IBC Container Tank Tote Frame Welding Machine
IBC Tank Tote Welding
12 Months
Service Life:
8-10 Years
Wooden Packing
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description


Fully Automatic IBC Container Tank Tote Frame Welding Machine




This machine is special automatic welding for IBC tank wire frame tubular mesh within 4000x1150mm


6-Head Gantry Type Welding Machine is our latest  special machine for welding IBC tank tubular frame. The IBC tank is composed of inner container and metal frame. The metal frame is made of bended tubular mesh.IBC intermediate bulk container is an essential tool in modern storage, liquid transportation.




No. Model WL-SQ-MF90Kx6
1 Input Power Three-phase
2 Rated Capacity 90KVAx6
3 Rated Input Current 300A
4 Rated Duty Cycle Rate 25%
5 Secondary Voltage Adjusting Grade 2
6 Max Secondary Floating Voltage 12.5V
7 Secondary Max Short Circuit Current 26KA
8 Continuous Working Current 20KA
9 Welding Transformer Insulation Grade F
10 Welding Machine Pressuring Curves 2 types
11 Welding Programs Number 101 types
12 Welding Head 6 sets
14 Effective Welding Width 1000mm
15 Effective Welding Length 4000mm
16 Stepping Welding Moving Speed 500mm-1000mm/sec
17 Upper Electrode Stroke 80mm
18 Lower Electrode Stroke 50mm
19 Unloading Feeder Moving Distance 500mm
20 Unloading Feeder Lifting Distance 1200mm
21 Unloading Feeder Moving Speed 500mm-1000mm/sec
22 Unloading Feeder Rotating Angle 900





Design for batch production of IBC stainless steel tubular mesh within 4000x1000mm , etc.

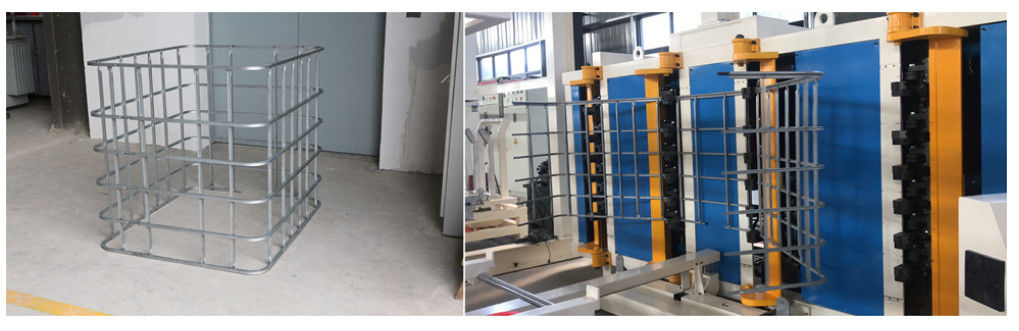

Fully Automatic IBC Container Tank Tote Frame Welding Machine 0

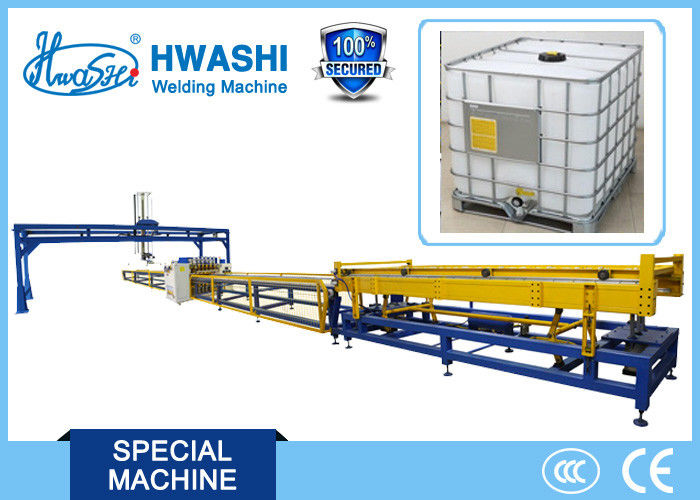

IBC Container Tank Tote Welding Machine, Wire Automatic Welding Machine




1.Adopt silicon controlled from SEMIKRON of West Germany or IXYS of United Stated with high precision and long service life.

2.Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.

3.Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system.

4.Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within±15%.

5.Adopt South Korea SANWO pneumatic components with stable performance.

6.All the electronic components are from Japan Mitsubishi and Omron with ideal service life and performance.

7.The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity.

8.High precision all digital control system effectively resolve the problems of cold joint or loose welding due to the current shunt in projection welding.

9.Strictly comply with CE security standard to design the machine. Lower the accident rate.



Quality Standard

The machine is manufactured according to the following standard.

  • Rated Value and Operation Condition of Electric Resistance Welding Equipment GB/T8366-2008
  • Safety Requirement of Electric Resistance Welding Equipment GB/15578-2008
  • Controller General Technical Specification of Electric Resistance Welding Equipment JB/T10110-2008
  • Fixed Spot or Projection Welding Machine JB/T10101-2000
  • Transformer General Technical Specification of Electric Resistance Welding Equipment JB/T9529-2008
  • QA Inspection Standard of Our Factory HS/040120006




1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.

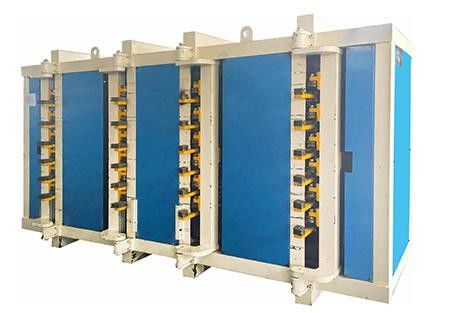

Fully Automatic IBC Container Tank Tote Frame Welding Machine 1

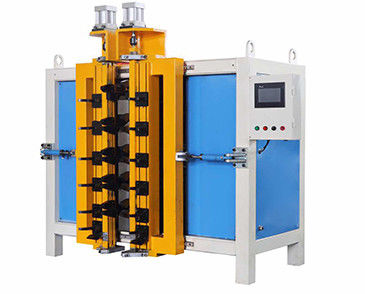

Fully Automatic IBC Container Tank Tote Frame Welding Machine 2
