Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SQ-50K
Contact Us

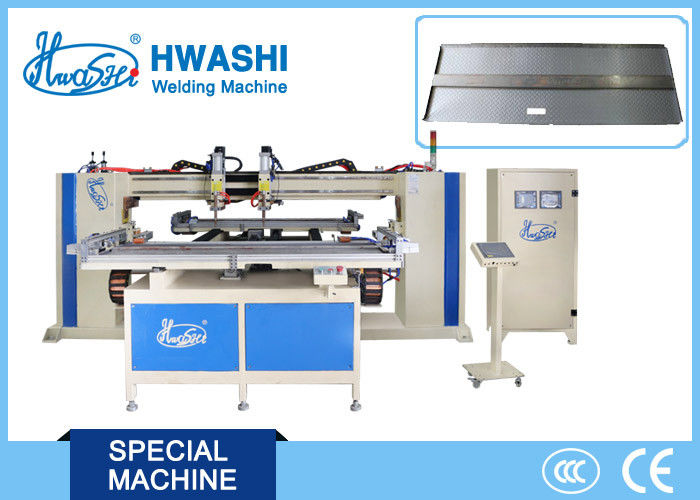

Aluminum Door Plate Spot Welder , Sheet Metal Welding Machine
DESCRIPTION
This machine can complete loading and fixing the work piece at one time; It can automatically move and weld as per present location;Electrodes can automatically enter into grinding system to repair and maintain the electrodes;It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost . It solves the instable quality and low production eficiency defect of manual job.
Features:
1.Adopt the reinforced special design steel C type frame structure body.It adopts reasponable stress center of gravity to ensure the stable intensity of the main body whenconducting fast speed welding. At the meantime, it could provide stress supporting point and working platform for other actions.
2.It is designed with a large flat tabel as the working table. According to the requirement of product, the independent fixture is equipped which will move in Y diection. Each welding spot position will be fixed with jig as as to ensure precision of welding spot and it is easey to assemble and disassemble.
3.Adopt the touch screen from import framous brand as the human-mahcine interface, English input. It can store 30 sets of different model for welding with more than 5000welding spots.
4.Design with electrode grinding device. The grinder is installed at the fixed position. The grinding height will be adjusted via servo motr. Use optical fiber system to detect the height of electrode. It will be enter into grinding process according to the setting program after doing welding for certain number of times. The grinding taper and height are both adjustable. The height tolerance is within ±0.1mm.
SPECIFICATION
Input voltage | 380V thress-phase |
Input Power | 50kvax2 |
Input Current | 150A |
Output Voltage | DC5.5V |
Max.Welding Current | 1500AX2 |
Welidng Model | 101 types |
Max. Memory Position | 5000 |
X Axis effective Width | 850mm |
Y Axis effective Width | 600mm |
Moving Speed | 800mm/sec |
Servo Motor Power | 450W |
APPLICATION
This machine is widely used to weld metal sheet in electronic appliances, automobile and other area..
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here try our best to help you.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
