Kitchen Utensil Stainless Steel Capacitor Discharge Spot Welding Machine for Pan Bottom

Kitchen Utensil Stainless Steel Capacitor Discharge Spot Welding Machine for Pan Bottom

capacitive discharge spot welder

capacitor discharge welder

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Kitchen Utensil Stainless Steel Capacitor Discharge Spot Welding Machine For Pan Bottom
Welding For Pan Bottom
12 Months
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 sets per month
Product Description


Kitchen Utensil Stainless Steel Capacitor Discharge Spot Welding Machine for Pan Bottom




Pot Bottom spot welding machine adopts capacitor to store energy and to release instantaneous current so it can concentrates large current to pass through a small point and achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time).


The output of the capacitor discharge spot welder that we produce is from 100WS to 18000WS. It is especially good for welding metals like bronze, brass, red copper, aluminum, silver and stainless steel, etc.


It can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding. Thus, this type of machine is widely applied to various kinds of industrial production and manufacturing.


Capacitor Discharge Welding Machine Heater Burner Multipoint Spot Welder




1. Wide Application: Be able to weld 8mm of nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.


2. Firm and Good Looking: Firm welding; No black coating on the welding spots so no polishing process is needed; especially suitable for welding those exporting products which have high requirement on good looking.


3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power. With a low cost.




Be able to applied to pot bottom  spot welding.




Model WL-LC-7K
Voltage 380 V 50HZ
Power 12KVA
Energy Storage 4500J
Capacitance 40500uF
Pressurization 1000kg
Electrode Stroke 80 mm
Closure 180-280mm
Platform Distance 250mm
Electrode Distance 320-420mm
Cooling Water

3 Lit/min





1. Adopt SEMIKON from West Germany, IXYS or SCR from United States. High stable control on the magnitude of current.


2. Adopt the energy storage type quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is originated from MARGON or HITACHI; Fast discharge rate. Stable performance.


3. Motorola integrated circuits from United States. Quick response. Stable performance.


4. Pneumatic parts from Japan or Taiwan with reliable performance.


5. All the devices are from imported famous brands with ideal service life and performance.




1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale,         competitive price.


2. Customized Service: We can help to design and develop the welding machine according to your                 requirement. We are flexible and capable Supplier.


3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with         ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life.     100% guarantee test before delivery.


4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional         team is always here willing to be your technical consultant.


5. Quick Delivery: Our company provides just-in-time delivery.


6. Prompt Response to Customers: Your satisfaction is the goal we pursue.


Picture Show

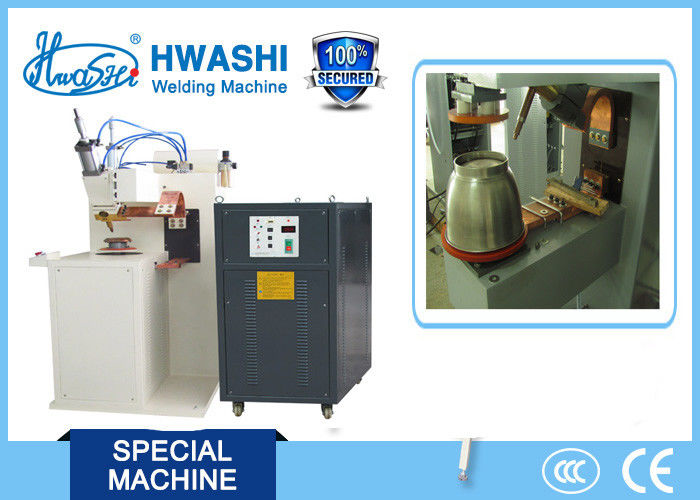

Kitchen Utensil Stainless Steel Capacitor Discharge Spot Welding Machine for Pan Bottom 1
