Automatic Multi-point Wire Fence Steel Wire Mesh Welding Machine

Automatic Multi-point Wire Fence Steel Wire Mesh Welding Machine

wire welding machinery

wire welding equipment

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Automatic Multi-point Wire Fence Steel Wire Mesh Welding Machine
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
sea worthy wooden package
Delivery Time
50 sets per month
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 sets per month
Product Description

Automatic Multi-point Wire Fence Steel Wire Mesh Welding Machine




This machine is composed of gantry type structure, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system. The general welder for welding flat net in the market can only weld the square and rectangle net. However, except for square and rectangle, this machine could be used to weld triangle, circular and other shapes of flat net.




Automatic dual-layer machine interchanges feeding and welding simultaneously.

Configuration allows you to change fixtures quickly and easily.

Perfect for high volume production environments

Microprocessor-based welding control with touch-screen interface makes programming simple.

Service First Policy guarantees superior quality and value backed by LORS machinery.





Application: weld metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack etc. Continuous welding wire mesh whose width is within 2000mm, length is not restricted.




Model WL-SQ-150K×2
Input Voltage two-phase 380V
Input Current 400A
Output Voltage 12V
Max Short Circuit Current 45000A
Welding Effective Width 2000mm
Welding Effective Length not restricted
Feeder Moving Speed 500mm/sec
Upper Welding Cylinder ¢100x100mm
Lower Welding Cylinder ¢160x100mm


  1. Adopt silicon controlled from IXYS of United Stated with high precision and long service life.
  2. Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
  3. Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.
  4. Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.
  5. Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.
  6. Adopt South Korea SANWO pneumatic components with stable performance.
  7. The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.
  8. Strictly comply with CE security standard to design the machine. Lower the accident rate.



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


2. Can custom design and manufacture based on customers' needs.


3. Use the most advanced technology ball screw driving to realize higher precision and efficiency.


4. Key parts use the best quality. Transformer made of copper by ourselves, no spark and excellent welding quality.


5. There are similar stock to show to customers when you come to visit.


6. Quick delivery: 15-30 days as we have spare parts stock.


7. Can do drop shipping: do proper export wood package and arrange shipment for customers.




            Multi Spot Wire Mesh Welding Machine Dual Layer Auto Welding Machine

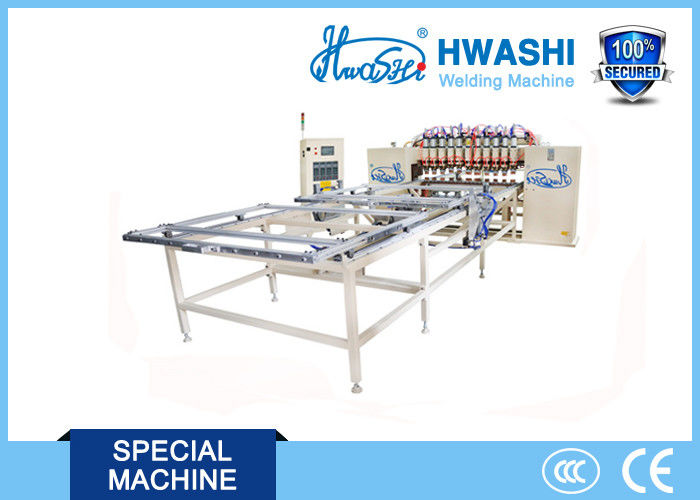

Automatic Multi-point Wire Fence Steel Wire Mesh Welding Machine 1

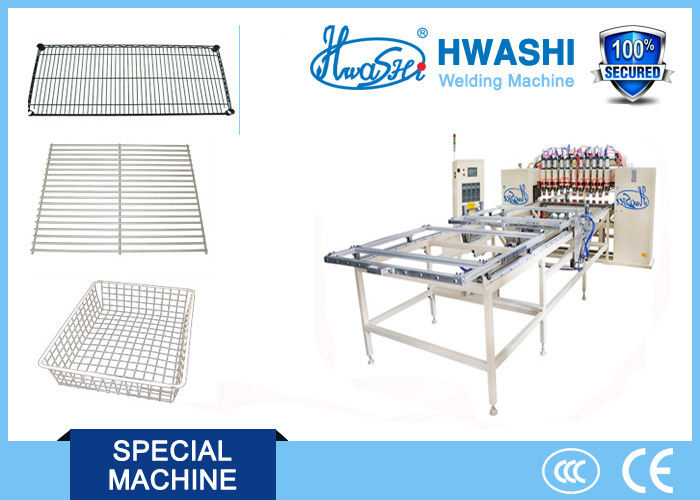

Automatic Multi-point Wire Fence Steel Wire Mesh Welding Machine 2
