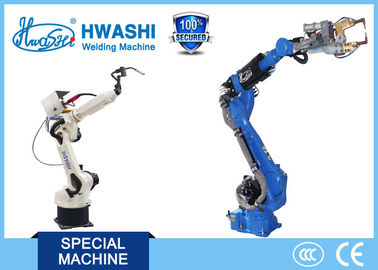

HWASHI Automatic Industrial Robot Arm for Multipoint Sheet Welding

HWASHI Automatic Industrial Robot Arm for Multipoint Sheet Welding

robotic spot welding machine

automatic welding robot

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-RSW165

Contact Us

Request A Quote
Product Details
Product Name:
HWASHI Automatic Industrial Robot Arm For Multipoint Sheet Welding
Application:
Multipoint Welding For Sheet Metal
Size:
600x1300x1700mm
Weight:
170kg
Condition:
New
Warranty:
12 Months
Standard:
CE/CCC/ISO
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

HWASHI Automatic Industrial Robot Arm for Multipoint Sheet Welding



DESCRIPTION



1. New vibration control system for the faster operation.

With the increased axis operation speed and speed reducer rigidity, new vibration control system was developed. By reducing the cycle time, this system realizes increase in productivity.



2. Larger range of motion even equipped with spot gun external cables

Range of motion at R-axis (wrist roll), B-axis (wrist pick/yaw) and T-axis (wrist twist) when they are equipped with external cables for spot gun are expanded. This contributes to increase the number of welding points per manipulator and the productivity is improved.



3. High-density layout is realized by the down-sized and streamlined manipulator



Compared to the conventional model, the width and the installation area have been greatly reduced. With the reduction, higher-density layout is possible and the productivity can be increased.
High-density layout is realized by the down-sized and streamlined manipulator
Width : 625 mm (24.8% reduction) Installation : 34.7% reduction



4. Increased payload and decreased cables

Payload of 165 kg/210 kg while equipped with the spot welding gun external cables is attained.
Large-sized spot welding guns are flexibly mounted.
The number of the power cable is reduced from two to one.
Cabling operation is saved and this will improve the maintainability.





SPECIFICATION

Model

HS-RSW165

DOF

6

Action Mode

Vertical Multi-joint Mode

Effective Load (kg)

165

Motion Range (°)

J1

-180~±180

J2

-60~±76

J3

-147~±90

J4

+360~±360

J5

-125~±125

J6

-360~±360

Max Speed (°/S)

J1

120

J2

97

J3

115

J4

145

J5

145

J6

220

Moving Radius (mm)

893

Max Arm of Force

2702





COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



          HWASHI Automatic Industrial Robot  Arm for Multipoint Sheet Welding 0

               HWASHI Automatic Industrial Robot  Arm for Multipoint Sheet Welding 1

                          HWASHI Automatic Industrial Robot  Arm for Multipoint Sheet Welding 2
