Six Axis 6kg / 8kg / 10kg Robotic Spot Welding For Steel Manhole Cover
DESCRIPTION

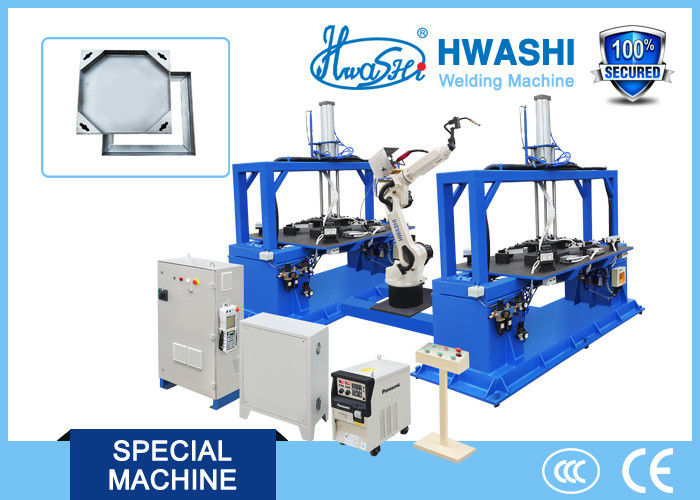

This automatic robot welding system is customized for welding Manhole Cover. There are two automatic positioners one for loading , one for welding.
Welding Process:
1. Firstly, put the Manhole Cover parts inside jig, then it will be clamped in jig.
2. Then start the system,the welding robot will automatically weld the product.
SPECIFICATION
| Name | HS-RAW06 | ||
| Type | Standard Type with integrated torch | ||
| Structure | 6-axis, independent multiple articulation | ||
| Wrist Load | 6kg | ||
| Motion Range | Max Reaching Distance | 1437mm | |
| Min Reaching Distance | 404mm | ||
| Front and Back Motion Range | 1033mm | ||
|
Motion Speed |
Arm | Rotation | 225°/S |
| Lifting Arm | 225°/S | ||
| Stretching | 225°/S | ||
| Wrist | Rotation | 425°/S | |
| Bending | 425°/S | ||
| Reverse | 629°/S | ||
| Repeated Positioning Accuracy | Within ±0.08mm | ||
| Servo Motor | Total Power | 3400W | |
| Brake Specs | All shaft-driven brake | ||
| Installation | Normal | ||
| Weight | About 170kg | ||
APPLICATION
Applied to welding Manhole Cover.
FEATURES:
1. Welding system: Panasonic MIG or TIG welding machine with automatic wire feeding system. Stable performance.
2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.
3. Welding gun system: famous brand TBI welding gun.
4. Welding gun cleaning and wire cutting system: TBI brand.
5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.
6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.
7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.
8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
