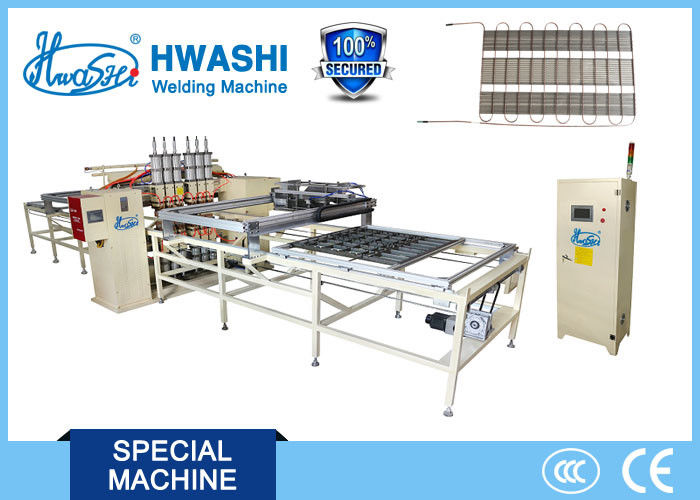

HWASHI Air Conditioner / Refrigerator Wire Tube Condenser Automatic Welding Machine

Basic Information
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC/ISO
Model Number: WL-SQ-MF160Kx2
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 30 working days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Detail Information
Product Name: HWASHI Air Conditioner / Refrigerator Wire Tube Condenser Automatic Welding Machine Application: Welding Of Condenser Wire Mesh
Size: 2700x7300x2220mm Weight: 2860kg
Condition: New Warranty: 12 Months
Standard: CE/CCC/ISO Service Life: 8-10 Years
High Light:

wire welding machinery


wire welding equipment

Product Description

HWASHI Automatic Condenser and Evaportor Wire Welding Machine







Continuous welding condenser or wire mesh within 1300x1000mm.




This condenser welding special machine is customized for welding condenser as well as wire mesh. According to the product specification provided by your company, and in order to increase efficiency and production rate, the machine is designed as two feeding fixture system, automatic mobile system, automatic welding system, and cooling system. Be able to weld two pieces of condenser at the same time so as to increase efficiency. The welding cycle would be 20 sec/pc.



1. Main Body:Because of the dense and horizontal wire rod, the integrated reinforced gantry type of main body is designed. Adopt the vertical stress main body. This machine is made of good quality of thicken steel plate to ensure the intensity and stability of the main body. The machine is equipped with slide guide to provide stress supporting point and working platform for other actions. In order to put two sets of welding fixtures on the machine, the effective welding width is 1300mm while the welding length is 1000mm.



2. Power Source: Adopt medium frequency inverter welding source. Duty cycle rate reaches 50%. The three-phase power supply is under rectifying through a special inverter and converted to 1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.


3.  Row Welding Structure: 6 sets of welding electrodes are installed on the beam and equipped with slide guide that could move horizontally. It is convenient to adjust the distance of welding spot so it is suitable for welding the work pieces with different pinch. The welding program of row welding electrode is flexible and various kinds of welding programs are available. So you could choose to weld from the middle to the sides or from the sides to the middle or single welding. Truly achieve the stable, reliable and good consistency of welding effect.


4. Cooling System: Resistance welder will generate lots of heat during the process of welding. The source of heat may be from: the welding of electrode and work piece or the working of components like silicon controlled and welding transformer. In order to protect the working life of components and control the softening temperature of welding electrode to ensure the reliability of welding, it is designed to adopt the cooling water cycle to take away the heat. The air-cooled type of cooling water is adopted. Through the refrigerating system of cooling-water machine, the temperature of water is forced to cool down to the preset temperature. The purpose of cooling water cycle is achieved through the water pump of cooling-water machine and water storage box.




Model WL-SQ-MF160KX2
Input Power Three-phase four-wire 440V±10%50HZ
Rated Power 160KVA
Primary Current 120A
Rated Duty-cycle 50%
Adjustable Steps of Secondary Voltage 2 Steps
Maximum Secondary Floating Voltage 7.5V
Maximum Secondary Short-circuit Current 40KA
Transformer Insulation Grade Grade F
Network Voltage Floating Compensation

When the rated value of network voltage fluctuates within±10%,

The secondary voltage will be ≤±3%

Welder Pressurized Curves 3 types
Storage of Welding Models 101 types
Effective Welding Length 1000mm
Effective Welding Width 1300mm
Upper Electrode Stroke 80mm
Lower Electrode Adjustable Stroke 30mm
Size of Row Welding 20x80mm































1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



HWASHI Air Conditioner / Refrigerator Wire Tube Condenser Automatic Welding Machine 0


        HWASHI Air Conditioner / Refrigerator Wire Tube Condenser Automatic Welding Machine 1HWASHI Air Conditioner / Refrigerator Wire Tube Condenser Automatic Welding Machine 2
