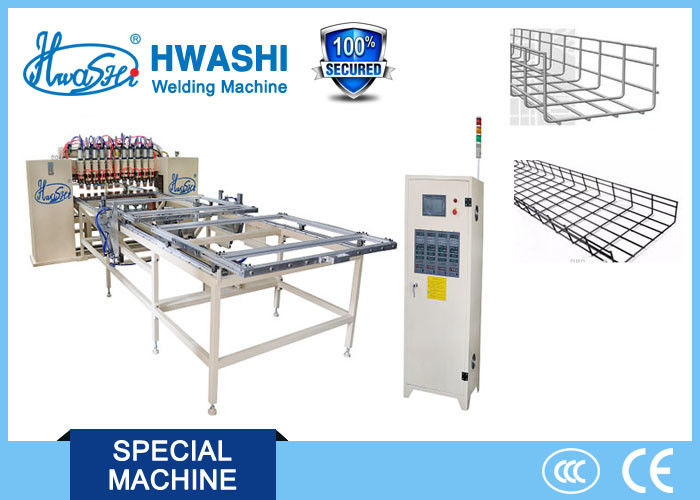

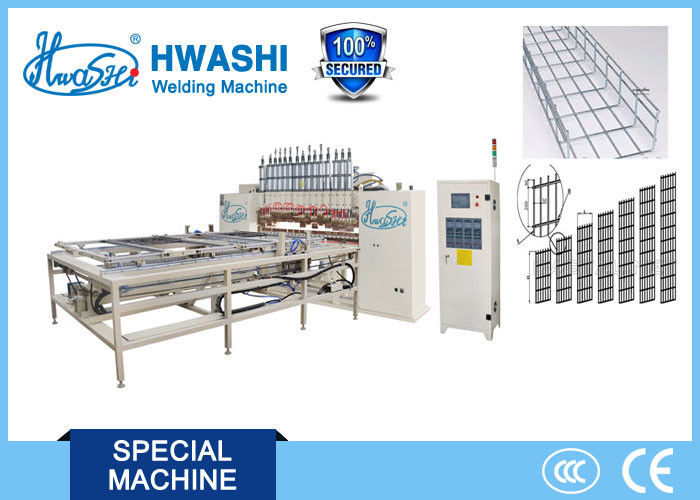

HWASHI Multiple Head Automatic Cable Tray Steel Wire Mesh Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HWASHI |
| Certification: | CE/CCC/ISO |
| Model Number: | WL-SQ-150Kx2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | sea worthy wooden package |
| Delivery Time: | 50 sets per month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Product Name: | HWASHI Multiple Head Automatic Cable Tray Steel Wire Mesh Welding Machine | Size: | 2800x1380x1850mm |
|---|---|---|---|
| Condition: | New | Standard: | CE/CCC/ISO |
| Weight: | 1500kg | Warranty: | 8-10 Years |
| High Light: | wire welders,wire welding machinery |
||
Product Description
HWASHI Multiple Head Automatic Cable Tray Steel Wire Mesh Welding Machine
DESCRIPTION
This machine is composed of gantry type structure, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system. The general welder for welding flat net in the market can only weld the square and rectangle net. However, except for square and rectangle, this machine could be used to weld triangle, circular and other shapes of flat net.
Feature:
Automatic dual-layer machine interchanges feeding and welding simultaneously.
Configuration allows you to change fixtures quickly and easily.
Perfect for high volume production environments
Microprocessor-based welding control with touch-screen interface makes programming simple.
Service First Policy guarantees superior quality and value backed by LORS machinery.
APPLICATION
Application: weld metal wire mesh, goods shelf, guard rail, air conditioner mesh, dish rack etc. Continuous welding wire mesh whose width is within 2000mm, length is not restricted.
SPECIFICATION
| Model | WL-SQ-150K×2 |
| Input Voltage | two-phase 380V |
| Input Current | 400A |
| Output Voltage | 12V |
| Max Short Circuit Current | 45000A |
| Welding Effective Width | 2000mm |
| Welding Effective Length | not restricted |
| Feeder Moving Speed | 500mm/sec |
| Upper Welding Cylinder | ￠100x100mm |
| Lower Welding Cylinder | ￠160x100mm |
MATERIAL CONFIGURATION
- Adopt silicon controlled from IXYS of United Stated with high precision and long service life.
- Adopt integrated circuit from Motorola of U.S. and PLC from Japan SIEMENS with quick response and stable performance.
- Adopt Japan Panasonic intelligent touch screen control system which is installed with automatic bug alarm system. Clear interface, easy operation, and stable performance.
- Adopt self-developed intelligent microcomputer welding control system to control the compensation for the fluctuation of circuit built-in voltage in order to ensure the fluctuation of voltage is within ±15%. Prompt current compensation to ensure the stable welding current of power source.
- Adopt Taiwan TECO servo motor with powerful strength, high precision and stable control.
- Adopt South Korea SANWO pneumatic components with stable performance.
- The transformer adopts Japan high purity silicon steel sheet with good magnetic and electricity conductivity. Less power consumption, more powerful and stable capacity.
- Strictly comply with CE security standard to design the machine. Lower the accident rate.
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Can custom design and manufacture based on customers' needs.
3. Use the most advanced technology ball screw driving to realize higher precision and efficiency.
4. Key parts use the best quality. Transformer made of copper by ourselves, no spark and excellent welding quality.
5. There are similar stock to show to customers when you come to visit.
6. Quick delivery: 15-30 days as we have spare parts stock.
7. Can do drop shipping: do proper export wood package and arrange shipment for customers.
