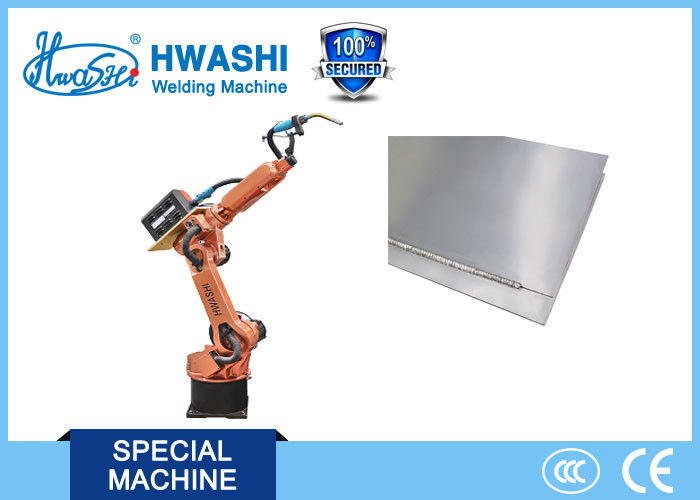

6 Axis MIG Industrial Welding Robots for Aluminum Plate Welding

6 Axis MIG Industrial Welding Robots for Aluminum Plate Welding

robotic spot welding machine

spot welding robots

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
6 Axis MIG Industrial Welding Robots For Aluminum Plate Welding
Welding For Sheet Metal, Automobile Parts, Etc.
12 Months
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

6 Axis MIG Industrial Welding Robots for Aluminum Plate Welding


Applied to loading and unloading, welding, stacking transportation, gelatinization and spraying industry.




This automatic robot can achieve automatic welding process with customized positioner and fixture.


Welding Process:

1. Firstly, put the work piece inside fixture, then it will be clamped in fixture.

2. Then start the machine, and positioner will rotate fixture which is loaded with work piece to welding position;



Name HS-RAW06
Type Standard Type with integrated torch
Structure 6-axis, independent multiple articulation
Wrist Load 6kg
Motion Range Max Reaching Distance 1437mm
Min Reaching Distance 404mm
Front and Back Motion Range 1033mm




Arm Rotation 225°/S
Lifting Arm 225°/S
Stretching 225°/S
Wrist Rotation 425°/S
Bending 425°/S
Reverse 629°/S
Repeated Positioning Accuracy Within ±0.08mm
Servo Motor Total Power 3400W
Brake Specs All shaft-driven brake
Installation Normal
Weight About 170kg




1. Welding system: Panasonic  MIG or TIG welding machine with automatic wire feeding system. Stable performance.

2. Automatic alarm system: if any problem on the wire feeding or gas supply and so on, the welding robot will alarm and the welding will stop until you clear the alarm.

3. Welding gun system: famous brand TBI welding gun.

4. Welding gun cleaning and wire cutting system: TBI brand.

5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.

6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.

7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.

8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.


          6 Axis MIG Industrial Welding Robots  for Aluminum Plate Welding 0


     6 Axis MIG Industrial Welding Robots  for Aluminum Plate Welding 1

6 Axis MIG Industrial Welding Robots  for Aluminum Plate Welding 2

6 Axis MIG Industrial Welding Robots  for Aluminum Plate Welding 3
