Place of Origin:

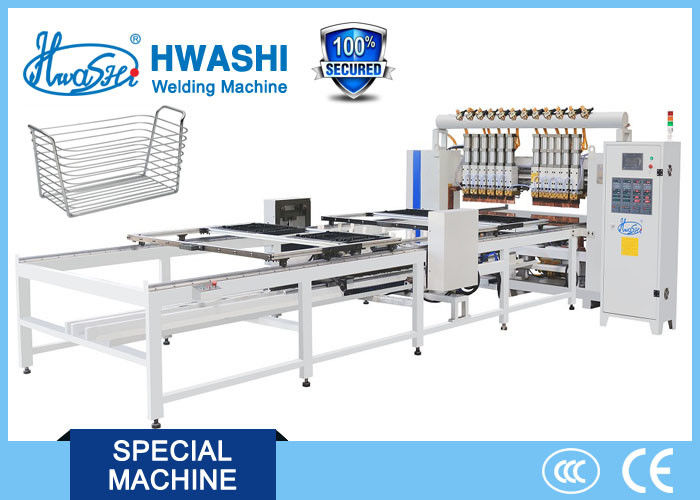

This machine is specially customized to continuous welding Kitchen Wire Tray / Wire Shelf
It is composed of gantry type support, welding transformer, pneumatic drive device, upper and lower electrodes, electrical control system, cooling system, and PLC operation control system.
The worker only needs to put the material into the jigs and press the start button, then the machine will automatically finish welding.
|1||Welding Power||MF DC|
|4||Rated Input Current||200A|
|6||Rated Duty Cycle Rate||25%|
|7||Secondary Voltage Adjustable Steps||2 Steps|
|8||Max. Secondary No Load Voltage||DC7.5V|
|9||Secondary Max. Short Circuit Current||20KA|
|10||Continuous Working Current||18KA|
|11||Welding Transformer Insulation Grade||
|12||Welding Machine Pressure Forcing Curve||2 kinds|
|13||Welding Models Number||101 kinds|
|14||Welding Head Number||8|
|15||Effective Welding Width||600mm|
|16||Effective Welding Length||1500mm|
|17||Feeder Automatic Moving Speed||0.5m/sec|
|18||Upper Welding Cylinder||￠80x2－80mm|
|19||Lower Welding Cylinder||￠160－50mm|

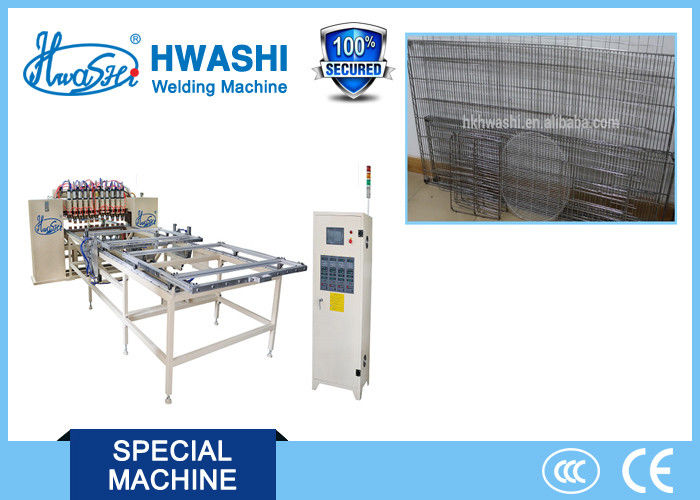

Applicable to produce wire tube condenser, wire mesh,etc.
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
