Mig Tig Welding Machine , Automatic Straight Seam Welder for Pipe/ metal products

Mig Tig Welding Machine , Automatic Straight Seam Welder for Pipe/ metal products

mig tig welding machine

arc welding machine

Place of Origin:

China

Brand Name:

Hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-YZ-1500

Contact Us

Request A Quote
Product Details
Size::
1500*300*1300mm
Weight::
300 Kg
Condition::
New
Service Life: 8:
-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
wooden case
Delivery Time
7 days
Supply Ability
50 sets per month
Product Description

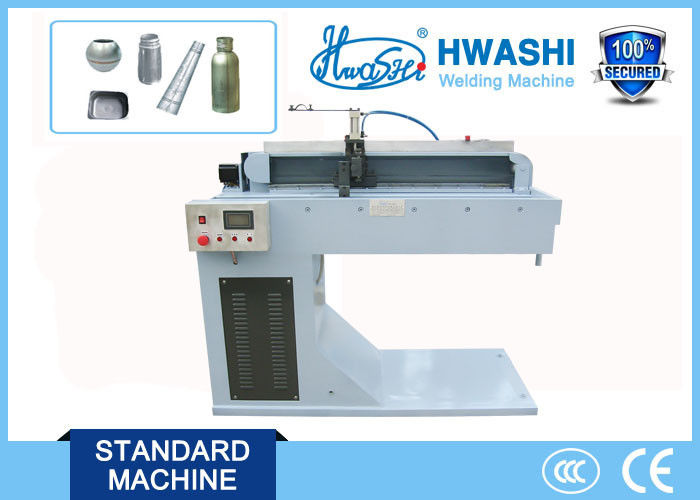

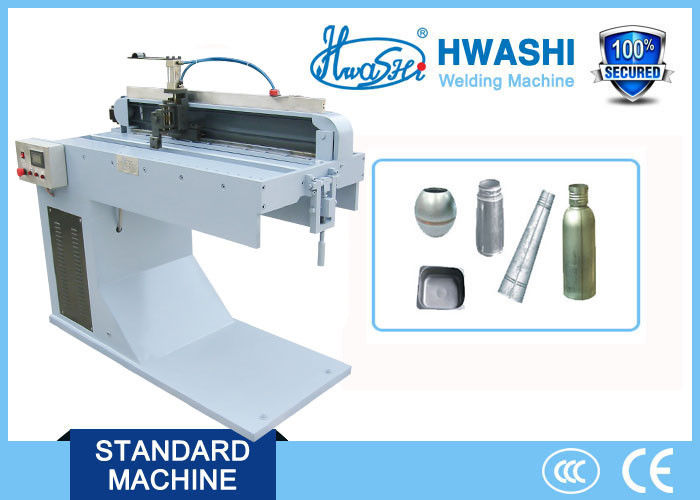

Mig Tig Welding Machine , Automatic Straight Seam Welder for Pipe/ metal products



DESCRIPTION



  • Automatic straight seam welding machine adopts argon arc welding machine as the welding power source. The stepping motor drives the welding gun to conduct constant speed movement. The moving speed and length is set through PLC; use pneumatic pressing plate to press to ensure the stability and consistency of welding; the action program of the whole machine is controlled by PLC; use the touch screen to input data.
  • Maximum work piece length: 300/500/1000/1500/2000mm
  • Welding thickness: 0.3-8.0mm
  • Welding speed: 30-800mm/min



SPECIFICATION



No. Item Data
1 Input Voltage 380V three-phase
2 Input current 15Ax3
3 Min welding thickness 0.2mm
4 Max welding thickness 3mm
5 Work piece max welding length 1500mm
6 Work piece max diameter 1000mm
7 Work piece min diameter 300mm
9 Welding gun moving speed 0.5m/sec





APPLICATION



Pipe making machinary. This machine is widely applicable to seam welding of all kinds of pipe.



COMPETITIVE ADVANTAGE



  • HWASHI machinery is a full service Resistance Welder manufacturer
  • HWASHI ' experienced Design Staff and Applications Staff are available to assist you in selecting the correct Resistance welder and tooling for your needs.
  • When your requirements demand a Multiple-head or Dedicated Resistance welder, call HWASHI. Our many years of experience in developing and producing cost effective, specialized Resistance welders for internationally recognized and new emerging companies, allows us to help you to achieve increased productivity and reduced welding costs within an affordable budget.




Mig Tig Welding Machine , Automatic Straight Seam Welder for Pipe Product











Mig Tig Welding Machine , Automatic Straight Seam Welder for Pipe Product
