Stainless steel sink grinding machine

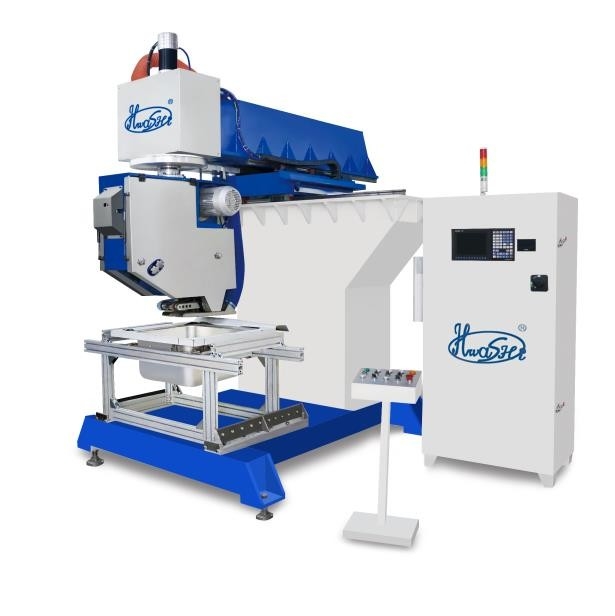

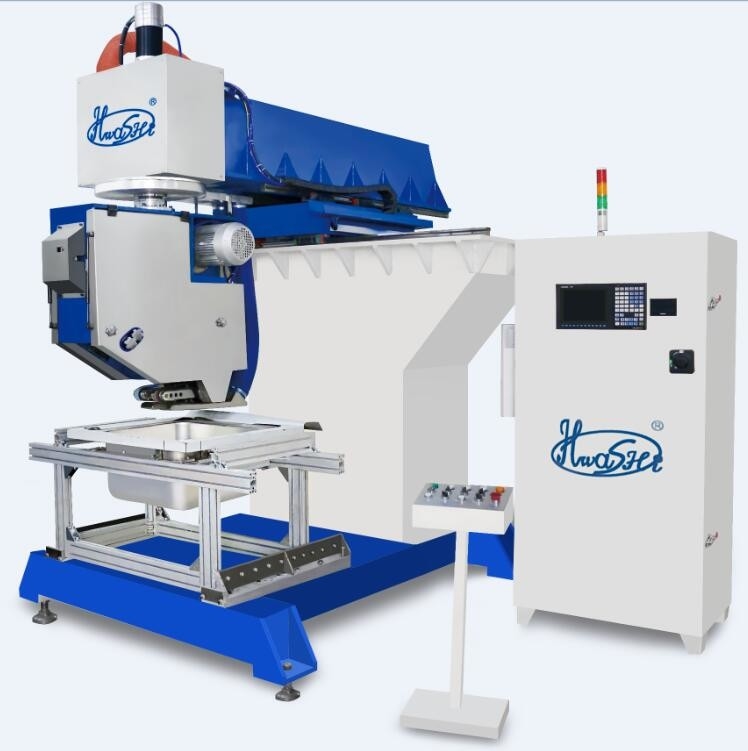

HWASHI CNC Automatic Sink Edge Polishing Machine
This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment. It is designed to use Mitsubishi professional automatic control system. You only need to input the coordinate data of the product and start the machine, the abrasive belt of the machine will conduct grinding and polishing automatically within the track of preset program. The worker only needs to put and take out the sink.
The product will be fixed on the locating mould. The servo motor will drive the X and Y axle to run within the preset data of program. The machine could store 15 types of grinding models. The grinding wheel will move along with X direction and the max moving range is 1220mm while the max moving range of Y direction is 620mm. The Z axle can conduct moving up and down within the range of max 250mm while the A axle can conduct 360ºrotating under the control of servo motor. This machine is suitable for different directions of product.
| Model | WL-AT-PM1200 |
| Input Power | Three-phase 380V±10% 50Hz |
| Rated Capacity | 10KVA |
| Grinding Wheel Diameter | 50mm |
| Abrasive Belt Width | 50mm |
| Abrasive Belt Rotating Speed | 1400-2800mm/min (adjustable) |
| X Axle Moving Range | ≥1220mm |
| Y Axle Moving Range | ≥620mm |
| Z Axle Moving Range | ≥250mm |
| A Axle Moving Range | 360º |
| Rated Air Pressure | 0.8MPa |
| Gas Consumption | 1m3/h |
MATERIAL CONFIGURATION:
| No. | Name | Brand | Place of Origin |
| 1 | Commutation Diode | ABB | Switzerland |
| 2 | Silicon Controlled | SEMIKRON | Germany |
| 3 | IGBT | SEMIKRON | Germany |
| 4 | Shift Phase Control Panel | HWASHI | Self-developed |
| 5 | Welding Control Panel | HWASHI | Self-developed |
| 6 | Display Main Control Panel | HWASHI | Self-developed |
| 7 | Discharge Control Panel | HWASHI | Self-developed |
| 8 | Electric Switch | IDEC | Japan |
| 9 | Main Control Magnetic Valve | SANWO | South Korea |
| 10 | Pressurized Magnetic Valve | SANWO | South Korea |
| 11 | Air Assembly | SANWO | South Korea |
| 12 | Main Control Cylinder | ZC | Zhicheng |
