Place of Origin:
Guangdong China
Brand Name:
HWASHI
Certification:
CE, CCC
Model Number:
WL-AT-PM1200
Contact Us
Video
Video

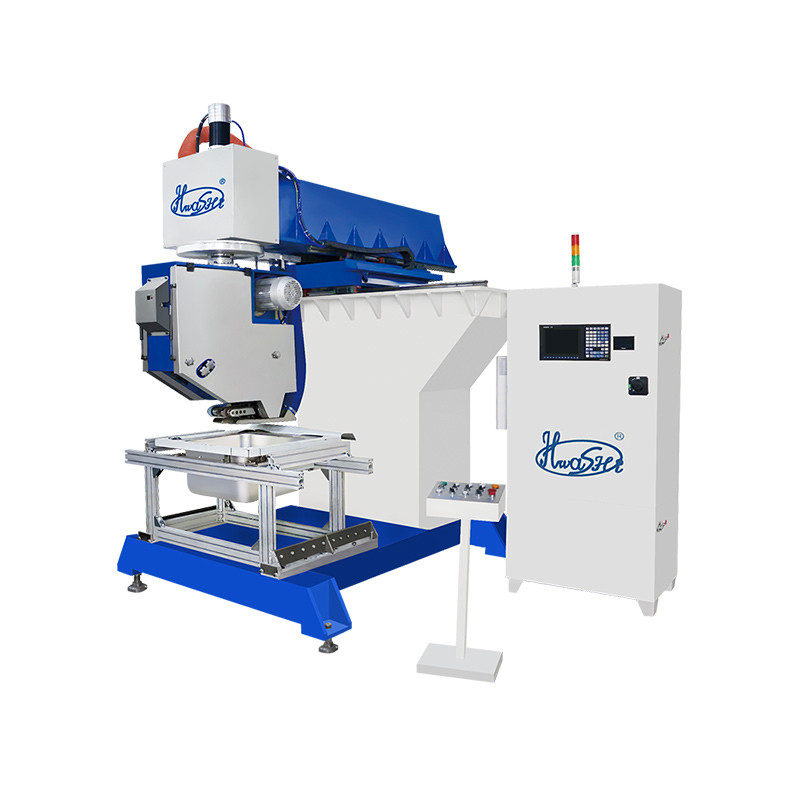

HWASHI Stainless Steel Sink R Corner Sink Automatic Polishing Machine
DETAILED DESCRIPTION
This specialized CNC sink grinding machine operates on the innovative principle of abrasive belt polishing. The electric motor propels the abrasive belt, enabling precision polishing on the welded sink's edge. The polishing process involves two distinct stages. Initially, the coarse abrasive belt efficiently grinds away excess cutting edges and eliminates projection welding spots. Subsequently, the fine abrasive belt is employed for meticulous polishing. The combination of these processes ensures the sink undergoes optimal grinding and polishing treatment.
Distinguished by its utilization of the Mitsubishi professional automatic control system, this machine simplifies operation. By inputting the product's coordinate data and initiating the machine, the abrasive belt seamlessly executes grinding and polishing following a preset program. This automated process allows the worker to focus on placing and retrieving the sink, streamlining the overall operation.
| Special Design Grinding Belt Brown belt (fine abrasive belt) DEERFOS RA631 150# Blue belt (coarse abrasive belt) 577F P80Y The movement and control system will be the same as the sink seam welding machine |
Auto Moving Table and Fixture Structure |

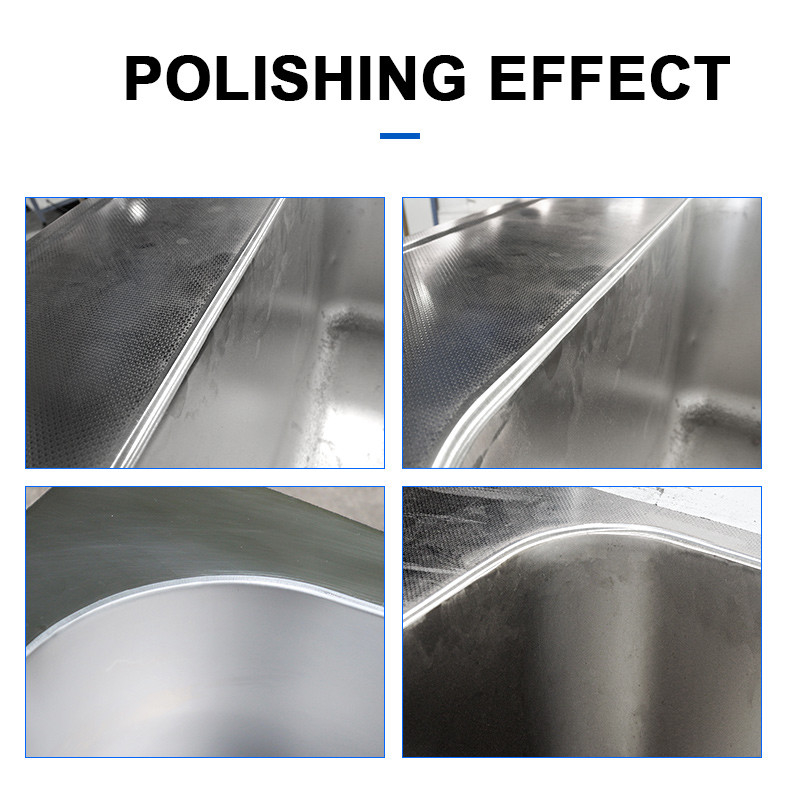

| R-Corner Polishing Effect | Straight Seam Polishing Effect |
The product will be fixed on the locating mould. The servo motor will drive the X and Y axle to run within the preset data of program. The machine could store 15 types of grinding models. The grinding wheel will move along with X direction and the max moving range is 1220mm while the max moving range of Y direction is 620mm. The Z axle can conduct moving up and down within the range of max 250mm while the A axle can conduct 360ºrotating under the control of servo motor. This machine is suitable for different directions of product.
FEATURES
Fully automatic.
Utilizes the principle of seam welder with round welding wheel.
Save labor cost: only one worker required put the sink into the platform and then take it away when finishing the grinding process
Medium frequency inverter power source which is electricity saving.
Enhanced function: memorize 16 sets of welding way . If you need more , we could design for you.
Adopt the professional automatic control system from Mitsubishi
Use the servo motor to drive axis X (locate mould) and axis Y (welding electrode) to operate under the preset procedure of PLC data.
APPLIABLT AREA
Suitable for sink welding within the range of 1600mmx600mm (adjustable according to your needs)
