Iron Automatic Wire Mesh Welding Machine ,Automation Machine

Iron Automatic Wire Mesh Welding Machine ,Automation Machine

wire welders

wire welding machinery

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
20 Head Farm Fence Iron Automatic Wire Mesh Welding Machine With CE / CCC / ISO Certificate
Welding Of Iron Fence Mesh
12 Months
Service Life:
8-10 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Product Description

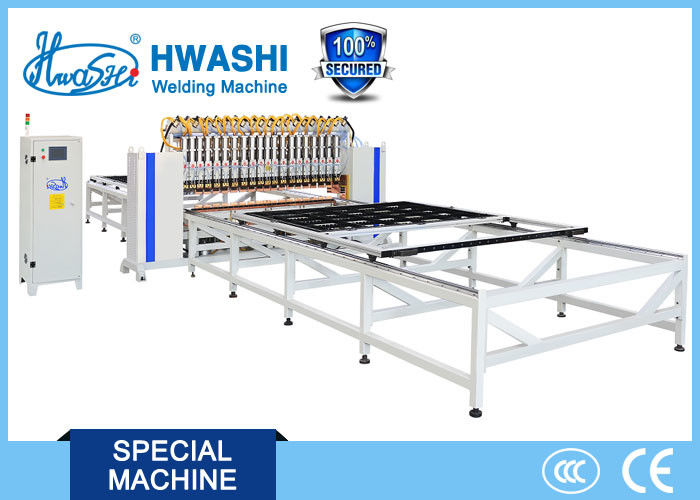

20 Head Farm Fence Iron Automatic Wire Mesh Welding Machine with CE / CCC / ISO Certificate




This machine is customized for steel fence mesh.


When you need this kind of machine, please kind send your wire mesh drawing or picture with below dimensions first clearly showing:


1. wire diameter;

2. the distance between wires;

3. the max length and width of the wire mesh;

4. production capacity;

5. cost budget.


Then we can custom design and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.

When we design, we put the below factors into consideration: welding spot position, welding quality consistence, applicable for welding different wire meshes (adjustable) and production efficiency.


Technical Parameters:

No. Model WL-SQ-MF100Kx2
1 Input Power Three-phase
2 Rated Capacity 100KVA
3 Rated Input Current 300A
4 Rated Duty Cycle Rate 25%
5 Secondary Voltage Adjusting Grade 2
6 Max Secondary Floating Voltage 12.5V
7 Secondary Max Short Circuit Current 26KA
8 Continuous Working Current 20KA
9 Welding Transformer Insulation Grade F
10 Welding Machine Pressuring Curves 2 types
11 Welding Programs Number 101 types
12 Welding Head 10sets
14 Effective Welding Width 1400mm
15 Effective Welding Length 2000mm
16 Stepping Welding Moving Speed 500mm-1000mm/sec
17 Upper Electrode Stroke 80mm
18 Lower Electrode Stroke 50mm





Wire mesh for furniture, wire shelving, industrious mesh, grill, shopfitting, Mesh Decks, Shop Fittings Products, Pallet Cages, Display Equipment, Stillage Mesh, Box Trailer Sides, Box pallet, Display stand, Storage shelving, Material containers, Tool racks, Storage and wareshousing.



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO 9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.


          Iron Automatic Wire Mesh Welding Machine ,Automation Machine 0   Iron Automatic Wire Mesh Welding Machine ,Automation Machine 1

Iron Automatic Wire Mesh Welding Machine ,Automation Machine 2

Iron Automatic Wire Mesh Welding Machine ,Automation Machine 3

Iron Automatic Wire Mesh Welding Machine ,Automation Machine 4
