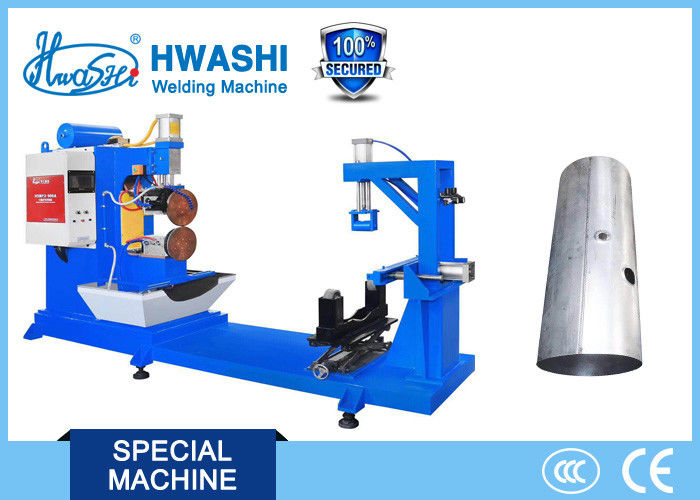

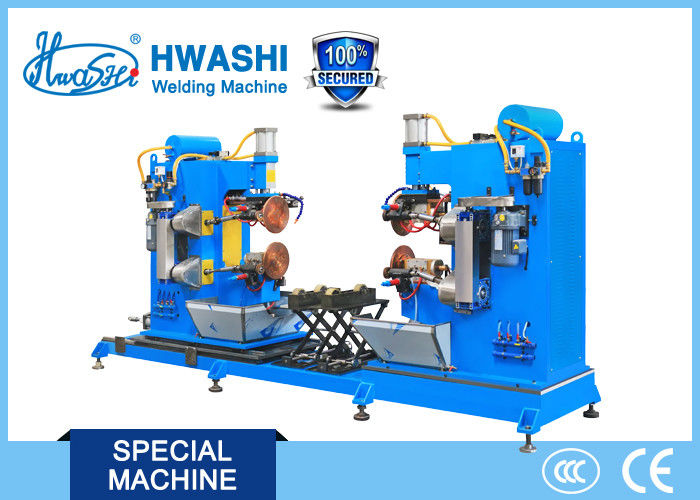

HWASHI Oil Tank Roller Seam Welder

HWASHI Oil Tank Roller Seam Welder

HWASHI Oil Tank  Roller Seam Welder
HWASHI Oil Tank  Roller Seam Welder
HWASHI Oil Tank  Roller Seam Welder
Product Details:
Place of Origin: China
Brand Name: HWASHI
Certification: CE/CCC\ISO
Model Number: WL-FS -200K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: sea worthy wooden package
Delivery Time: 30 working days after received your deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: HWASHI Oil Tank Roller Seam Welder , Industrial Gas Tank Seam Welding Machine Application: Suitable For Different Size Of Oil Tank And Water Tanks.
Size: 2900x11450x1900mm Weight: 1500kg
Condition: New Service Life: 8-10 Years
High Light:

160KW Roller Seam Welder


0.6MPa Roller Seam Welder


40000A Seam Welding Machine

HWASHI Oil Tank Roller Seam Welder , Industrial Gas Tank Seam Welding Machine




Model WL-FS-200K WL-FS-MF160K
Input Voltage 380V±10% 50Hz 380V±10% 50Hz
Input Power 200KW 160KW
Max Short Circuit Current 38000A 40000A
Rated Duty Cycle Rate 25% 50%
Welding Stored Models 16 types 101 types
Electrode Pressure 9kN(I),1.8kN(II) 9kN(I),1.8kN(II)
Rated Bleed Pressure 0.6MPa 0.6MPa
Gas Consumption 5m3/h 5m3/h
Water Source Pressure 0.2Mpa 0.2Mpa
Cooling Water Consumption 200L/H 200L/H
Welding Wheel Diameter 200mm 200mm
Welding Wheel Width 3mm 3mm
Welding Wheel Rotate Speed 800-4000mm/min (adjustable) 800-4000mm/min (adjustable)
Welding Wheel Throat Depth Distance 1000mm 1000mm
Upper and Lower Welding Wheel Distance 100mm 100mm
Feeding Rack Rotate Speed 500-1000mm/min (adjustable) 500-1000mm/min (adjustable)




When welding, welding pressure, between two welding wheel spin welding wheel drives the weldment and electricity, welding current by welding and local heating, forming successively overlapping to form a continuous weld joint and realize the permanent welding.Light reaction for casing, such as automobile, motorcycle fuel tank; Barrel, such as cans, and sheet forming artifacts, such as wheels, seam welding of muffler, radiator, etc.


Adopt 200KVA resistance welding special transformer energy as welding power supply. Output current is above 34000A when the duty cycle rate is 25%. Executed standard is GB/15578-2008, magnetic permeability of forced temperature control water cooling silicon steel sheet is above 1200GS, special water cooling and subprime loop, ensuring constant and powerful welding current, providing guarantee for high quality welding spot.




Roll seam welding is widely applied to welding of differnt size of oil tanks, sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile. Can customzied accoridng to your product size and requirement.





1. Adopt intelligent microcomputer single piece controller which achieve pure digital setting. Online computer programming, LED digital display, stable performance, convenient modification of the program online.


2. Adopt intelligent microcomputer control welding system. When the voltage fluctuates, it will compensate the welding current automatically to ensure the stability of welding.


3. Adopt digital circuit control; select the components from famous factories in the world to ensure the equipment could operate steadily in the long run.


4. Adopt SEMIKRON from West Germany, IXYS and IR silicon controlled from United States. High precision, long operating life, achieve high stability control of the magnitude of current.


5. The transmission tile axis adopts the latest mercury conductive technology from abroad. State-of –the-art technology with good performance in transmission and conductivity.


6. Welding roll wheel adopts the alloy copper material from Japan. High rigidity, good conductivity.


7. The transformer adopts the high pure silicon steel sheet from Japan, good performance in magnet and electricity conductivity. Low consumption of electricity. Stronger and more stable power.


8. Welding mold and the connection of the whole machine uses the mosaic connection. Easy to be assembled and disassembled.


9. AC pulse, secondary rectifying and three-phase medium frequency type of welding power source are available.



HWASHI Oil Tank  Roller Seam Welder 0

HWASHI Oil Tank  Roller Seam Welder 1

HWASHI Oil Tank  Roller Seam Welder 2

HWASHI Oil Tank  Roller Seam Welder 3

HWASHI Oil Tank  Roller Seam Welder 4


1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
